GPS Antennas

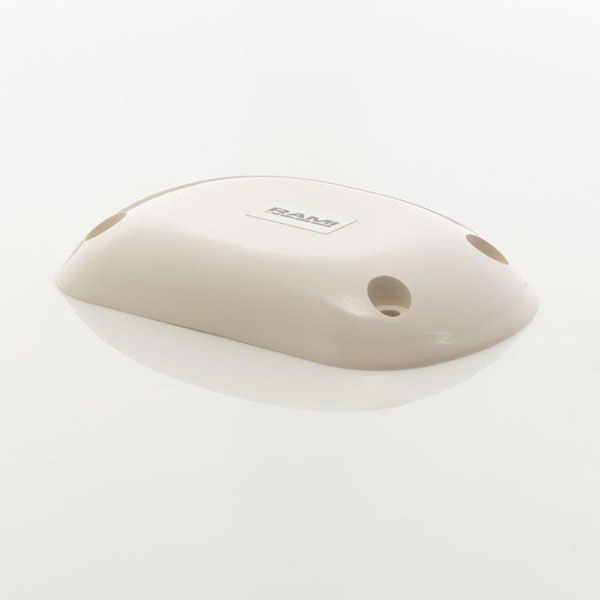

TA70

The TA70 GPS antenna has been produced in conjunction with RAMI to ensure optimum performance with all Trig GPS position source products. The TA70 provides you with a fully certified TSO-C190 antenna, compatible and proven with Trig transponders and supported by Trig's free ADS-B STC program.

GA 57X

Screw Mount, ARINC 743 Footprint

CI-428-200

Comant’s ComDat GPS WAAS antenna designed specifically to meet the GPS WAAS Gamma 3 specificatons required by the Garmin G1000 system. Not compatible with portable GPS receiver units.

CI-401-220

Frequency 1575.42 MHz 26dB Gain
Comant’s ComDat stand-alone GPS antenna with TNC connector. Matches the standard ARINC footprint found on many twins and business jets.

GA 56

This stud-mount version of the GA 56 low-profile antenna provides excellent reception for your panel-mount unit. TSO'd to C129 Class A-1. Comes with hardware.

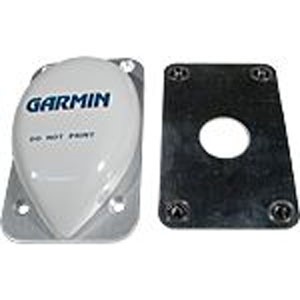

GA 56 Flange Mount

This flange-mount version of the GA 56 low-profile antenna provides excellent reception and is easy to install. TSO'd to C129 Class A-1. Comes with hardware and flange mount.

GA 36

This external GPS antenna is suitable for all WAAS panel-mount GPS systems with an ARINC 743 footprint. It provides excellent reception and attaches through the fuselage via screw mount.

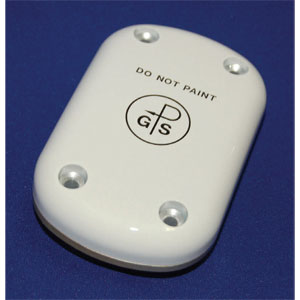

AT2300-326

The AT2300-326 is a combination GPS antenna and XM satellite receiver antenna allowing you to replace an existing GPS antenna with a dual purpose antenna.

GA 60

GA 61A

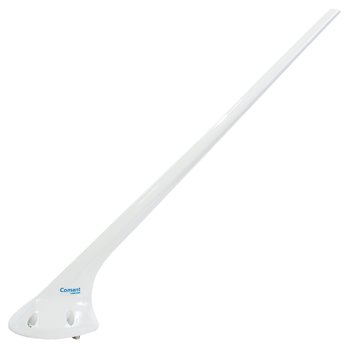

CI-2580-200

The CI2580-200 ComDat VHF/GPS antenna is designed meet specific GPS WAAS Gamma 3 requirements of the Garmin G1000 system. This ComDat antenna provide 80 dB of VHF harmonic suppression which allows VHF and GPS operation in one radome without the use of in-line filters. This antenna has passed the demanding direct effects of lightning environmental testing. The Gamma 3 WAAS allows for primary navigation using GPS for all phases of flight including precision LPV approaches.

CI-2480-200

The CI 2480-200 antenna combines both GPS and VHF functions in a single footprint. It features a 4-hole mounting pattern with same dimension as popular VHF antennas and provides a TNC connection for GPS and a BNC connection for VHF. While providing 80 dB of VHF harmonic suppression, the CI 2480-200 allows for VHF and GPS operation in one radome without the installation of in-line filters.

TA50

A TA50 GPS antenna and a TN72 together is a cost effective way to turn a Trig Mode S transponder into an ADS-B Out device. The TA50 is uncertified and has been performance tested with the TN72 to ensure trouble free operation. It is suitable for use in experimental, light sport aircraft and gliders and where minimal space is available and is supplied with instructions and a permanent mounting sticky pad.

KA 96
