DME-Transponder Antennas

DME-Transponder antennas from Comant, RA Miller, TED and Aeroantenna Technology.

104-12

Monopole Transponder/DME Antenna TED Part #: 104-12

$39.00

The 104-12 transponder antenna is a mono-pole antenna that has a top loaded sphere which creates a factor of reliability and safety for a shorter antenna. This antenna offers a voltage standing wave ratio of 1.2:1 at 1,090 MHz and less than 2:1 at 1,030 MHz when connected with a 50Ω coaxial transmission line. The 104 series antennas feature an omni-directional, vertical-polarize radiation pattern when mounted to the underside of the aircraft.

CI-101

Transponder Stub Antenna Comant Part #: CI-101

$129.00

The CI 101 is a top loaded stub, monopole, transponder antenna with a mechanically captivated radiator machined from solid brass for impact resistance. Contact power is made from beryllium copper, and metallic parts are plated with bright nickel for corrosion protection. Mounts through a single 0.6-inch diameter hole.

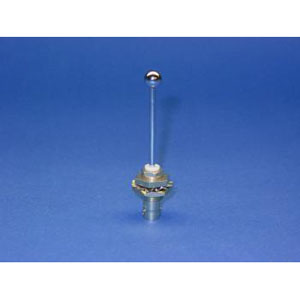

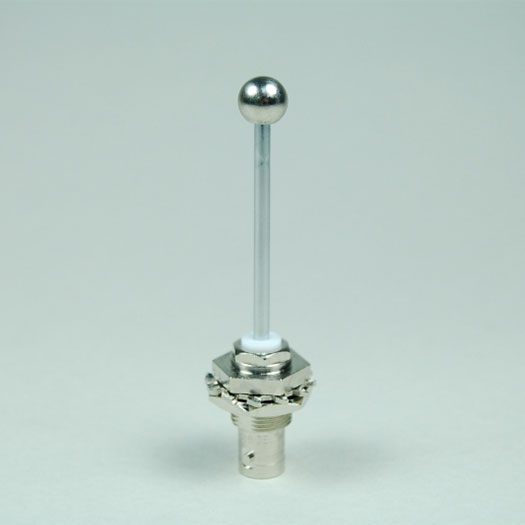

AV-22

Transponder Antenna RA Miller Part #: AV22

$99.00

This antenna is a direct replacement for the CI 101. The AV-22 is a transponder antenna which utilizes a "BNC" connector that allows for a smaller mounting hole. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.41 lb @ 250 mph.

104-17

Monopole Transponder Antenna | 978 MHz TED Part #: 104-17

$39.00

The 104-17 transponder antenna is a mono-pole antenna that has a top loaded sphere which creates a factor of reliability and safety for a shorter antenna. This antenna offers a voltage standing wave ratio of 1.2:1 at 1,090 MHz and less than 2:1 at 1,030 MHz when connected with a 50Ω coaxial transmission line. The 104 series antennas feature an omni-directional, vertical-polarize radiation pattern when mounted to the underside of the aircraft.

CI-305

DME/Transponder Antenna Comant Part #: CI-305

$419.00

The CI-305 is a miniature, high-speed, DME transponder antenna. With a height less than 2.75 inches, the CI-305 features a very low drag frontal profile. This strong and lightweight antenna has a four-hole external mounting pattern and operates on 960 MHz to 1225 MHz.

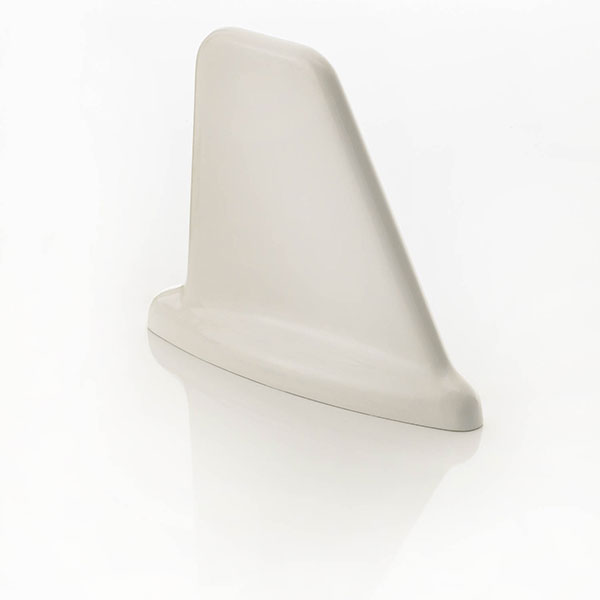

AV-74

DME/Transponder Blade Antenna RA Miller Part #: AV74

$148.00

This antenna is a direct replacement for the CI 105. The AV-74 is a broadband blade type antenna for transponder or DME application. The antenna housing is constructed of an acrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt.

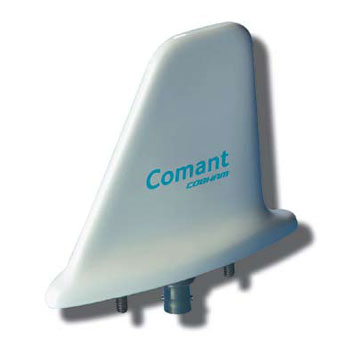

CI-105

DME/Transponder Antenna (960-1220 MHz) Comant Part #: CI-105

From $205.00

The CI 105 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has a standard two stud mounting configuration.

CI-105-3

DME/Transponder Antenna Comant Part #: CI-105-3

$549.00

CI-105-3 is specifically designed for external applications using a three hole flange mounting, and includes a BNC connector.

CI-105-9

DME/Transponder Antenna (960-1220MHz, 1025-1150MHz) Comant Part #: CI-105-9

$419.00

Comant's CI 105-9 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell. Used in single and twin engine piston aircraft.

AT130-6

DME/Transponder Antenna AeroAntenna Technology Part #: AT130-6

This lightweight, high speed, all metal 960 to 1220 MHz antenna is suitable for installation on all piston, turboprop, and turbine airframes including Air Transport Category aircraft. It is ideal for aircraft with Mode S transponders and is approved under TSO C66c and ETSO 2C66b.
