ANTENNAS

CI-108

Designed for high-performance aircraft applications. Suitable for either top or bottom mounting. Solid Polyurethane construction for strength, reliability and durability. White Polyurethane finish is Skydrol and rain erosion resistant.

CI-109

Exhibits excellent electrical characteristics and incorporates an aerodynamically shaped mounting base and radiator housing that matches the styling of the communication antennas used on the 1968-72 single engine Cessnas.

TA70

The TA70 GPS antenna has been produced in conjunction with RAMI to ensure optimum performance with all Trig GPS position source products. The TA70 provides you with a fully certified TSO-C190 antenna, compatible and proven with Trig transponders and supported by Trig's free ADS-B STC program.

CI-158C

Available models: CI-158C and CI-158C-2.

"V" Dipole VOR/Glide Slope Antenna with detachable elements mounts on top of the vertical fin stabilizer for most single engine general aviation aircraft. RF design similar to the CI-157P.

GA 57X

Screw Mount, ARINC 743 Footprint

CI-119

Frequency 118-137 MHz
Designed for large single or twin-engine aircraft. The antenna assembly enclosed in an aerodynamically shaped, injection molded polyester glass shell with internal components foamed in place for mechanical integrity. Reduced height convenient for mounting to the underside of an aircraft. The 119 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.

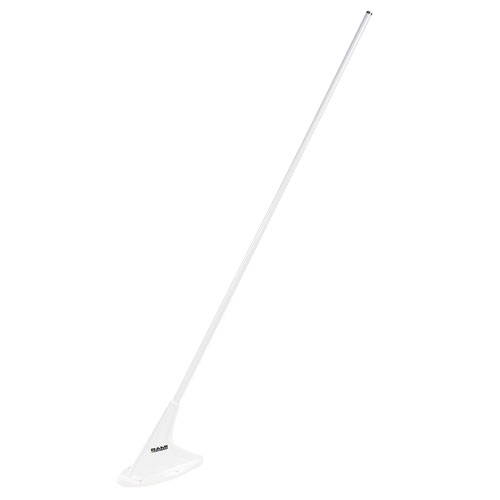

AV-10

This antenna is a direct replacement for the CI 121. The AV-10 is designed for high-performance aircraft applications. It exhibits excellent electrical characteristics and incorporates an efficient aerodynamic 4-bolt mounting base. The antenna essentially matches the styling of the communication antennas currently used on most singles and light twins.

CI-121

Similar to the CI-109, the CI-121 is smaller in diameter and lighter at only 0.5 pounds. Features a tapered glass laminate housing and die-cast aluminum base. Offers standard mounting and appearance to many Cessna communication antennas.

AV-520

The AV-520 is a “V” style VOR/LOC/GS antenna utilizing detachable painted stainless steel elements and internal balun transformer. The antenna is rated at speeds up to 350 mph and altitudes up to 50,000 feet. It is a direct replacement for the CI 159C.

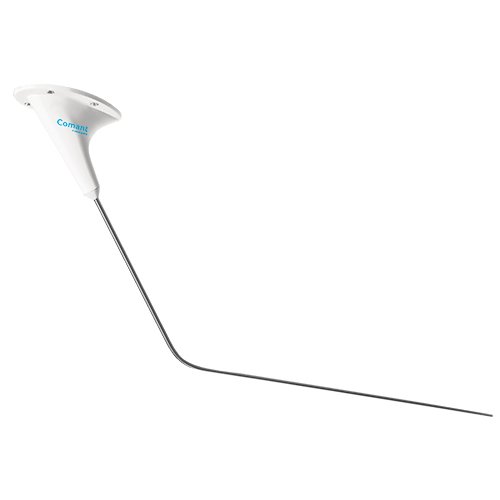

CI-122

Designed specifically for mounting to the underside of an aircraft providing excellent radiation coverage for air-to-ground communications. Bent configuration makes it ideally suited for helicopters and low wing aircraft.

AV-17

This antenna is a direct replacement for the CI 122. The AV-17 is designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and is low in profile. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft.

CI-139

Piper compatible mounting version of the CI-119 with respect to the mounting hole pattern and RF connector location. The CI-139 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.

AV-22

This antenna is a direct replacement for the CI 101.  The AV-22 is a transponder antenna which utilizes a "BNC" connector that allows for a smaller mounting hole. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.41 lb @ 250 mph.

104-12

The 104-12 transponder antenna is a mono-pole antenna that has a top loaded sphere which creates a factor of reliability and safety for a shorter antenna. This antenna offers a voltage standing wave ratio of 1.2:1 at 1,090 MHz and less than 2:1 at 1,030 MHz when connected with a 50Ω coaxial transmission line. The 104 series antennas feature an omni-directional, vertical-polarize radiation pattern when mounted to the underside of the aircraft.

CI-101

The CI 101 is a top loaded stub, monopole, transponder antenna with a mechanically captivated radiator machined from solid brass for impact resistance. Contact power is made from beryllium copper, and metallic parts are plated with bright nickel for corrosion protection. Mounts through a single 0.6-inch diameter hole.

104-17

The 104-17 transponder antenna is a mono-pole antenna that has a top loaded sphere which creates a factor of reliability and safety for a shorter antenna. This antenna offers a voltage standing wave ratio of 1.2:1 at 1,090 MHz and less than 2:1 at 1,030 MHz when connected with a 50Ω coaxial transmission line. The 104 series antennas feature an omni-directional, vertical-polarize radiation pattern when mounted to the underside of the aircraft.

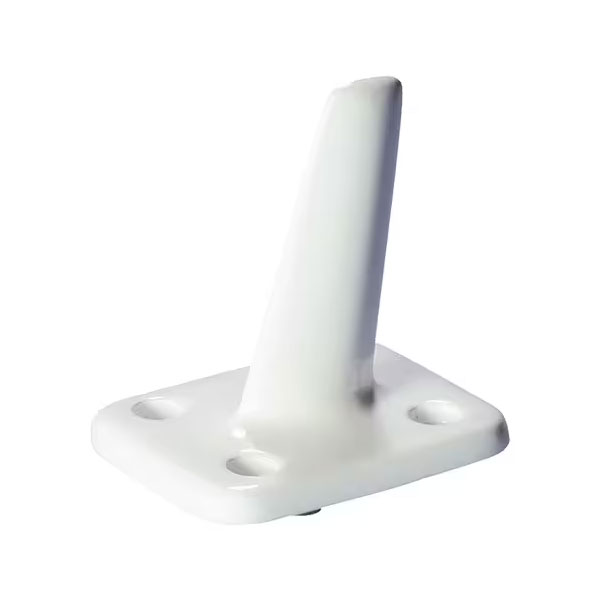

CI-305

The CI-305 is a miniature, high-speed, DME transponder antenna. With a height less than 2.75 inches, the CI-305 features a very low drag frontal profile. This strong and lightweight antenna has a four-hole external mounting pattern and operates on 960 MHz to 1225 MHz.

CI-105

The CI 105 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell and has a standard two stud mounting configuration.

AV-74

This antenna is a direct replacement for the CI 105. The AV-74 is a broadband blade type antenna for transponder or DME application. The antenna housing is constructed of an acrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt.

CI-105-3

CI-105-3 is specifically designed for external applications using a three hole flange mounting, and includes a BNC connector.

CI-105-9

Comant's CI 105-9 is a broadband and rugged antenna designed for DME or transponder use. The antenna assembly is encased in a glass reinforced polyester molded shell. Used in single and twin engine piston aircraft.

CI-428-200

Comant’s ComDat GPS WAAS antenna designed specifically to meet the GPS WAAS Gamma 3 specificatons required by the Garmin G1000 system. Not compatible with portable GPS receiver units.

CI-401-220

Frequency 1575.42 MHz 26dB Gain
Comant’s ComDat stand-alone GPS antenna with TNC connector. Matches the standard ARINC footprint found on many twins and business jets.

GA 56

This stud-mount version of the GA 56 low-profile antenna provides excellent reception for your panel-mount unit. TSO'd to C129 Class A-1. Comes with hardware.
