Garmin TXI System Price Quote System

Is a G500 or G600 already installed in the aircraft?

Yes No

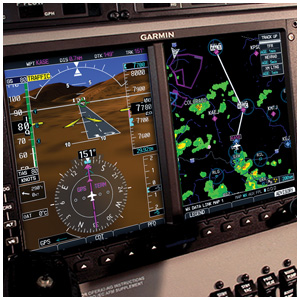

For a limited time only, Garmin is offering a trade-in program for original G500 and G600 displays, allowing customers to upgrade to the new 10.6" G500 TXi or 10.6" G600 TXi flight displays while utilizing the existing system sensors.

Which type of display is currently installed?

G600 G500

To be eligible for Garmin's TXi upgrade promotion, the currently installed GDU 620 displays must be warranty registered, and must be functional and flightworthy. This trade-in offer is only valid when purchasing a 10.6" TXi flight display (the 7" display is not included in the promotion).

How many displays are currently installed in the aircraft?

SINGLE DUAL

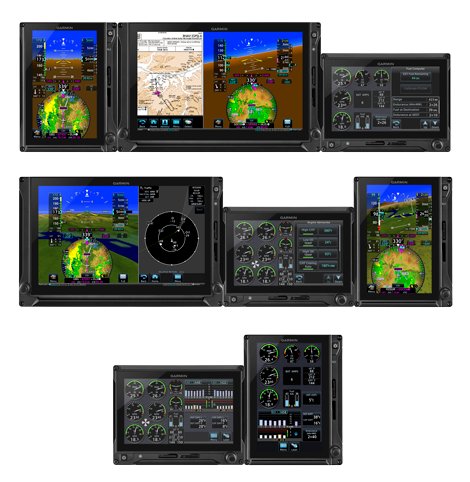

From a single display to a full-suite installation comprising up to 4 displays in your panel, the modular building block concept of the TXi series supports an impressive array of PFD/MFD/EIS functions and formats. So it's easy to scale a system that perfectly fits your panel, your mission and your price range.

Please select the display sizes and quantities that you are looking for:

10.6" Landscape 0 1 2

7" Portrait 0 1 2 3

The versatile 7" display can be used in a variety of configurations to fit your panel space and avionics budget. It can serve as part of a multi display system or as a dedicated stand-alone PFD, MFD or EIS display. The large 10.6" TXi series touchscreen can accommodate PFD and MFD capabilities as well as optional engine instrumentation, all in 1 split-screen format positioned directly in the pilot's primary field of view. The display area is more than 20% larger than earlier-generation G500/G600 series displays designed with side-by-side 6.5" screens.

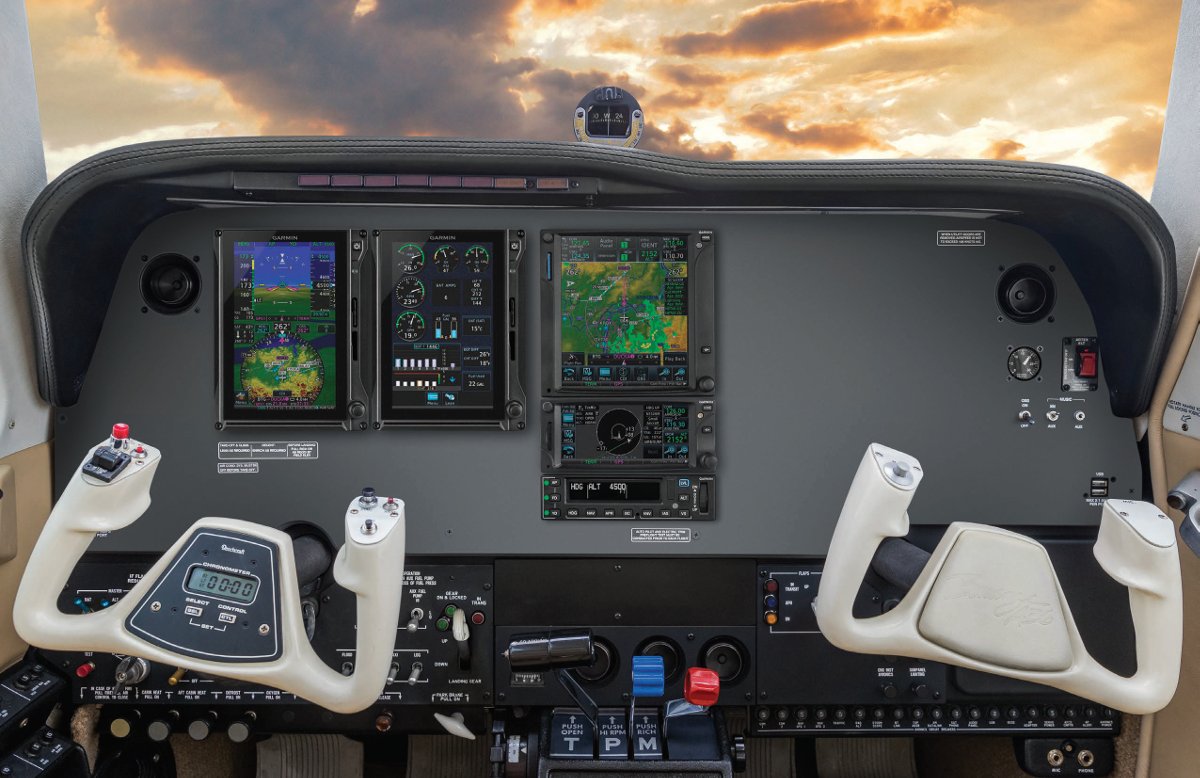

Aircraft owners who install G500 TXi dual 7" portrait displays with dual ADAHRS and an optional backup battery can forego the requirement for standby flight instruments in their light aircraft panels (Class 1 and 2 aircraft under 6,000 lbs max takeoff weight). Pairing two 7" portrait displays also gives you 30% more pixels than the original G500/G600 combo screens, offering increased clarity.

Does the aircraft currently have one of the following Garmin WAAS GPS navigators installed: GNS 430W/530W, GNS 480, or GTN 650/750?

Yes No

One GPS/SBAS navigator is required for each G500/G600 TXi system that is installed.

Do you currently have any of the following enablements?

Synthetic Vision Chartview Altitude Preselect Third Part Radar Radar Altimeter S-TEC DFCS 2100/1500 GWX 70 Ground Clutter Suppression GWX 70 Turbulence Detection TAWS-B RVSM Enablement, Socata TBM700/850

Would you like to add a dedicated PFD controller?

Yes No

The GCU 485 provides dedicated controls for PFD functions (in addition to the display). Mode button options include: ENG (Engage), GPS Steering (GPSS), ARM (Arm), CDI (Course Deviation Indicator). The GCU 485 is available in 5 models depending on the autopilot.

Does the aircraft have an existing autopilot?

Yes

Which One?

No

Why do we ask? Garmin's TXi systems have advanced autopilot capabilities, but may require specific equipment based on your existing autopilot.

Would you like a quote on a new Garmin autopilot in addition to the TXi?

Yes No

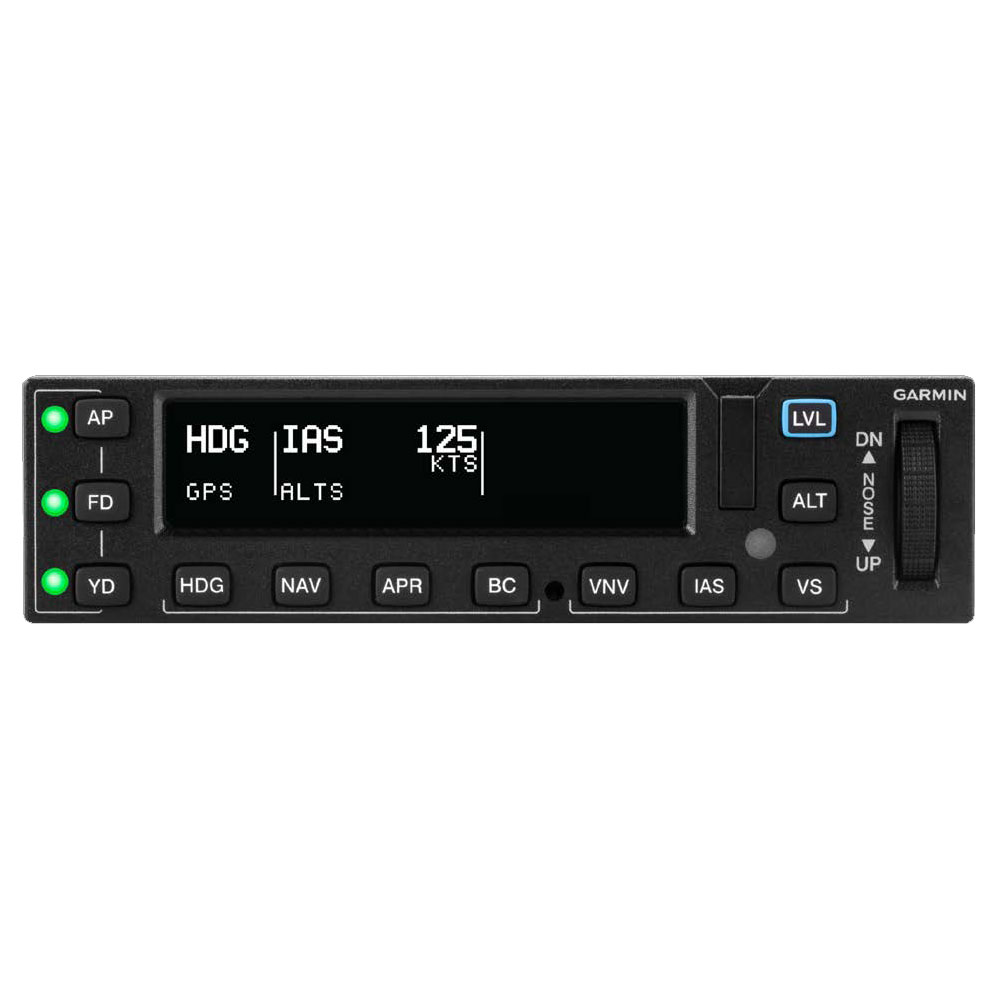

Designed for aftermarket installation on high-performance single- and twin-engine piston aircraft as well as turboprops and jets, the GFC 600 flight control system offers an impressive array of top-level safety and performance features.

Does the aircraft currently have one of the following Garmin WAAS GPS navigators installed: GNS 430W/530W, GNS 480, or GTN 650/750?

Yes No

One GPS/SBAS navigator is required for each G500/G600 TXi system that is installed.

Please select the display sizes and quantities that you are looking for:

10.6" Landscape 0 1 2

7" Portrait 0 1 2 3

The versatile 7" display can be used in a variety of configurations to fit your panel space and avionics budget. It can serve as part of a multi display system or as a dedicated stand-alone PFD, MFD or EIS display. The large 10.6" TXi series touchscreen can accommodate PFD and MFD capabilities as well as optional engine instrumentation, all in 1 split-screen format positioned directly in the pilot's primary field of view. The display area is more than 20% larger than earlier-generation G500/G600 series displays designed with side-by-side 6.5" screens.

Aircraft owners who install G500 TXi dual 7" portrait displays with dual ADAHRS and an optional backup battery can forego the requirement for standby flight instruments in their light aircraft panels (Class 1 and 2 aircraft under 6,000 lbs max takeoff weight). Pairing two 7" portrait displays also gives you 30% more pixels than the original G500/G600 combo screens, offering increased clarity.

Would you like to add a dedicated PFD controller?

Yes No

The GCU 485 provides dedicated controls for PFD functions (in addition to the display). Mode button options include: ENG (Engage), GPS Steering (GPSS), ARM (Arm), CDI (Course Deviation Indicator). The GCU 485 is available in 5 models depending on the autopilot.

Does the aircraft have an existing autopilot?

Yes

Which One?

No

Why do we ask? Garmin's TXi systems have advanced autopilot capabilities, but may require specific equipment based on your existing autopilot.

Would you like a quote on a new Garmin autopilot in addition to the TXi?

Yes No

Designed for aftermarket installation on high-performance single- and twin-engine piston aircraft as well as turboprops and jets, the GFC 600 flight control system offers an impressive array of top-level safety and performance features.

What is the weight of the aircraft?

Under 6,000 lbs, Class 1 & 2 Under 12,500 lbs, Class 3 Over 12,500 lbs

Certified for light piston singles and twins (Class 1 and 2 Part 23 aircraft weighing under 6,000 lbs), G500 TXi provides a cost-effective, feature-rich glass touchscreen suite that's approved for hundreds of popular general aviation makes and models.

Meeting the higher software assurance levels required for Class 3 piston or turbine aircraft (typically those weighing between 6,000 lbs and 12,500 lbs), G600 TXi offers the broadest range of approved models in our flight display lineup. It can be installed on everything from basic piston singles to cabin-class turboprops.

6000 Do you want to add any enablement options?

Synthetic Vision Chartview Altitude Preselect Third Part Radar Radar Altimeter S-TEC DFCS 2100/1500 GWX 70 Ground Clutter Suppression GWX 70 Turbulence Detection TAWS-B RVSM Enablement, Socata TBM700/850

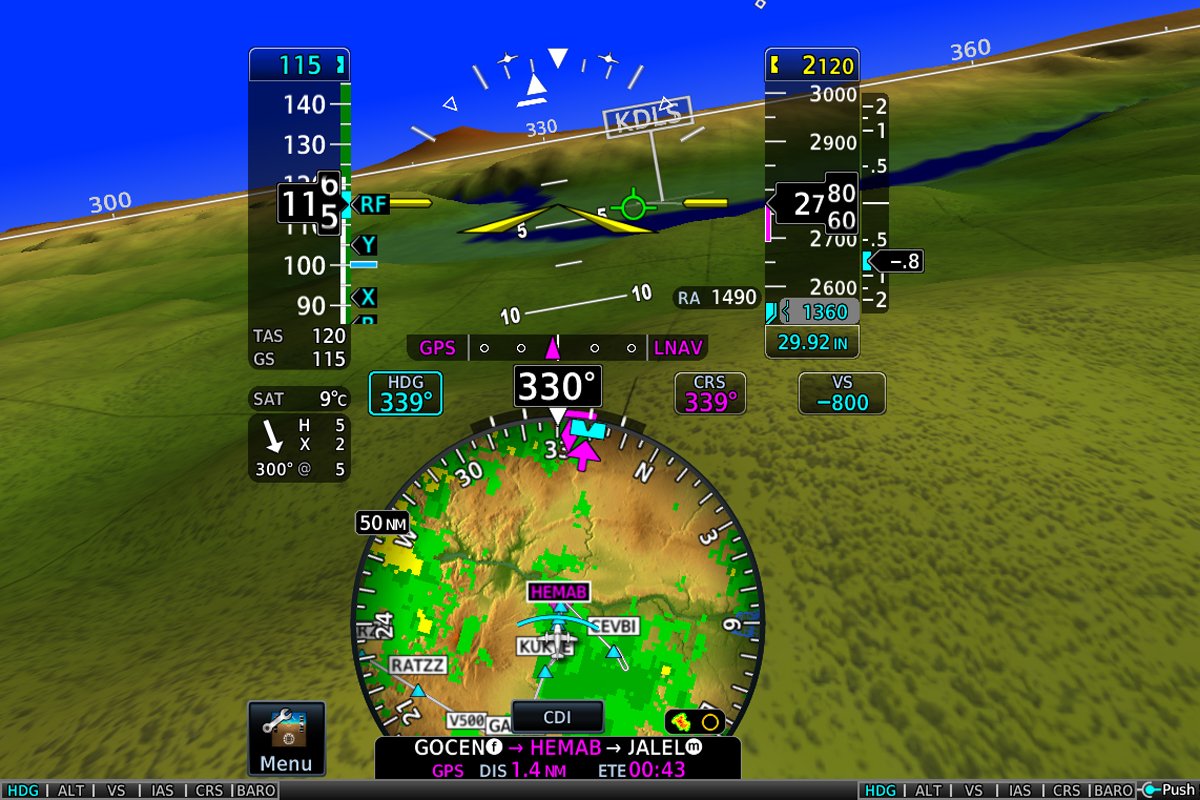

Note that while Synthetic Vision is an option for the G500 TXi, it comes standard on the G600 TXi.

12000 Do you want to add any enablement options?

Synthetic Vision Chartview Altitude Preselect Third Part Radar Radar Altimeter S-TEC DFCS 2100/1500 GWX 70 Ground Clutter Suppression GWX 70 Turbulence Detection TAWS-B RVSM Enablement, Socata TBM700/850

Why do we ask? In conjunction with the display trade-in program, Garmin will exchange original G500/600 feature enablement SD cards for corresponding G500 TXi/G600 TXi feature enablement SD cards at no additional cost. The original G500/600 feature enablement cards must be returned at the same time as the GDU 620 to be eligible for the exchange, and the relevant TXi enablement SD card order must be included with the display upgrade.

Garmin TXi Wizard

Sarasota Avionics' Selection Assistant for the G500/600 TXi System

Thank you for using Sarasota Avionics' Garmin TXi Wizard!
