EXCEPTIONAL FLIGHT DISPLAYS FOR YOUR PISTON SINGLE

Upgrade from legacy mechanical instruments to a modern touchscreen glass cockpit with solutions for PFD, MFD and optional engine indication system (EIS) capabilities.

touchscreen

Install advanced 10.6” and 7” touchscreen displays with PFD/MFD functionality.

Aviation-Engine_preformance

Monitor engine performance with optional EIS capabilities.

Single-engine

Certified for installation in hundreds of single-engine piston aircraft.

SVX

See terrain, obstacles, airports and more with standard SVX™ synthetic vision.

ADAHRS

Pair with your GFC™ 500 autopilot and select navigators to fly fully coupled approaches.

WIRELESS

Wirelessly transfer flight plans and more by using built-in Connext® technology.



EASY-TO-READ SCREENS

These bright, high-resolution, large-format LCD displays are easy to read and easy to use — so you have a whole new perspective on situational awareness.

DISPLAY OPTIONS

The 10.6 inch display can be set up for either PFD, MFD or PFD/MFD functionality with an EIS strip. A single 7 inch display can accommodate either PFD and MFD functionality or MFD and EIS windows1.

INSTALLATION OPTIONS

Pair up to three of the 10.6 inch or 7 inch portrait format displays1 — or install one now, and scale up your panel as your needs change.

TOUCH AND KNOB CONTROL

Access display functions with easy touchscreen inputs — even while wearing gloves — or use the concentric knobs if that’s more your style.

FLY DIRECT

Dedicated buttons on each display’s bezel allow you to quickly enter a direct course to an airport — or select from a menu of nearest airports or waypoints.

DIGITAL ADAHRS

GSU 25D ADAHRS provides highly accurate and reliable referencing of your aircraft attitude, heading, path vector and air data at a fraction of the space and weight of gyro-based instrument systems.



PRIMARY FLIGHT DATA

See attitude, airspeed, altitude, heading, vertical speed and more. Plus navigate with an HSI that accepts VOR/LOC and/or GPS course guidance, including both vertical and lateral course deviation, with your compatible navigator.

SYNTHETIC VISION TECHNOLOGY

Our SVX synthetic vision technology enhances situational awareness in all phases of flight by including 3D depictions of terrain, obstacles and airports.

HIGHWAY IN THE SKY

Easily visualize your flight path, including en route legs, flight track, course intercepts and more, with our pathway boxes.

VERSATILE DISPLAY

Switch from full-screen PFD to split PFD/MFD with a touch — to put more valuable flight information directly in your field of view.

COMPATIBLE WITH SMART GLIDE™ TECHNOLOGY

When paired with the GTN™ Xi series navigator, G3X Touch supports Smart Glide engine-out navigation functionality. Once activated, Smart Glide recommends a nearby airport and creates a Direct-to route so you can land.

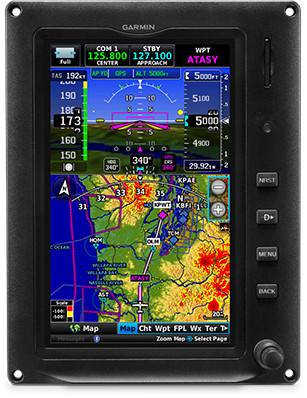

DYNAMIC TOPOGRAPHY

By referencing built-in terrain, mapping and obstacle databases, G3X Touch shows detailed surface features, cities, airports, SUAs and more on the dynamic map display..

SIMPLE PAN AND ZOOM

Get all of your route information at your fingertips. Easily pan across the moving map by dragging your finger across the screen, or pinch to zoom to see more detail.

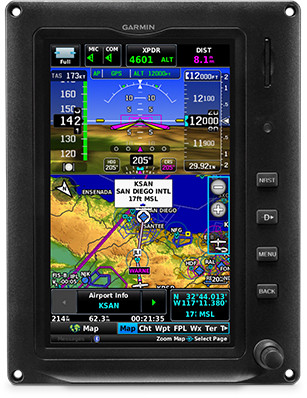

INTERACTIVE MAP

Touch anywhere on the map, and, using your current position, the display shows the distance, bearing and time to that location on the map — as well as its elevation and GPS coordinates.

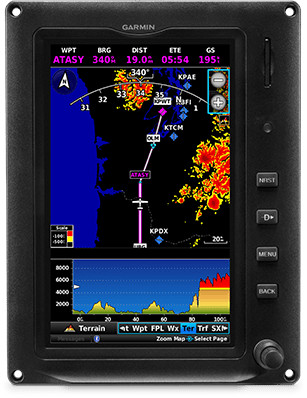

TERRAIN ALERTING

A built-in database depicts terrain and obstacles with color-coded 2D or profile displays — or both — while visual and audible alerts indicate when potential terrain conflicts loom ahead.

SAFETAXI® DATABASE

Upon touchdown, our built-in SafeTaxi diagrams help you navigate airport environments safely, with your aircraft position overlaid onto taxiways, runways, ramps and more.

CHARTS IN CONTEXT

Our standard FliteCharts® procedure charts or optional Jeppesen® style ChartView™ plates — available with a subscription — provide georeferenced approaches and terminal procedures.

ADS-B “IN” AND “OUT”

G3X Touch can display ADS-B “In” weather and traffic information when connected with a GNX™ 375 navigator, GTX™ 345 transponder or GDL® 50R or GDL 52R receiver (each sold separately).

MONITOR TRAFFIC TARGETS

Pair G3X Touch with a compatible transponder (sold separately), and enjoy our proprietary TargetTrend™ and TerminalTraffic™ technologies to more intuitively monitor ADS-B traffic targets in the air and on the ground.

SIRIUSXM® WEATHER AND RADIO

Install a GDL 51R or GDL 52R SiriusXM receiver to display SiriusXM satellite weather coverage — as well as listen to audio entertainment3.



EIS INDICATIONS

Display primary engine indications with the addition of a GEA™ 24 module and appropriate sensors to show various engine, fuel and electrical gauges with easy-to-interpret color bands.

SUPPORT FOR POPULAR ENGINES

Engine sensor kits are available for most popular Lycoming or Continental 4- to 6-cylinder engines.

LEAN ASSIST MODE

Optimize fuel economy while maintaining high efficiency and performance of your engine with lean assist mode (when using optional GEA 24).

ENGINE DATA LOGGING

Download engine data to an SD™ card in the display, or wirelessly share to the Garmin Pilot™ app on your compatible smart device, and later upload it to the flyGarmin.com® website for analysis by your maintenance shop’s service team.



COMM RADIOS

Add up to two COMM radios (such as the panel-mounted GTR 225, GNC® 255, GNC 355 or GTN™ Xi series), and easily control active and standby COMM frequencies from the G3X Touch display.

AUDIO PANEL

Control the advanced audio functions of the remote mount GMA™ 245R audio panel (PMA) right from your G3X Touch display.

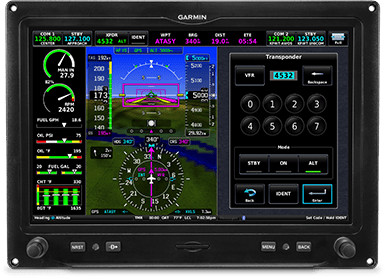

TRANSPONDER CONTROL

Easily enter squawk codes via your G3X Touch display to control a transponder, such as our GNX 375 or GTX 345.

ADVANCED AUTOPILOT

Pair G3X Touch with the affordable GFC 500 autopilot4 for safety-enhancing features, such as overspeed and underspeed protection, a dedicated LVL button and Garmin ESP™ (Electronic Stability and Protection) corrective technology.

IFR APPROACH CAPABILITY

Add LPV/LNAV/ILS approach capabilities when you pair G3X Touch with select Garmin navigators (each sold separately), such as GTN 650Xi, GTN 750Xi, GNX 375, GNC 355 or GPS 175.

BACKUP ATTITUDE INSTRUMENT

Our optional G5 electronic flight instrument4 automatically syncs baro and bug settings — and drives your GFC 500 autopilot in the unlikely event of a display failure.

RELIABLE REVERSIONARY

In the unlikely event of a display failure, reversionary mode enables the remaining flight displays, in multiple display installations, to present all essential flight information — including EIS data when installed.



COMPATIBLE WITH CONNEXT TECHNOLOGY

Built-in Connext wireless connectivity makes true cockpit companions of your compatible mobile devices running the Garmin Pilot, FltPlan Go and ForeFlight Mobile apps — as well as aera® 660 and aera 760 aviation portables.

CREATE FLIGHT PLANS

Use your compatible mobile device or portable to create a flight plan in the comfort of your home, office or pilot lounge, and then transfer it to your G3X Touch with a tap or two — waypoints, airways, departures, arrivals and all.

UPDATE EN ROUTE

Adding last minute or en route flight plan amendments from ATC — or due to weather — is easy. Simply make them on your compatible mobile device or Garmin portable, and sync again to conveniently and efficiently manage your cockpit.

FLIGHT DATA STREAMING

Wirelessly stream GPS, attitude information and ADS-B traffic and weather data to your compatible portable or mobile device.

10.6" Display (GDU 460)

  • Display size: 10.6” (269.2 mm) diagonal
  • Display resolution: 1280 pixels (W) x 768 pixels (H)
  • Unit height: 7.82” (198.6 mm)
  • Unit width: 10.85” (275.5 mm)
  • Unit depth: 3.57” (90.7 mm); depth includes recommended backshell
  • Weight: 4.6 lbs (2.09 kg); weight does not include nut plate and connector
  • Input voltage range: 10-32 VDC, 28W max, not typical
  • Operating Temperature Range: -20°C to +60°C

7" Portrait Display (GDU 470)

  • Display size: 7” (177.8 mm) diagonal
  • Display resolution: 480 pixels (W) x 800 pixels (H)
  • Unit height: 7.82” (198.6 mm)
  • Unit width: 6.01” (152.6 mm)
  • Unit depth: 3.68” (93.4 mm); depth includes recommended backshell
  • Weight: 2.66 lbs (1.21 kg); weight does not include nut plate and connector
  • Input voltage range: 10-32 VDC, 20W max, not typical
  • Operating temperature range: -20°C to +60°C

Choice of Display(s)

  • GDU 460 - 10.6" Landscape
  • GDU 470 - 7" Portrait

LRU Kit includes:

  • GSU 25D, PMA
  • GMU 11, PMA
  • Configuration Module, PMA
  • Sub-Assy, GTP59

LRU Install Kit includes:

  • Connector Kit, GSU 25/25D, FAA-PMA
  • GMU 11 Install Kit

Note: Displays above include install and connector kits. Pilot's Guide is available for download from Garmin.com

Accessories



Related Products
