NAV Antennas (VOR/GS)

CI-158C

Available models: CI-158C and CI-158C-2.

"V" Dipole VOR/Glide Slope Antenna with detachable elements mounts on top of the vertical fin stabilizer for most single engine general aviation aircraft. RF design similar to the CI-157P.

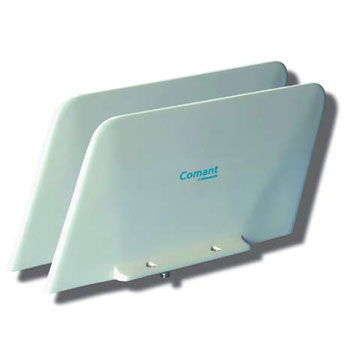

CI-120 GS

Frequency 108-118 MHz (VOR/LOC), 329-335 MHz (Glide Slope). VOR/GS navigation antenna set provides optimum VOR performance when used for area navigation. Antenna system qualified for use on single, twin, jet and helicopter aircraft.

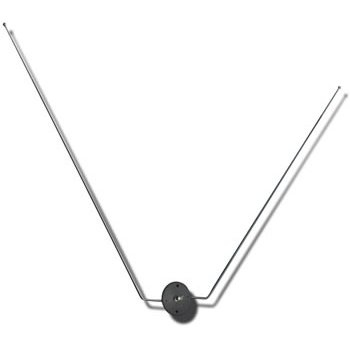

CI-157P

"V" Dipole VOR/Glide Slope Antenna with fixed elements designed specifically for compatibility with the Piper Aircraft mounting. Integral ferrite balun provides for higher radiation efficiency replacing cumbersome coaxial baluns previously utilized. Radiating elements are not removable.

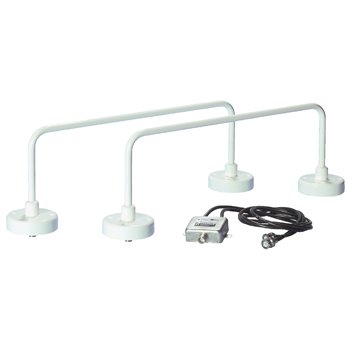

CI-205-3

The CI-205-3 Towel Bar style VOR/LOC/GS high performance navigation antenna set is designed for mounting on the aircraft vertical stabilizer or helicopter tail boom. The antenna features low weight and drag. Its tubular structure to minimize helicopter rotor ""down wash"" forces. Includes a set of two "towel bar" sensor elements each with a single BNC output connector and a one-piece dual coax interconnect signal combiner harness with single BNC connector output. Provides for a single cable run to the avionics location. Approved for light helicopter installations.

AV-532

The AV-532 is a VOR/LOC/GS receive only antenna which consists of taper ground high-strength 17-7PH stainless steel elements to reliably withstand vibration and wind loads. The insulators are weather-sealed compression-molded bakelite with the mounting holes provided. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft.
