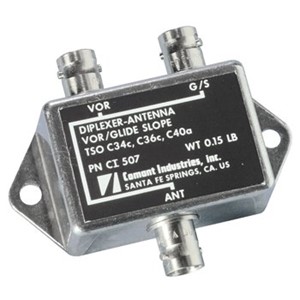

The AV-570 diplexer splits the signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver. The diplexer construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft.

Frequencies Covered

  • 108-118, 328-335 MHz

  • Splits signal from a VOR-Type NAV antenna to feed a NAV/LOC and a GS receiver
  • 108 to 118 MHz (VOR) & 328 to 336 MHz (GS) frequency response
  • 50Ω impedance

  • Application: VOR/LOC/GS (Receive Only)
  • Frequency: 108-118, 328-335 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.4:1 Maximum
  • Insertion Loss: 1 dB Maximum
  • Isolation: 38 dB Minimum
  • Connector: (3) "BNC" Females
  • Weight: 3.5 oz Maximum
  • FAA TSO: C34e, C36e, C40c
