Frequency 108-118 MHz & 329-335 MHz

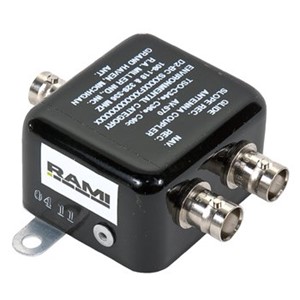

Single VOR/single glide slope diplexer allows the operation of one VOR and one glide slope receiver from one VOR/glide slope antenna. Compact design makes installation easy.
Electrical
- Frequency: 108-118 MHz & 329-335 MHz
- VSWR: 1.5:1 Maximum
- Isolation: 20 dB Min between any receiver port
- Insertion Loss: 0.5 dB Maximum
- Impedence: 50 Ohms
Mechanical
- Weight: 0.20 lbs. Maximum
- Height: 0.88 in. Maximum
- Material: Die Cast Aluminum
- Finish: Aluminum
- Connectors: BNC (female)
Federal Specifications
- FAA TSO C34c, C36c, C40a
