Modernize Your Piston, Turboprop or Jet
Upgrade with TXi™ touchscreen flight displays that deliver advanced PFD/MFD/EIS capabilities and provide an all Garmin retrofit path for your aircraft. They’re available as G500 TXi, G600 TXi and G700 TXi displays to meet software-assurance levels required for certification in select Class I/II/III/IV aircraft.
Powerful and Purposeful
This system features bright, high-resolution LCD touchscreen displays. They’re easy to read and easy to use — so you can have a whole new perspective on situational awareness. Powerful dual-core processors boost the system’s graphical display capabilities — with swift zooming, panning and map rendering. Pilots can easily access display functions with touchscreen inputs or via the familiar concentric knobs.
Versatile Display Options
Pair up to four displays1 — or install one now, and scale up your panel as your needs change. Choose from 12.1-inch or 10.6-inch displays for either PFD, MFD, or PFD/MFD functionality with an optional engine indication system (EIS) strip. A single 7-inch portrait format can act as a dedicated PFD, MFD, EIS or a split-screen MFD/EIS2. The 7-inch landscape format can be configured to provide dedicated PFD information, EIS or split-screen MFD/EIS2.
Upgrade in a Snap
TXi is fully compatible with system sensors for the original G500 and G600 series of flight displays, creating an easy, cost-effective upgrade path. For those upgrading from a traditional 6-pack, reliable solid-state attitude heading reference system sensors replace maintenance-prone mechanical gyros for added precision and reduced overall lifecycle costs as well as improved dispatch reliability and greater weight savings.
Extensive Interface Options
Extensive integration capabilities with Garmin systems and select third-party systems provide a simplified, feature-rich upgrade. That includes a wide range of autopilots, such as our digital GFC™ 600 series, GFC 500 (requires a G5 or GI 275 as standby instrument) and other popular autopilots installed in Class I/II/III aircraft.
Select a System to Learn More
.png)
G500 TXi
Designed specifically for FAR Part 23 Class I/II aircraft (weighing less than 6,000 lbs).
.png)
G600 TXi
Designed for FAR Part 23 Class III aircraft (typically those weighing between 6,000–12,500 lbs).
G700 TXi
Meets Level A software assurance levels for Part 23 Class IV (MTOW more than 12,500 lbs) and Part 25 aircraft.
G500H TXi
Bright, crisp 10.6” and 7” LCD touchscreen displays offer a wide choice of affordable, space-saving glass cockpit solutions for helicopters.
.png)
Piston EIS
Upgrade your piston-powered aircraft with an advanced EIS that offers detailed real-time data to help you better manage your engine operation and protect your investment.

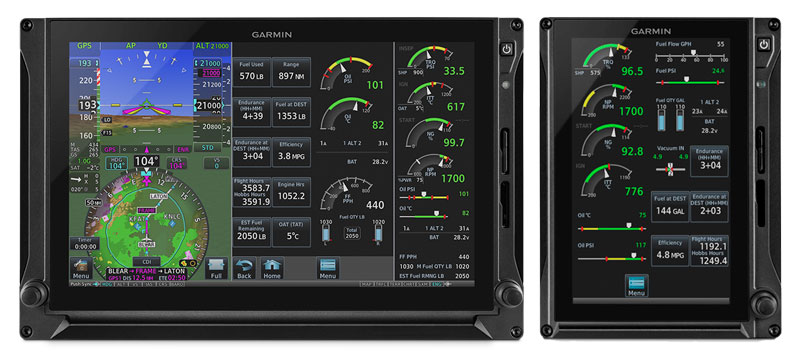

Turbine EIS TXi
Upgrade select turbine aircraft with an advanced engine indication system (EIS) that helps you maximize the efficiency of your engine and protect your investment.
Examples of Our Recently Completed Installations
Bonanza A36
Single 10" G500 TXi
Commander 114-B
Single 10" G500 TXi

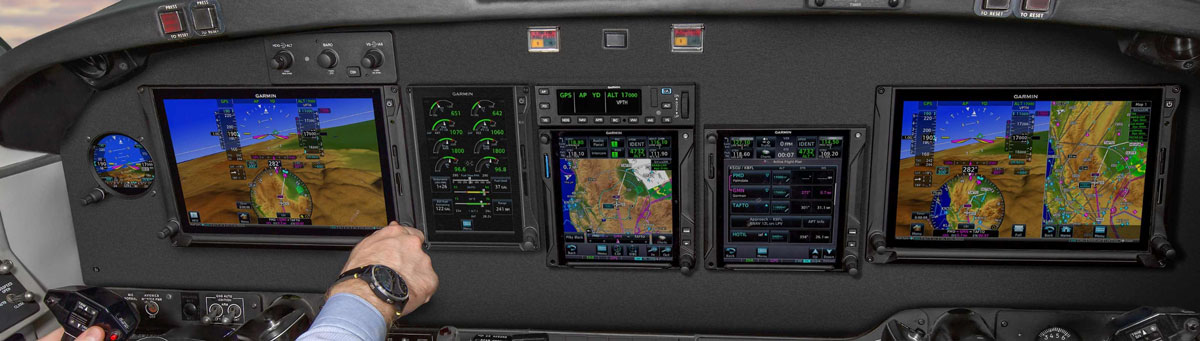

King Air C90
Dual 10" G600 TXi
Piper Aztec PA-23-250
Dual 10" G500 TXi
Beech B58 Baron
Single 10" G500 TXi
Cirrus SR22
Dual 10" G500 TXi
Bonanza B36TC
Single 10" G500 TXi
Bonanza A36
Dual 10" G500 TXi
Cessna 182P
Single 10" G500 TXi
Pilatus PC-7
Two 10" G500 TXi
Cessna 172M
Dual 10" G500 TXi w/EIS TXi
Mooney M20R
Single 10" G500 TXi
Why Upgrade?
| Latest Technology |
| Streamlined Touch Interface |
| Software Upgradable |
| Easily Integrated with GTN Avionics |
| Modular |
| Optional Engine Monitoring |
| And Much More... |
TXi Technology
A clean-sheet touchscreen design and vibrant presentation, the TXi family incorporates greater situational awareness tools and an innovative feature set into a contemporary avionics platform. Four displays are available, offering optimal flexibility for panel configurations, including a large 10.6-inch or 12-inch display, and two versions of 7-inch displays, in portrait and landscape orientations. The 10.6-inch and 12-inch displays can operate as a primary flight display (PFD), multi-function display (MFD) and optional EIS in a highly customized package, while the 7-inch portrait display can be dedicated to one of those functions.
How The Systems Compare
Compare the TXi and the Legacy G500/G600 Systems and see for yourself why the TXi is a better option.
| G500/G600 TXi | Legacy G500/G600 | |
|---|---|---|
| Multiple Display Sizes and Display Combinations | Yes | No |
| Touchscreen with Modernized User Interface | Yes | No |
| Optional Integrated Engine Information System | Yes | No |
| Available Integrated AHRS and Display Mounted ADC | Yes | No |
| Large Format PFD | Yes (10" and 12" Display) | No |
| Display Brightness | 330 fL (7" Displays) - 410 fL (10" Display) | 150 fL |
| Processor Type | Dual Core | Single Core |
| HSI Map on Primary Flight Display | Yes | No |
| Optional Backup Battery | Yes (7” Displays Only) | No |
| Animated Graphical Weather (From Compatible Datalink Source) | Yes | No |
| Pilot Profiles (Saved User Settings) | Yes | No |
