GARMIN G500/G600 TXi
Flight Display System
The TXi family incorporates a familiar touchscreen design with modern processors that support improved map and chart rendering, faster panning and contemporary single-finger zoom and pinch-to-zoom gestures. Through any combination of the touchscreen or dual concentric knobs, pilots can quickly access and view flight information at a glance. Modernized displays and large fonts offer improved readability, while the simplistic user-interface helps reduce overall pilot workload. Pilots will also appreciate a familiar in-flight experience behind the TXi series as the user interface is harmonious with multiple Garmin products, such as the GTN™ 650/750 touchscreen navigators.
Select a System to Learn More
.png)

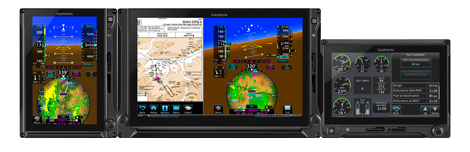

G500 TXi
Certified for light piston singles and twins (Class 1 and 2 Part 23 aircraft weighing under 6,000 lbs), G500 TXi provides a cost-effective, feature-rich glass touchscreen suite that’s approved for hundreds of popular general aviation makes and models.
.png)

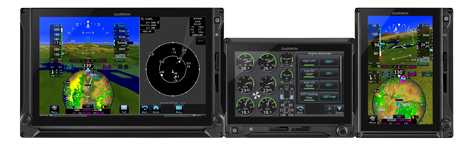

G600 TXi
Meeting the higher software assurance levels required for Class 3 piston or turbine aircraft (typically those weighing between 6,000 lbs and 12,500 lbs), G600 TXi offers the broadest range of approved models in our flight display lineup. It can be installed on everything from basic piston singles to cabin-class turboprops.
.png)

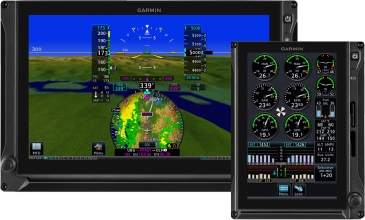

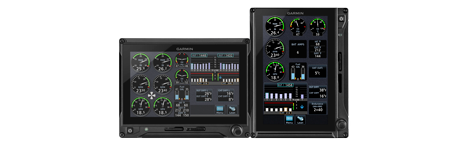

EIS TXi

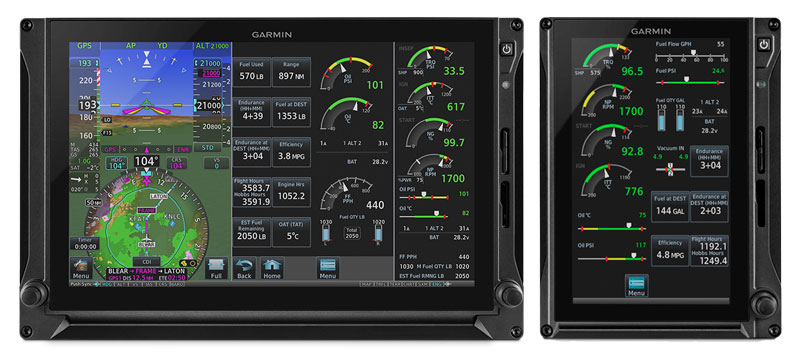

With TXi engine monitoring, it’s easy to see and analyze the critical engine, fuel and electrical parameters that can help you maintain the best, most efficient performance from your aircraft. Data can be viewed as an integrated EIS strip on the split-screen 10.6” TXi display — or as a dedicated stand-alone 7” portrait or landscape engine gauge display.
Examples of Our Recently Completed Installations
Bonanza A36
Single 10" G500 TXi
Commander 114-B
Single 10" G500 TXi
King Air C90
Dual 10" G600 TXi
Piper Aztec PA-23-250
Dual 10" G500 TXi
Beech B58 Baron
Single 10" G500 TXi
Cirrus SR22
Dual 10" G500 TXi
Bonanza B36TC
Single 10" G500 TXi
Bonanza A36
Dual 10" G500 TXi
Cessna 182P
Single 10" G500 TXi
Pilatus PC-7
Two 10" G500 TXi
Cessna 172M
Dual 10" G500 TXi w/EIS TXi
Mooney M20R
Single 10" G500 TXi
Why Upgrade?
| Latest Technology |
| Streamlined Touch Interface |
| Software Upgradable |
| Easily Integrated with GTN Avionics |
| Modular |
| Optional Engine Monitoring |
| And Much More... |

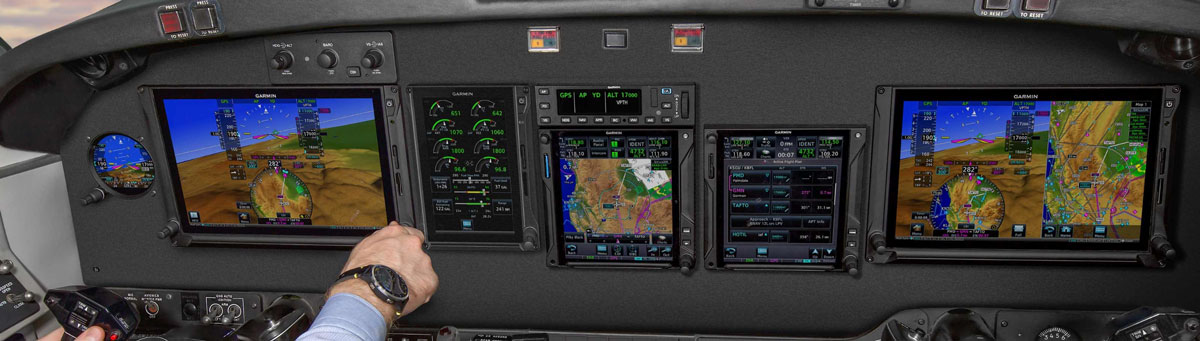

TXi Technology
A clean-sheet touchscreen design and vibrant presentation, the TXi family incorporates greater situational awareness tools and an innovative feature set into a contemporary avionics platform. Three displays are available, offering optimal flexibility for panel configurations, including a large 10.6-inch display, and two versions of 7-inch displays, in portrait and landscape orientations. The 10.6-inch display can operate as a primary flight display (PFD), multi-function display (MFD) and optional EIS in a highly customized package, while the 7-inch portrait display can be dedicated to one of those functions.
How The Systems Compare
Compare the TXi and the Legacy G500/G600 Systems and see for yourself why the TXi is a better option.
| G500/G600 TXi | Legacy G500/G600 | |
|---|---|---|
| Multiple Display Sizes and Display Combinations | Yes | No |
| Touchscreen with Modernized User Interface | Yes | No |
| Optional Integrated Engine Information System | Yes | No |
| Available Integrated AHRS and Display Mounted ADC | Yes | No |
| Large Format PFD | Yes (10” Display) | No |
| Display Brightness | 330 fL (7” Displays) - 410 fL (10” Display) | 150 fL |
| Processor Type | Dual Core | Single Core |
| HSI Map on Primary Flight Display | Yes | No |
| Optional Backup Battery | Yes (7” Displays Only) | No |
| Animated Graphical Weather (From Compatible Datalink Source) | Yes | No |
| Pilot Profiles (Saved User Settings) | Yes | No |
