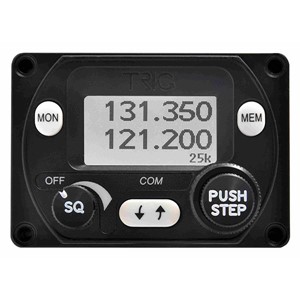

The TY91/TY92 radio wiring harness connects a TY91 or TY92 remote mounted VHF radio unit to a panel mounted TC90 control head, and comes in either "short" (39"/100cm) or "long" (118"/300cm) options. This harness includes all the necessary wiring to facilitate the installation of the TY91/TY92 Compact VHF Radios to a TC90 control head while providing for power/ground, speaker, intercom, headphones, microphones, PTT, and AUX input connections.
Short
- 118 in (300 cm) from radio to controller
- 118 in (300 cm) from controller to step key/transfer key
- 118 in (300 cm) from radio to power/ground, speaker, intercom enable, headphones (x2), microphones (x2), PTT (x2), and AUX input
Long
- 39 in (100 cm) from radio to controller
- 118 in (300 cm) from controller to step key/transfer key
- 118 in (300 cm) from radio to power/ground, speaker, intercom enable, headphones (x2), microphones (x2), PTT (x2), and AUX input
