Aviation's Panel Mount Avionics Installation Leader

Works with Your Existing Mode C Transponder

tailBeacon works with any existing Mode C transponder. uAvionix’s patented power transcoder technology seamlessly communicates with your existing transponder, any transponder, over your aircraft’s electrical system. tailBeacon and skyBeacon are the only UAT ADS-B OUT devices on the market that work with Mode S transponders.

Remain Anonymous

Just because you are ADS-B equipped, doesn’t mean you want to be tracked. With tailBeacon’s Anonymous Mode, your aircraft identification remains hidden from the ADS-B OUT signal while squawking 1200. Anonymous Mode keeps the skies safe while protecting your privacy.

Self-Contained WAAS GPS

tailBeacon contains its own TSO Certified uAvionix truFYX WAAS GPS. You have no additional GPS to purchase or integrate with!

Watch Your Six

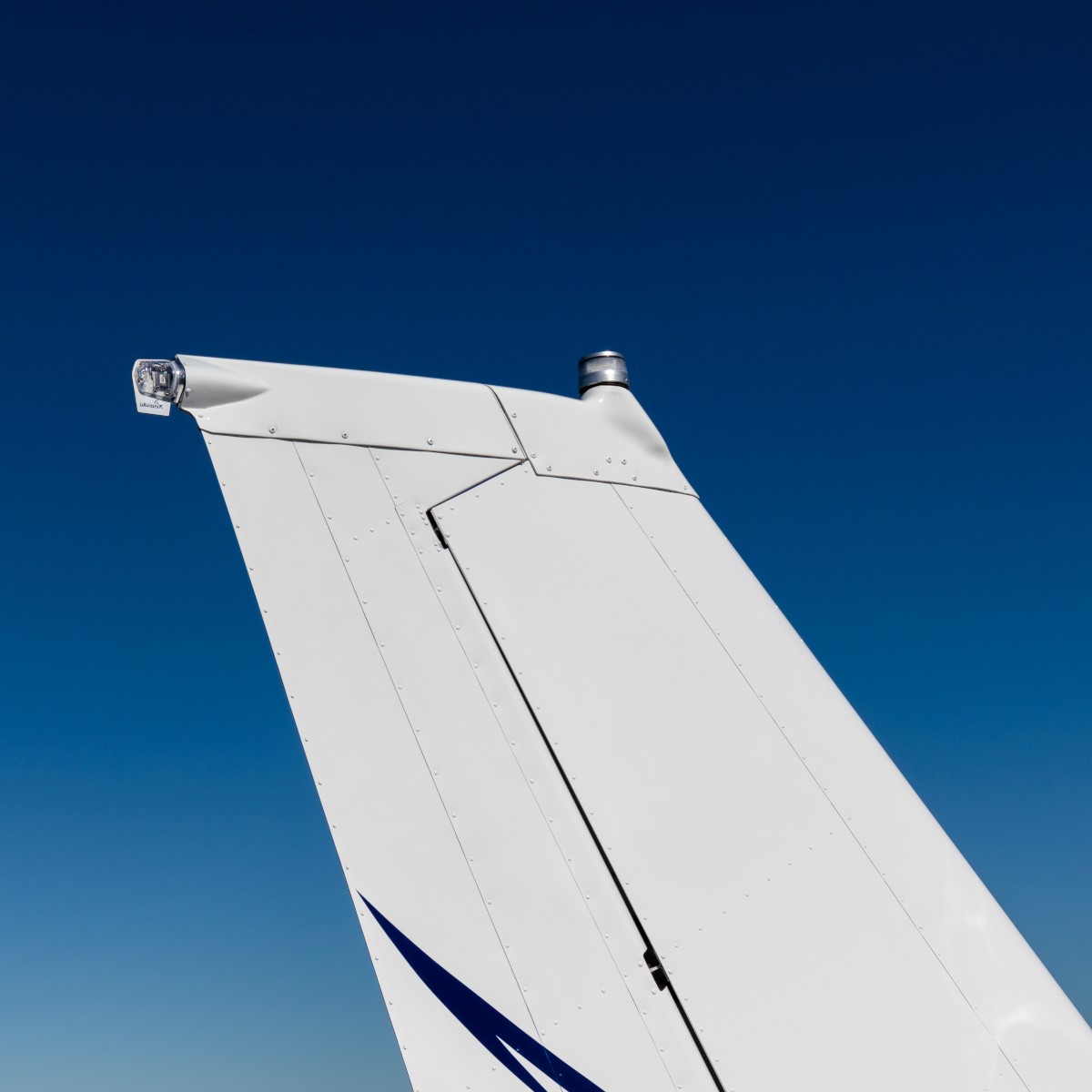

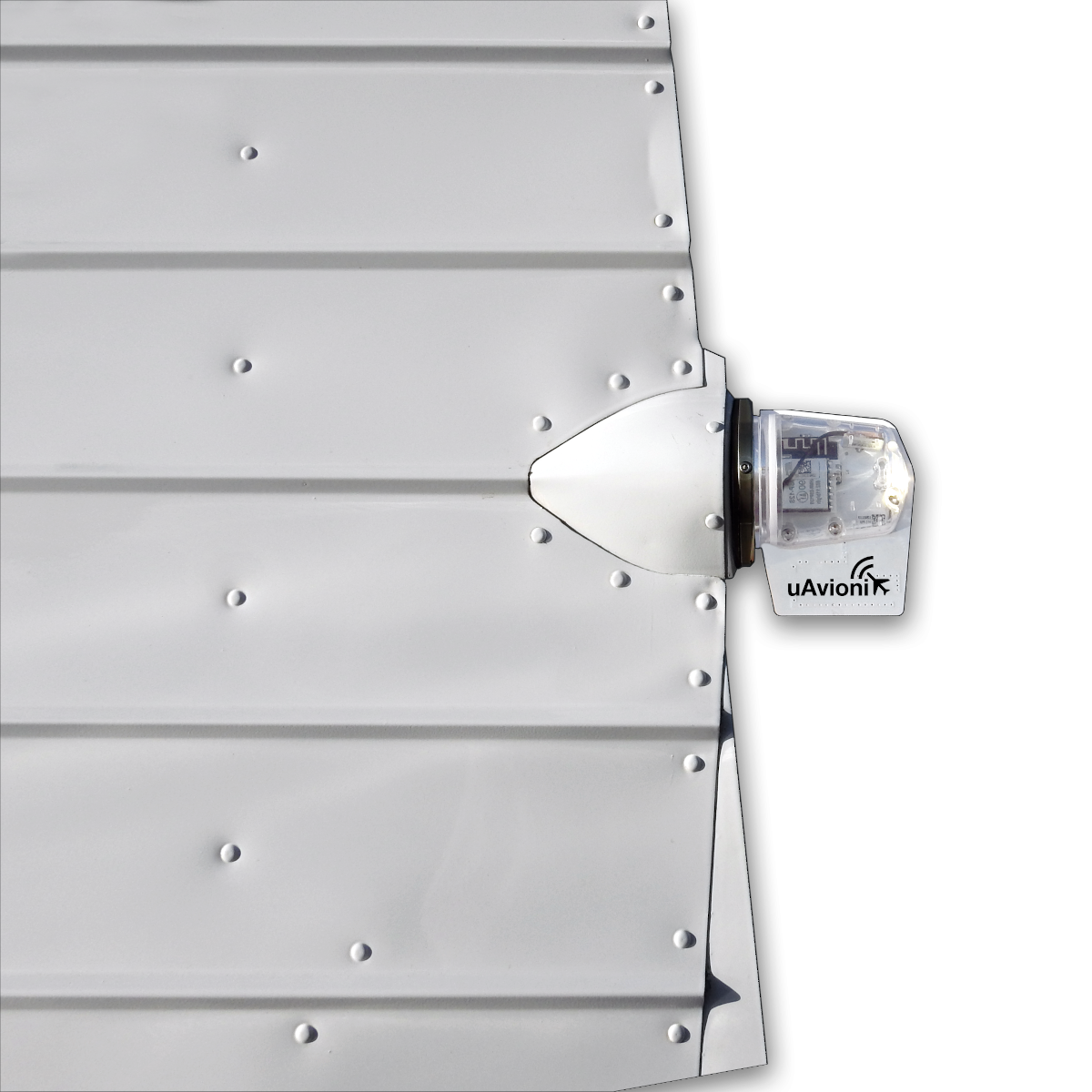

There’s more to tailBeacon than just ADS-B compliance. By replacing your existing rear position light with tailBeacon, you’re getting a 2x brighter LED nav light with a fraction of the power consumption. With tailBeacon’s 20,000 hour rated LEDs, you can fly with confidence knowing your rear’s covered.

Mounts with a Turn

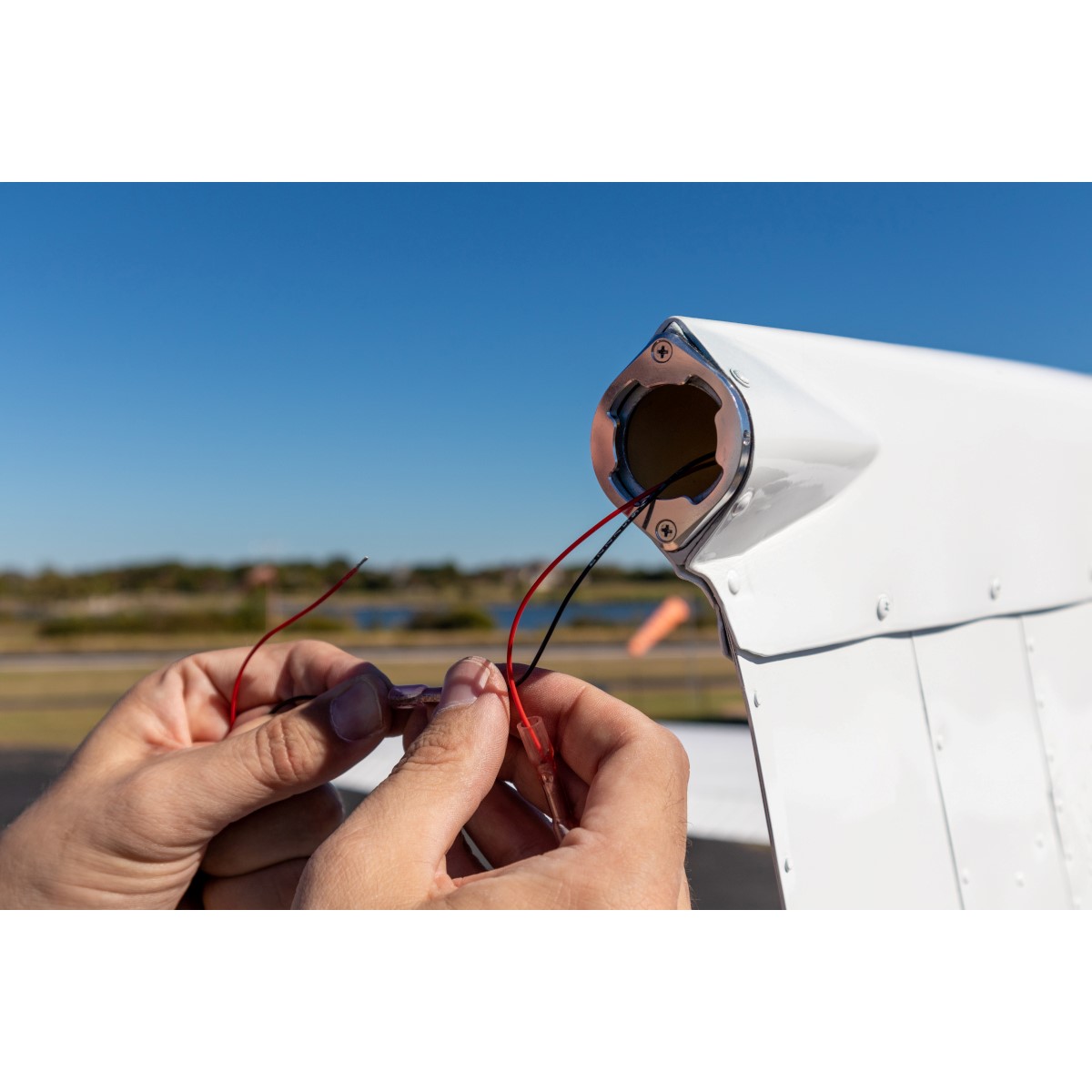

The new tailBeacon is the easiest, most affordable installation on the market. Simply remove your existing position light, install the mounting bracket, connect to existing power wires, slide in tailBeacon, and turn to lock in place. It’s that easy!

Instant Setup and Configuration

Mechanically installing tailBeacon is the first easy step. With uAvionix’s mobile app, configuration is just as simple. Our mobile application (available for both Apple iOS and Android) guides your installer through setting the necessary values including the ICAO address, emitter type, aircraft length, width and GPS offsets.

tailBeacon is very similar to skyBeacon and combines:

  • ADS-B OUT
  • WAAS GPS
  • Barometric Pressure Altitude Sensor
  • LED tail position lights

  • Input Voltage: 11-31V DC
  • Operating Power: 3 watts
  • Size: 92 x 43 x 73mm
  • Weight: 70 grams
  • SDA/SIL: 2/3
  • Operating Temp: -45 to 70°C
  • 978MHz UAT Transmitter Power Classification: DO-282B Medium Power
  • WAAS GPS: Tracking -166dBm; Reacquisition -160dBm; Cold Start -148dBm
  • LED Position Light Color: Aviation White
  • LED Position Light Intensity: 40 candelas
  • Wi-Fi Configuration: Physical 802.11b/g/n
  • App Compatibility iOS, Android
  • Power Transcoder: Decodes Mode A and C via Power Transcoder
