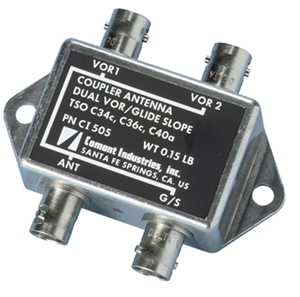

The AV-571 diplexer/splitter splits the signal from a VOR-type antenna to feed two NAV and one Glide Slope receivers. The diplexer/splitter’s construction is similar to the AV-547 splitter and operates at altitudes up to 50,000 ft. This product is a direct replacement for the CI 505.
Frequencies Covered- 108-118, 328-335 MHz
- Splits the signal from a VOR-type antenna to feed two NAV and one Glide Slope receivers
- 108 to 118 MHz (VOR) & 328 to 336 MHz (GS) frequency response
- 50Ω impedance
- Application: VOR/LOC/GS (Receive Only)
- Frequency: 108-118, 328-336 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 1.4:1 Maximum
- Insertion Loss: 1 dB Maximum (GS)
- 3.5 dB Maximum (VOR/LOC)
- Isolation: 22 dB Minimum / 35 dB Avg
- Connector: (4) "BNC" Females
- Weight: 3.5 oz
- FAA TSO: C34e, C36e, C40c
