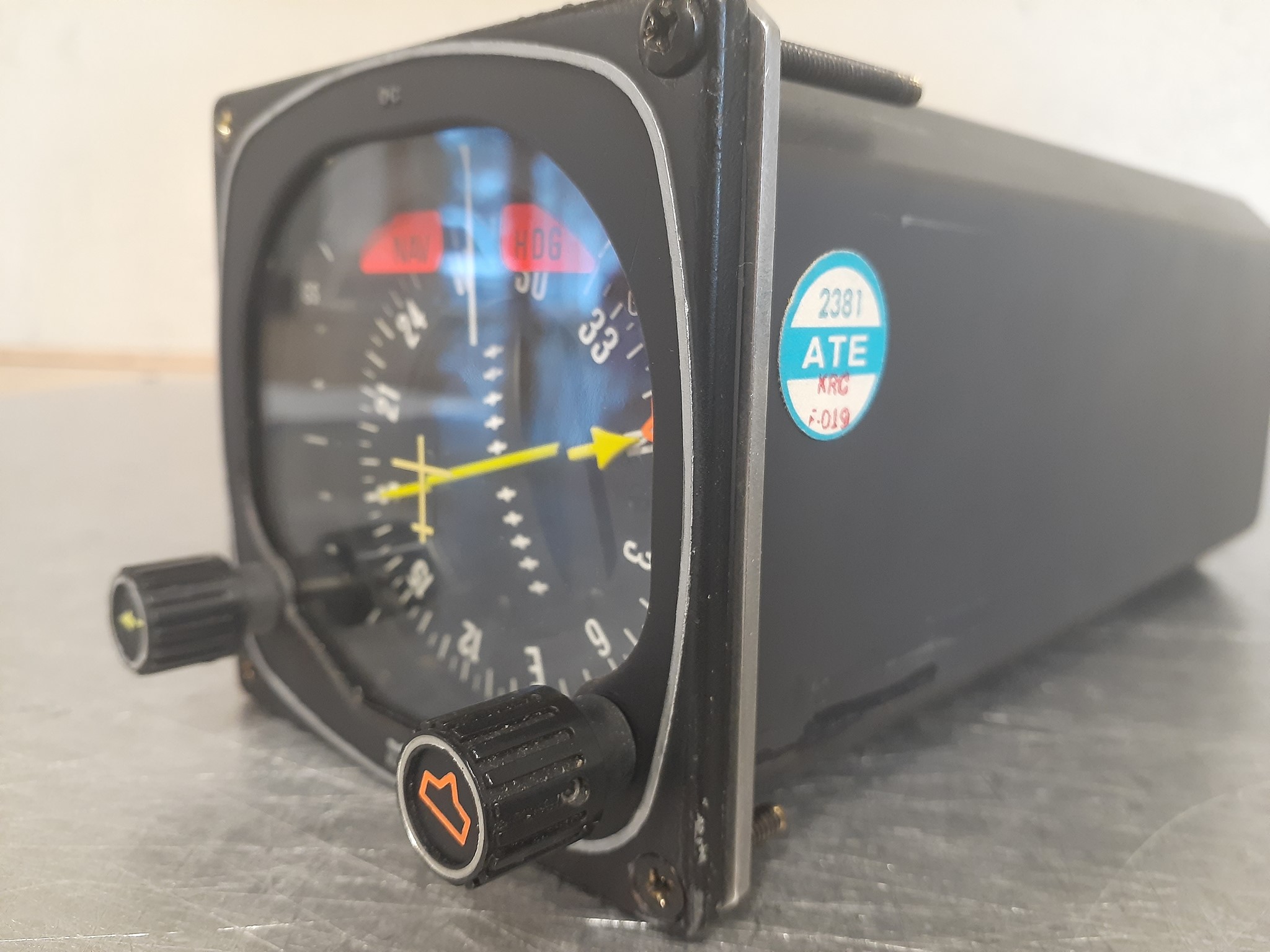

The KI-525A is a Pictorial Navigation Indicator used in the KCS-55A compass system.
Displays the following:
- Gyro-stabilized aircraft magnetic heading
- Selected course
- VOR/LOC course deviation
- G/S deviation
- TO/FROM indication
- Warning flags for valid gyro and valid VOR/LOC information
- Provides a pictorial display of the horizontal navigation situation and also provides manual controls for course and heading datum selection
- Provides outputs for autopilot or flight director, VOR receivers, and additional compass loads
- Combines Magnetic Heading and course information from VOR/LOC, GPS, Loran, or RNAV
- Includes dual glideslope pointers which are in view only during an ILS approach
- Can be operated at 14 or 28VDC
- Internally lighted
- TSO'd
- Size: 3.375"W x 3.550"H x 7.305"L
- Weight: 3.94 lbs.
- KI-525A-00
- Install kit
