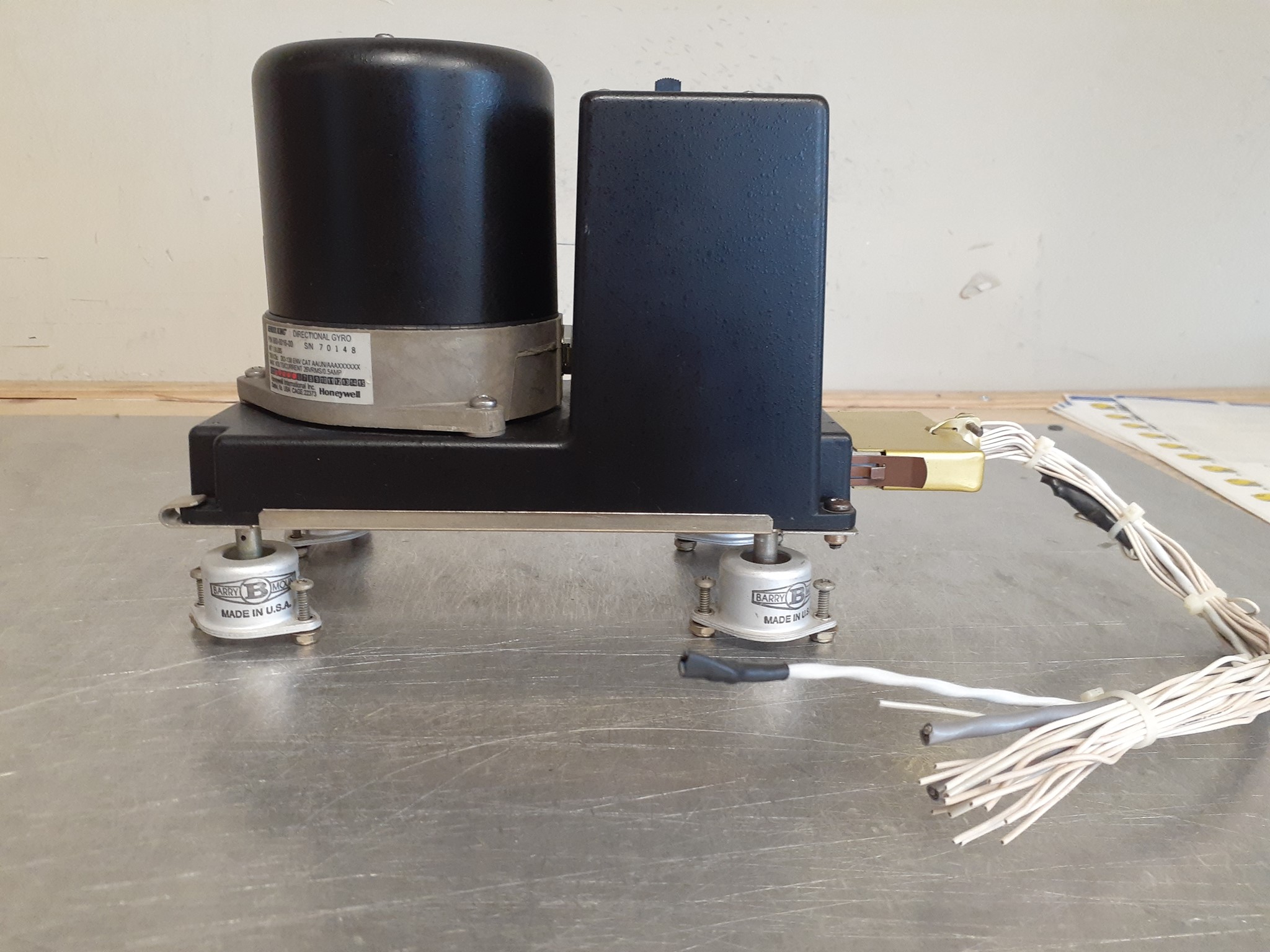

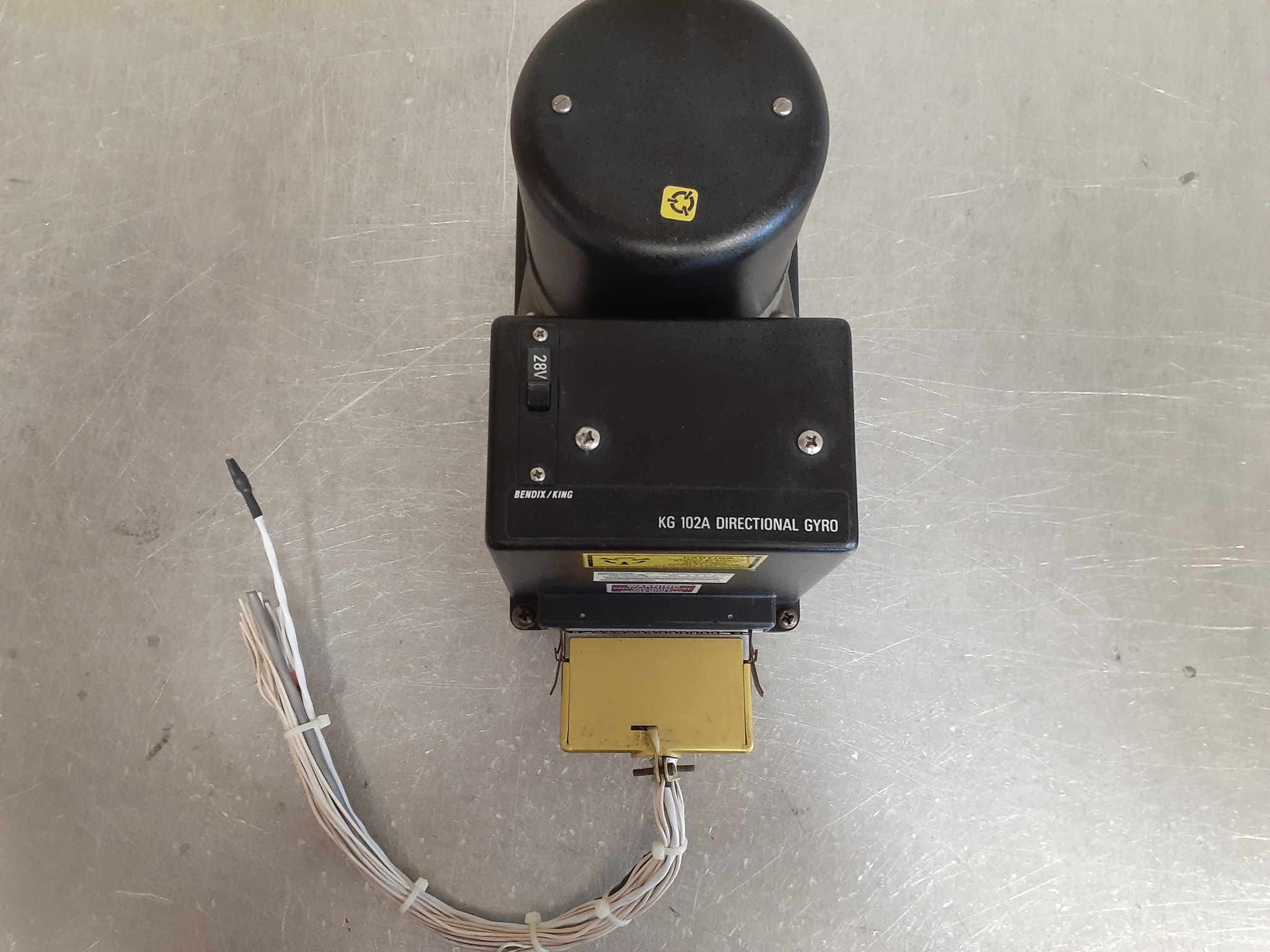

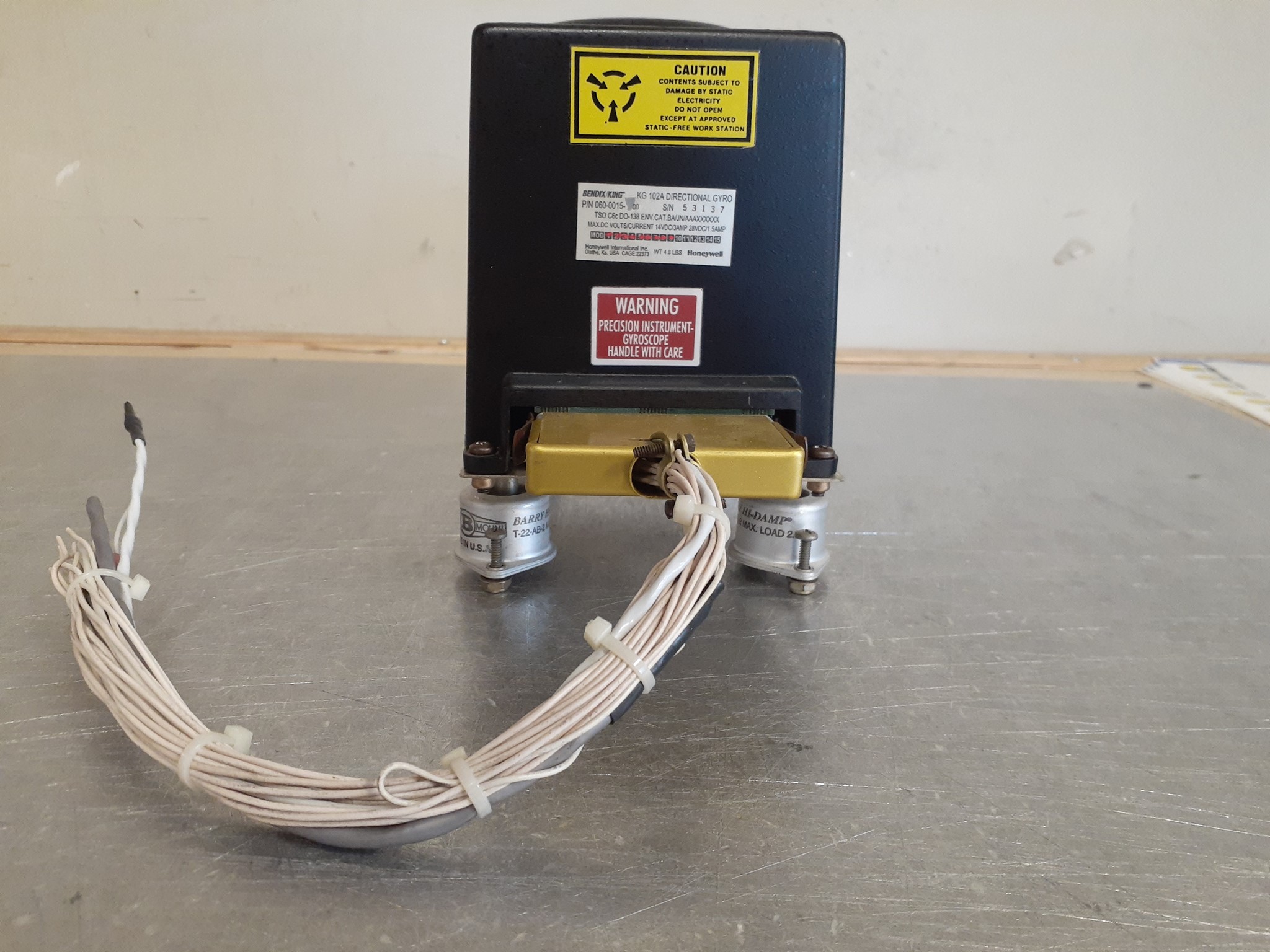

Remote mounted Directional gyro for use in KCS-55A compass system. Used in conjunction with KMT-112 Magnetic Azimuth Transmitter to provide a gyro-stabilized magnetic heading to KI-525A HSI.
- Contains internal power supply which provides excitation voltages for KMT-112 and positive and negative DC voltages for KI-525A and KA-51B
- Size: 5.370" x 7.790" x 4.290"
- Weight: 4.3 lbs.
- Mounting: Shock mounted
- Temperature: -55C to +55C
- Power Inputs: 14VDC, 3.0 amperes or 28VDC, 1.5 amperes
- Signal Inputs: Slaving error control transformer from KI-525A
- Power Outputs: +-15 and +5VDC reference voltages for KI-525A and KA-51B; 7.2VRMS, 400Hz drive signal for primary excitation of KMT-112 and for use in KA-51B
- Signal Outputs: Drive signal for heading loop drive motor in KI-525A; slaving meter drive signal for KA-51B; pin a supplies a ground when compass system is valid

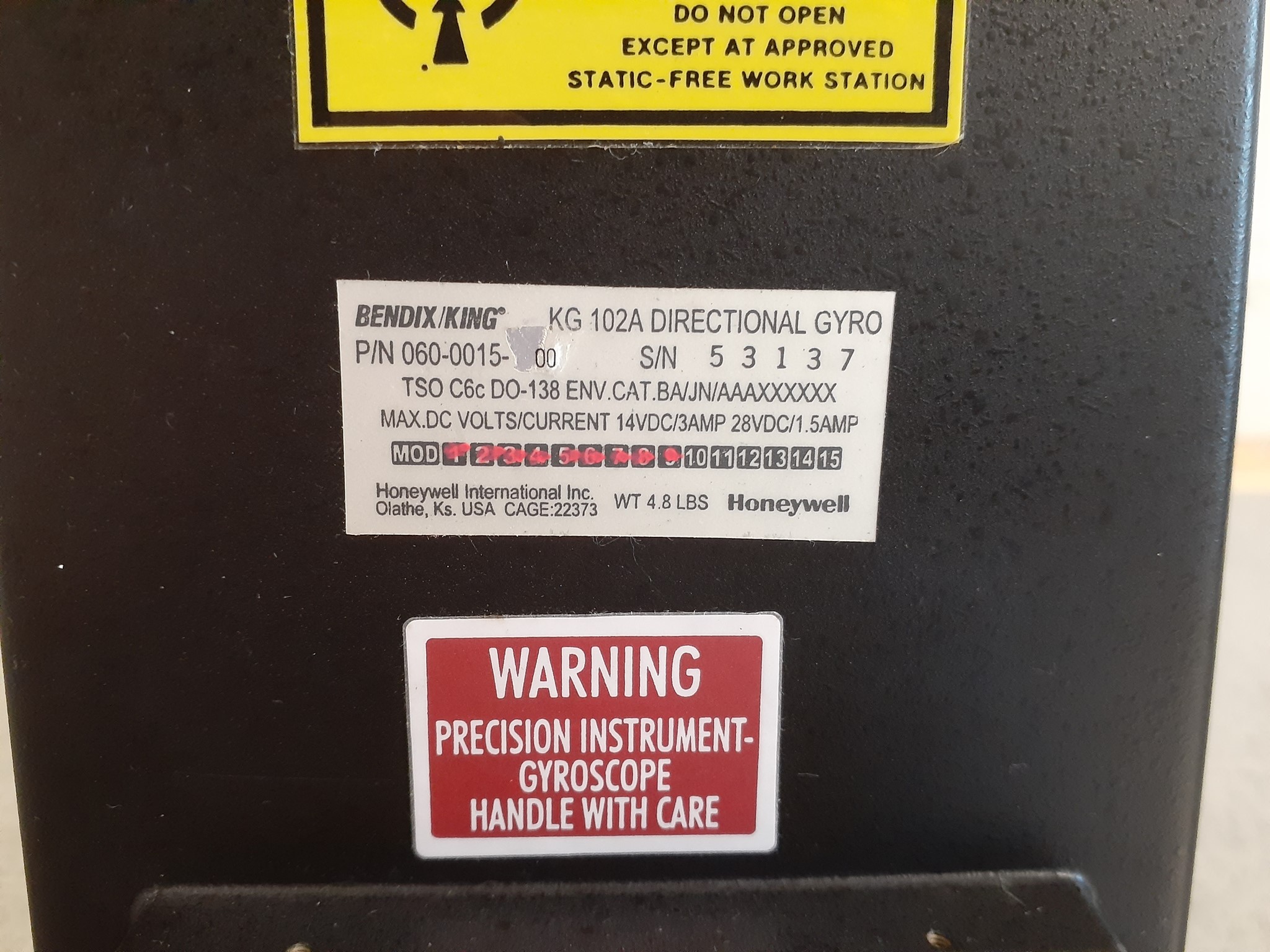

- KG 102A
- Install Kit
