INDICATORS

GI 275 CDI

When installed as a CDI or HSI, the GI 275 is designed to accept a variety of GPS or navigation inputs, allowing up to two GPS sources and two VHF navigation sources.

GI 106B

Price includes install kit.

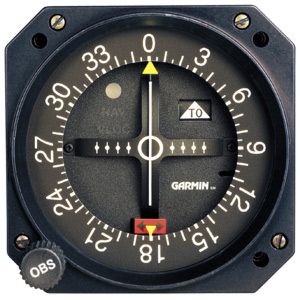

The GI-106B is a redesigned version of the popular GI-102A and GI-106A Course Deviation Indicators. The GI-106B provides customers withfeatures that are instantly familiar, but with several internal and external improvements.

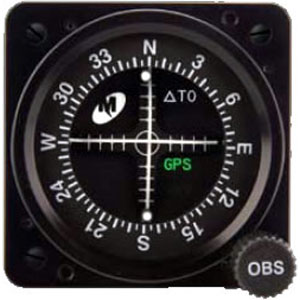

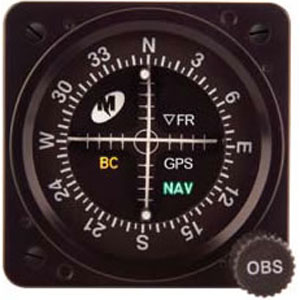

MD222

2", GS/LOC, NAV, GPS, VLOC, With resolver

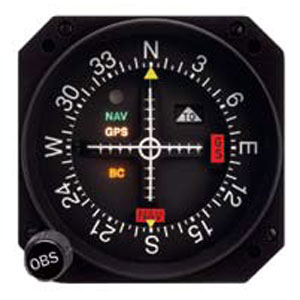

MD200

Available in 2 versions:
MD200-706: 3", Lighted, Glideslope
MD200-707: 3", Lighted, Glideslope and course datum

KI-203

The KI 203 VOR/LOC Indicator has an integral VOR/LOC converter, is rectilinear and is internally lighted. It is used with the KN 53 or KX 155.

TI106

Trig's TI106 is a 3" Course Deviation Indicator, ideally matched for the TX56A and TX57A. Using the latest generation of indicator technology, solid state actuators provide smooth and dependable navigational indications. Use of LED technology for both flags and backlighting provides a superior display compared to older legacy indicators. The TI106 will support most existing Nav/Com equipment, making it a suitable replacement CDI across general aviation.

KI-206

The KI 206 VOR/LOC/Glideslope Indicator is rectilinear and internally lighted. It is used with the KNS 80/81 and KX 165 and, at 400 Hz, the KNR 634 VOR/LOC/GS/MB Receiver. It is available with course datum synchro. TSO'd.

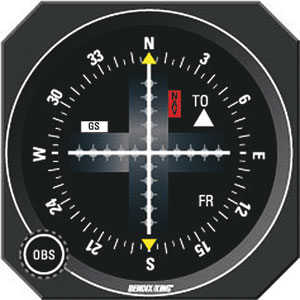

KI-207

The KI 207 VOR/LOC/Glideslope Indicator is rectilinear and internally lighted. It is used with the KNS 80/81 and KX 165 and, at 400 Hz, the KNR 6334 VOR/LOC/GS/MB Receiver. It also includes course datum synchro. TSO'd.

KI-209

The KI 209 VOR/LOC/Glideslope Indicator with built-in VOR/LOC converter has pivoted needle action, a plastic lens and internal lighting. It requires input from an external glideslope receiver.

KI-209A

The KI 209A VOR/LOC/Glideslope Indicator with VOR/LOC Converter and GPS Switching Relays has internal lighting. Internal relays allows for switching between VHF NAV and GPS. It is used with the KX 155 or KX 155A with Glideslope Receiver and the KLN 89, KLN 89 B, or KLN 94.

KI-227

The KI 227 ADF Indicator is used with the KR 87 Digital ADF system. The indicator has a heading knob for manually synchronizing the heading to match the directional gyro heading.

KI-229

The KI 229 RMI displays the magnetic heading of your aircraft (slaved off the KCS 55A or KCS 305 Compass System) and magnetic bearings for both VOR and ADF.

KDI-572

Available in 5V and 14/28V versions.
The KDI 572 DME Master Display offers simultaneous readout of distance, groundspeed and time-to-station. Slant-range distance is computed digitally and displayed up to the maximum range of 389 nm.

KDI-573

The KDI 573 is intended for use as a second display with the KDI 572 or KDI 574 for simultaneous DME display for copilot and crew. There is no selector switch. TSO'd.

KDI-574

The KDI 574 is used with the KDM 706, KN 63 digital DME and KTU 709 TACAN systems. It features simultaneous gas-discharge display of distance, ground speed and TTS, plus annunciation of Nav 1, Hold, Nav 2 and RNAV. There is no selector switch. TSO'd.

M903

The Davtron 903 meets the challenge to produce a small, affordable, lightweight indicator. This computer based instrument is a compact and effective component, enhancing the navigation system. The DVOR reads digitally the aircraft's radial position from the VOR station.

M903ID

Available in Front Mount or Rear Mount versions.
The Davtron 903ID/LOC meets the challenge to produce a small, affordable, lightweight indicator. This computer based instrument is a compact and effective component, enhancing the navigation system. The DVOR reads digitally the aircraft's radial position from the VOR station.

KDI-572 (SV)

All used avionics come with a 90-day guarantee from Sarasota Avionics.
Please call for pricing and availability.

The KDI 572 DME Master Display offers simultaneous readout of distance, groundspeed and time-to-station. Slant-range distance is computed digitally and displayed up to the maximum range of 389 nm.

KI-227 (SV)

All used avionics come with a 90-day guarantee from Sarasota Avionics.
Please call for pricing and availability.

The KI 227 ADF Indicator is used with the KR 87 Digital ADF system. The full system also includes a KR-87 ADF Receiver and a KA-44B antenna. The indicator has a heading knob for manually synchronizing the heading to match the directional gyro heading.

KI-227 (SV)

All used avionics come with a 90-day guarantee from Sarasota Avionics.
Please call for pricing and availability.

The KI 227 ADF Indicator is used with the KR 87 Digital ADF system. The full system also includes a KR-87 ADF Receiver and either a KA-44 Blade ADF Antenna or a KA-44B Low-Profile ADF Antenna. The indicator is synchronized to the KI-525A HSI compass card by rotating SYNC knob.
