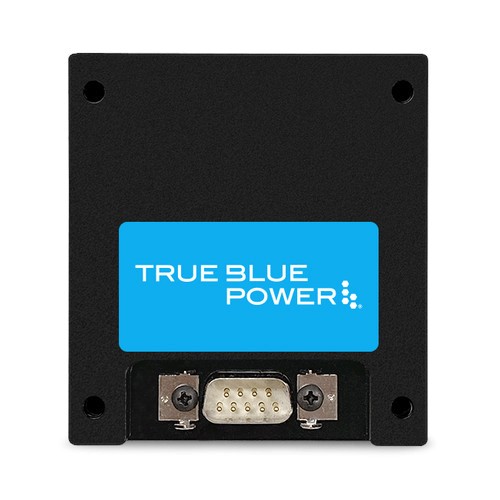

Designed for a 28V electrical bus, the TS6 Emergency Battery Power Supply (EBPS) provides DC power to aircraft electronics when main aircraft power fails, supporting one instrument at a time. The unit can be fully recharged or maintain existing full charge, via the aircraft’s primary power bus. Additional functions include analog state-of-charge, 80% capacity dispatch test, and discharge shutdown.
The TS6 is compatible with Mid-Continent Instruments and Avionics 2-inch digital instruments, the Flex® Custom Function Display, and avionics or components that require 28 VDC input.
- Utilizes Nickel Metal Hydride (NiMH) battery technology
- Unit can be fully recharged, or will maintain existing full charge, via aircraft’s primary power bus

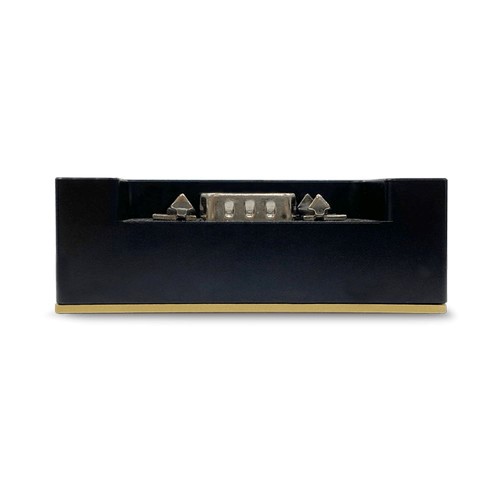

- Rugged metal chassis and DB9-style connector for electrical interface
- Recommended 2-year maintenance cycle (full charge and discharge capacity check)
- Designed and built in Wichita, Kansas USA
- Two-year limited warranty
- FAA TSO Certified
- Capacity: 6 Watt-hour
- Input Voltage: 24.5–32 VDC
- Output Power: 24 VDC nominal 0.25 amps max
- Weight: 0.5 lbs
- Dimensions: 2.75"L x 3.00"W x 0.94"H
- Protection: Short circuit, over temperature, under-voltage, and over-voltage
- Mating Connector: DB9-style (MCIA Kit PN 9019857)
- Certification: Certified to FAA TSO-C173a, Qualified to DO-293A and RTCA DO-160G
