Dynon Avionics SV-NET-15CP

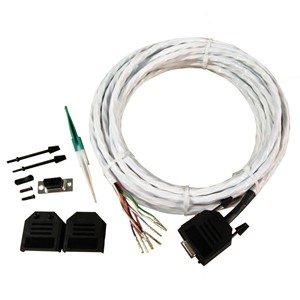

Network Cable (15ft, 1 end with connector, 1 end with pins only)

Dynon Avionics - New - 101269-015


SkyView Network cables are all straight-through 9-wire cables, made of aircraft quality Tefzel wiring to insure quality and safety.

These longer cables are intended to connect a display to an ADAHRS Module located back in the fuselage or wing. Or, for aircraft with a rear engine, they are used to connect to the EMS Module mounted near the aft firewall. One end has only the pins crimped to the wires, so that the cable can be easily routed through bulkhead through-holes, conduits, and other tight paths. Once the cable is installed in the aircraft the pins can be easily affixed to the D9 connector with the included insertion tool.
  • Two sets of twisted wire pairs for two SkyView Network connections (for redundancy)
  • Two sets of 8V Power and Ground wires (for redundancy)
  • One 12 Volt wire
