Compatible, light weight and convenient.

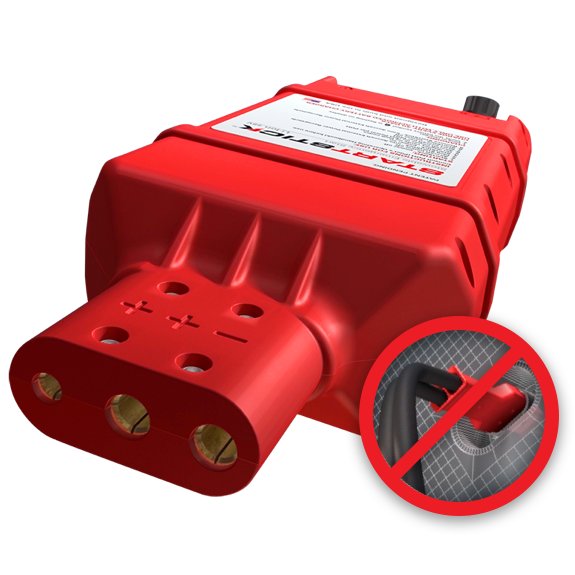

- NATO Connector fits most aircraft Ground Power receptacles
- Applies less load on GPU receptacles than standard cables
- Cable-less compact design makes it easy to use and stow

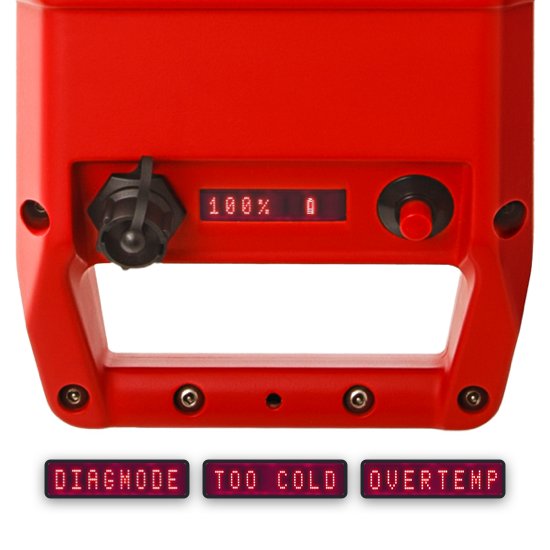

Multi-function display and control cluster.
- Sunlight readable display shows battery status and capacity at glance
- Front panel puts the power button and charge port at your fingertips

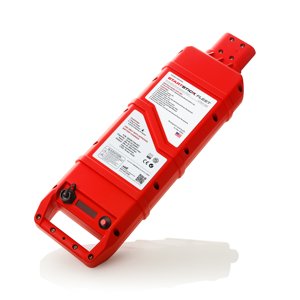

Manufactured to be tough and long lasting.
- Durable casing built to withstand the toughest treatment
- A123 Lithium Nano-phosphate cells deliver all the power you need
- Built in the USA
- Ideal for ramp maintenance, emergency starts and database updates
- Over and under voltage protection
- Over current and short circuit protection
- State of charge and voltage display
- In-flight Charging (using optional receptacle)
- 2.8 hours for complete recharge when the battery is fully discharged
- On-board diagnostics
Mechanical Specifications
- Weight: 14.9 lbs
- Load on GPU Connector: 52.1 lbs/foot
- Length: 21.21"
- Width: 6.19"
- Height: 3"
Electrical Specifications
- Capacity: 14.7 Ah
- Capacity (lead acid equivalent): 29.4 Ah
- Nominal Voltage26.4 Volts26.4 Volts
- Max current (10 sec limit): 720 Amps
- Max current (Continuous) 300 Amps
- Max current (Protection off): 38800 Amps
- Max current (Protection on): 1350 Amps
- Operating Temperature: -30 to 60 degrees
- AC Charger Input Voltage: 110/240 Volts
- In-Flight Charge Circuit Rating: 5 Amps
- Charge Rate (software regulated): 3.5 Amps
Battery Life
- Number of starts per charge: 3-4
- Time before discharge: 44 minutes
- Charge Cycles: >1,000
- Engine Starts: 3,000 - 4,000
- Charge Time (after one start): 25-35 minutes
- Charge Time (dead battery): 4.2 hours
- Startstick 15
- 120/220V 50/60hzs battery charger

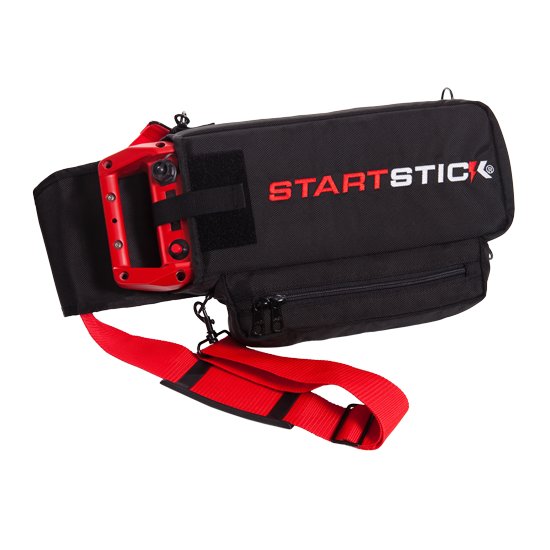

Optional Bag:
- Made from tough Ballasic Nylon
- Durable D-Rings facilitate tie-downs
- Velcro flap allows the StartStick to be charged while in the bag
