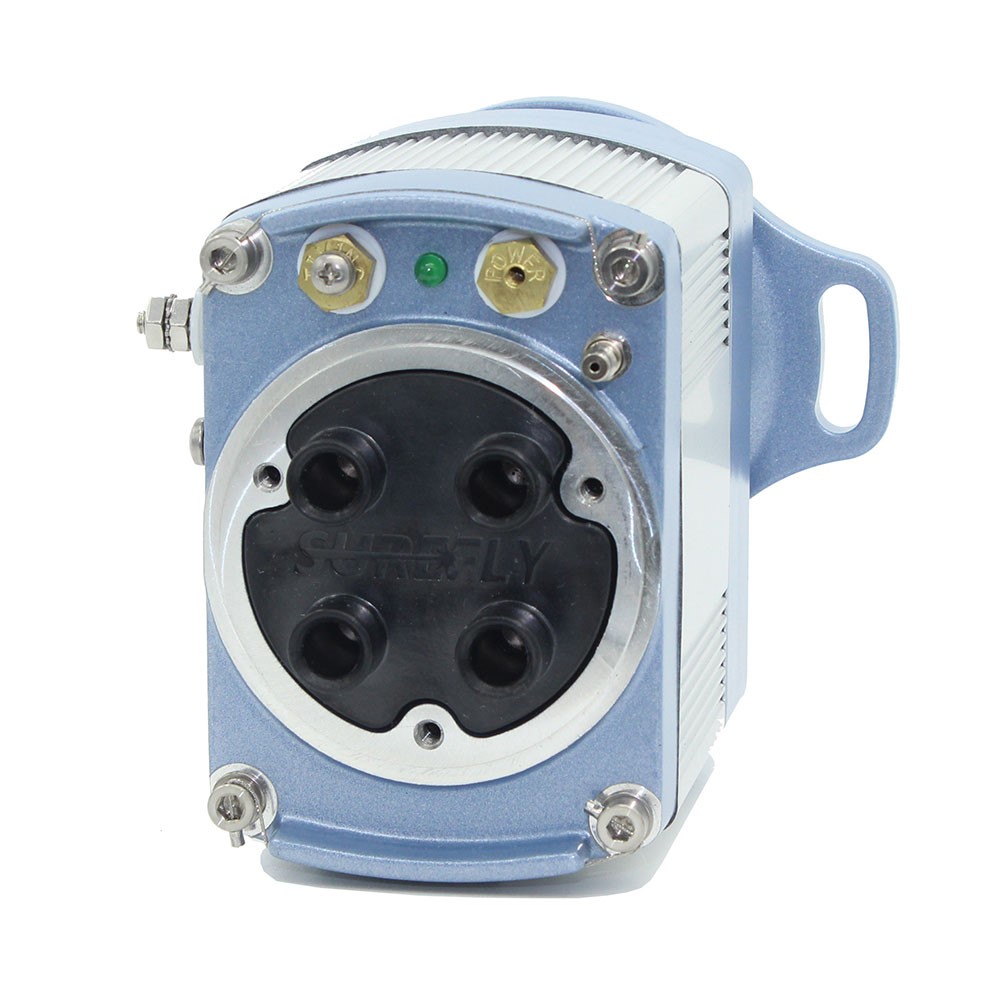

Replaces 4-cylinder non-impulse coupled magnetos on Lycoming & Continental engines.
Intelligent Timing Advance
For non-turbocharged engines, SureFly controls spark advance up to 38º before TDC as determined by manifold pressure and RPM (engine power setting). Each engine's base timing advance is read off the data plate and set into the SureFly Ignition Module or, "SIM" at installation. The timing advance schedule is hard set at the factory, when the SIM is manufactured, to provide the highest possible combustion efficiency.
No Mechanical Points
Not only are points and condensers a point of failure in magneto ignitions, so are rotors and caps as they carbon track and provide alternate paths to ground as resistance builds in the system. That's why SureFly utilizes none of these antiquated technologies. SureFly components are all solid state and industrial-grade electronics.
The result is zero maintenance, zero overhauls, no rebuilds, and no maintenance costs whatsoever! Nothing to wear. Nothing to maintain. Run it to 2,400 hours of SIM operation.
- Reliability: For SureFly customers, 500 hours is simply not good enough. SureFly Ignition Modules provide operators a 2,400 hour operating service time. No inspections, no rebuilds, no overhauls. That prevents scheduling headaches and down time. That saves money. Period.
- Safety: SureFly Ignition Modules have no mechanical parts that wear and all solid-state electronics. There's no need to disassemble a SIM like a magneto every 500 hours - which eliminates the chance of introducing a maintenance related failure.
- Performance: SureFly Ignition Modules deliver a more consistent spark energy with higher accuracy than traditional magnetos. Variable timing advance provides SureFly customers real fuel savings. Low power consumption and light weight (up to 2 lbs. lighter than a Bendix magneto) make SureFly Ignition Modules light on fuel and light on the wallet too.
- Better Starts: SureFly perfectly controls timing at TDC below 400 rpm which combined with longer spark dwell and the option to use wider gapped spark plugs, makes starting a breeze, greatly minimizing wear and tear on high performance starters and electrical systems.
- Trusted: SureFly Ignition Modules are hand built in Granbury, Texas almost entirely from components manufactured in Texas and Michigan. Designed, engineered, created and supported by the same team that brought you Sky-Tec starters and Plane-Power alternators, our approach to SureFly shares the same commitment, experience and passion for creating and bringing sensible, affordable solutions to the piston engine aviation market.
- Value: With the low cost of the units, combined with SureFly's potential fuel savings and low maintenance/replacement costs, there is simply no better value in magneto replacements for Lycoming and Continental engines.
- Weight: 4.0 lbs
- Solid State Electronics
- Minimal moving parts – input shaft, two sealed bearing, and oil seal
- Wasted Spark system
- Aviation spark plugs – gapped .022 to .035
- Slick style harness – Shielded aviation harness
- Input voltage 8.5-30.0 VDC*
- Avg. Current @2700 600mA (4 Cyl.), 1.1A ( 6 cyl.)
- Up to 38 degrees Ignition advance – RPM & MP based
- Hall Effect sensors provide velocity and position input
- Manifold pressure sensor range – 5-45 inHg
- Operational temp range -35 to 250 F
- No interval inspections
- RPM range 0-3500
- 45mJ spark energy
- Starting: Retards spark to TDC w/full spark energy
- SureFly Ignition Module (SIM)
- Power wire harness (84" long 14ga. wire with inline fuse holder, 10A fuse & ring terminals) If your battery is located in the tail of your aircraft, you will need to purchase a longer power wire.
- Manifold pressure hose (36" long 1/8"ID x 1/4"OD high temp. rubber hose)
- Engine STC paperwork
- Airframe STC paperwork
