Simple to install and equipped for a multitude of applications, the MaxDim controller is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At less than an ounce the device is very light and it produces a negligible amount of heat so that heavy heat sinks are not needed.
- This solid-state device provides dimming control for aircraft (as well as other applications) in an efficient, compact design
- Can be used to control standard incandescent, halogen, high-intensity LED lights, pre-inverter electroluminescent strips, pre-inverter UMA lighting, Nulites, and cabin glare shield LED strips
- Controls up to 350 watts
- Fully self-contained with no separate control modules
- No requirement for heat sinks due to negligible heat production
- Simple installation process
- STC, FAA, and PMA approved for a range of aircraft
- Equipped with either spade lugs ("A") or screw-on ring lug terminals ("B")
- Weight: 0.58 oz (16.6g)

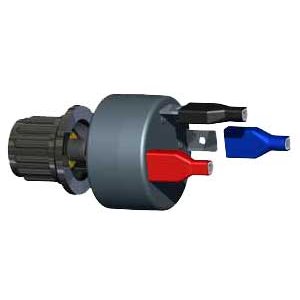

MaxDim "A" Model
- 12-35 volts @ 12.5 Amps
- Controlled Output: 0 to 12-35 VDC - 0 to 12.5 A
- Capacity: 150 Watts @12 VDC, 350 Watts @28 VDC, 437 Watts @35 VDC
MaxDim "B" Model
- 12-35 volts @ 15 Amps
- Controlled Output: 0 to 12-35 VDC - 0 to 15 A
- Capacity: 180 Watts @12 VDC, 360 Watts @24 VDC, 420 Watts @28 VDC, 525 Watts @35 VDC
- MaxDim unit
- Installation instructions
- Color coded terminals

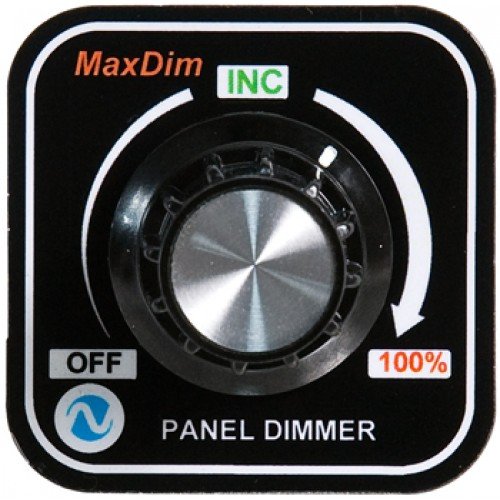

- Reference panel label
- STC printout for your logs
- Installation template
- Knob
- All hardware needed for the install
- Allen wrenches for tightening terminal connections and knob set screws
