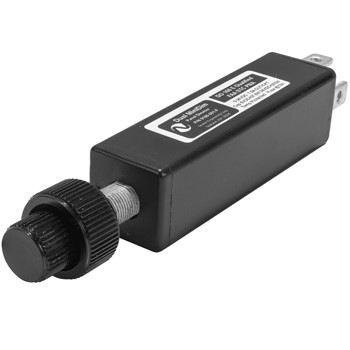

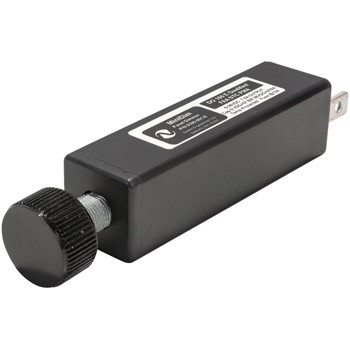

The MaxDim control unit is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At less than an ounce the device is very light and produces a negligible amount of heat so that heavy heat sinks are not needed.
- Controls two 5A circuits

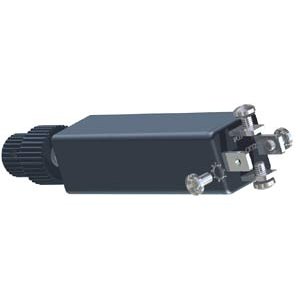

- Equipped with ring lug terminals
- Solderless crimp ring connectors and reference panel label included
- Simple installation process equipped for a multitude of applications
- Solid-state device with efficient, compact design
- Fully self-contained with no separate control modules
- No requirement for heat sinks due to negligible heat production
- Controls standard incandescent, halogen, high-intensity LED lights, pre-inverter electroluminescent strips, pre-inverter UMA lighting, Nulites, and cabin glare shield LED strips
- FAA, STC, and PMA approved, RTCA/DO-160E Qualified
- Weight: 0.58 oz (16.6g)
- Dimensions (Panel label): 1.6" diameter
- Dimensions (Control unit): 0.80" x 3" x 0.80"
- Capacity: 25 Watts @5 VDC per circuit, 60 Watts @12 VDC per circuit, 120 Watts @24 VDC per circuit, 140 Watts @28 VDC per circuit, 175 Watts @35 VDC per circuit
- Voltage range: 12 to 35 VDC
- Max current: 5 A
- Controlled output: 0 to 12/35 VDC, 0 to 5 A
- Potentiometer rotation: 270º
- Rotational life: 500k turns
- Operating temperature: -30°C to +65°C
- Approvals: FAA PMA STC SA01800SE, RTCA/DO-160E Tested/Qualified
