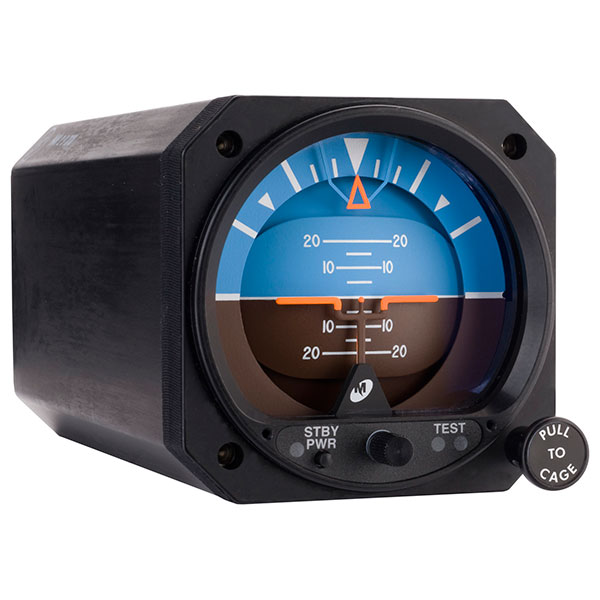

The only attitude indicator with a selfcontained battery backup, the Lifesaver® provides one hour of emergency attitude reference in the event of power failure. With 7,500 hours MTBF – more than double the competition – it is an exceptional value. TSO approved. Added safety, ease of installation and cost-benefit make this an ideal primary or standby artificial horizon.

  • Custom versions available to match existing instrument/EFIS displays
  • Lifesaver® self-contained battery backup features: One hour of emergency power*, Built-in annunciation, Internal emergency lighting
  • A safe alternative to unreliable vacuum systems
  • Single connector installation for primary and optional standby battery models
  • Exceptional Value – 7,500 hours MTBF, more than double the life of most electric gyros
  • Perfect for use as a primary or standby artificial horizon in fixed-wing aircraft and helicopters
  • 10–32 volt DC operation for use in both 14 and 28 volt aircraft
  • Anti-reflective glass enhances visibility and reduces fatigue
  • Field replaceable lighting
  • Approved to FAA TSO-C4c and RTCA/DO-160D certified
  • Qualified to DO-160 for helicopter vibration
  • Designed and built in Wichita, Kansas, USA
  • One year limited warranty

  • Weight: 3.7 lbs.
  • Length: 8.6"
  • Battery: Rechargeable, sealed lead-acid cells
  • Battery Life: 3 years in average aircraft environment
  • Battery Runtime: 60 minutes minimum, when fully charged and properly maintained
  • Lighting: 5, 14 or 28 VDC Incandescent; field-replaceable tray wired through main connector
