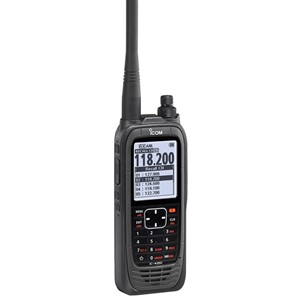

The A25 series is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. The handheld includes a large 2350mAh Li-ion battery, providing a long operating time. The easy-to-use interface and large 2.3-inch LCD display combine to provide stress-free programming and in-flight operation. Built-in Bluetooth®, GPS and VOR navigation are available in the A25N NAV/COM version.

Large easy to use LCD

The A25’s large 2.3-inch LCD provides user-friendly, graphic screens. The day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark.



Navigation functions

Built-in GPS and Bluetooth® redefined navigation in the A25N. Design flight plans with an Android™ or iOS™ device and import them into the A25 with the Bluetooth® feature. While using GPS, the waypoint NAV will guide pilots to their destination. Up to 10 flight plans and 300 waypoints can be stored in the A25. Other navigational features, like VOR indicators, can help keep a pilot’s heading precise and alert them if they divert from course. All these functions and more increase safety up in the air.

VOR Navigation Functions

  • CDI (Course Deviation Indicator) looks like a real VOR instrument and displays any deviation from your course.
  • OBS (Omni Bearing Selector) enables you to change course from your original flight plan.
  • TO-FROM indicator shows the position relationship between your aircraft and the course selected by the OBS.
  • ABSS (Automatic Bearing Set System) enables you to set the current course as a new course.

"Flip-Flop" Channel Recall

The IC-A25N/C stores the last 10 channels used. You can easily recall those channels by using the directional keys or the channel knob on the top panel. This is convenient for switching between several channels, such as NAV and COM channels.

Built-in GPS with Simplifed Waypoint NAV

The simplified waypoint NAV guides you to a destination by using current position information from GPS (also GLONASS and SBAS). The waypoint NAV has two functions: Direct-To NAV and Flight Plan NAV. In the Direct-To NAV, the IC-A25N directly guides you to a specified waypoint. In the Flight Plan NAV, the transceiver guides you to a sequential series of waypoints. Up to 10 flight plans and 300 waypoints can be memorized in the IC-A25N. Position information imported from an Android/iOS device* can be used as a waypoint.

Flight Plans with AndroidTM /iOSTM App

Using the RS-AERO1A (Android) or RS-AERO1I (iOS) application, you can make flight plans on an Android/iOS device and import the plan into the IC-A25N via Bluetooth. The following four functions are available:

  • Create a flight plan: You can make flight plans on an Android/iOS device by using preprogrammed waypoints.
  • Set Direct-To NAV: You can select a point on the map and export it to the IC-A25N for Direct-To NAV.
  • Display flight plan information: A flight plan in the IC-A25N can be displayed on an Android/iOS device.
  • Display waypoint information: Preprogrammed waypoints can be exported to an Android/iOS device and plotted on an map application.

Near Station Search Function

The near station search function assists you in accessing nearby ground stations. The function searches for nearby stations using the station memories that have GPS position information. To use the near station search function, position data and frequencies of the ground stations must be programmed.

Built-in Bluetooth® for Hands-Free Operation

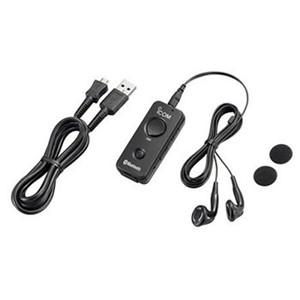

A third-party wireless Bluetooth® headset provides convenient hands-free operation. Also, using the optional VS-3 Bluetooth® headset, the side tone function can be used.

Class-Leading High Power RF Output

Output power is increased to approximately 6 W typical (PEP) and 1.8 W typical (carrier) compared to the IC-A24 (5/1.5 W (PEP/carrier)). This expands the communication coverage and enhances the safety of aircraft operation.

Easy-to-Use Interface

Often used functions are assigned to the 10 keypad and you can directly access a desired function. The enlarged flat sheet keypad offers smooth and swift operation.

"Flip-Flop" Channel Recall

The IC-A25N/C stores the last 10 channels used. You can easily recall those channels by using the directional keys or the channel knob on the top panel. This is convenient for switching between several channels, such as NAV and COM channels.

Intelligent Battery with Detailed Battery Status

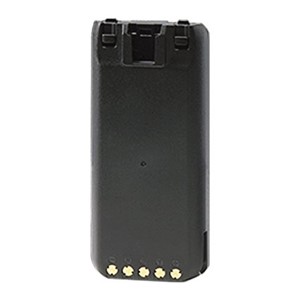

The supplied BP-288, 2350 mAh (typical) intelligent battery pack, provides up to 10.5 hours* of operating time. You can check the condition of the battery pack in the battery status screen. It is very useful for optimum charging and battery health maintenance.
*Typical operation with Tx: Rx (Max.audio): standby=5:5:90. (Bluetooth OFF, GPS ON)

  • "Flip-flop" channel recall
  • Smart battery with detailed battery status
  • 121.5MHz emergency key
  • Weather channels
  • Priority watch
  • VFO scan, memory-channel scan, priority scan
  • IP57 dust-protection and waterproof construction

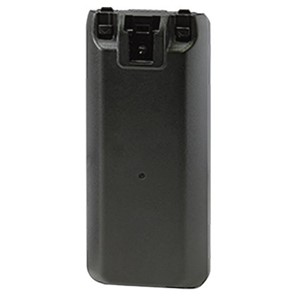

  • Operate with six AA size alkaline batteries with the BP-289 battery case
  • BNC Antenna
  • ANL (Auto Noise Limiter) for noise reduction
  • Side tone function
  • Internal VOX capability
  • 300 memory channels (in 15 memory groups) with 12 character names
  • 8.33kHz channel spacing

  • Antenna, FA-B02AR
  • Battery pack, BP-288
  • Belt clip, MB-133

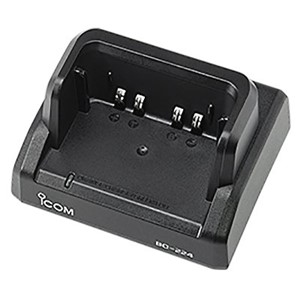

  • BC-224 Rapid Charger

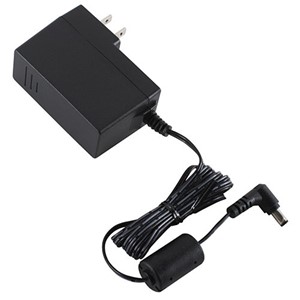

  • BC-123SA AC adapter
  • Headset adapter, OPC-2379
  • Hand strap
