MEET YOUR COMM NEEDS — AND MORE
Save space with the remote-mount GTR 205R COMM radio and add advanced communication and audio capabilities to your panel.
SAVE VALUABLE PANEL SPACE WITH REMOTE MOUNTING
CONTROL GTR 205R WITH YOUR AXIS™ FLIGHT DISPLAY
GET A TWO-PLACE INTERCOM WITH THIS ALL-IN-ONE COMM RADIO
USE YOUR FLIGHT DISPLAY’S DATABASE TO FIND AND SELECT A FACILITY FREQUENCY
MONITOR YOUR STANDBY COMM FREQUENCY
USE 3D AUDIO PROCESSING TO HELP DIFFERENTIATE BETWEEN SOURCES

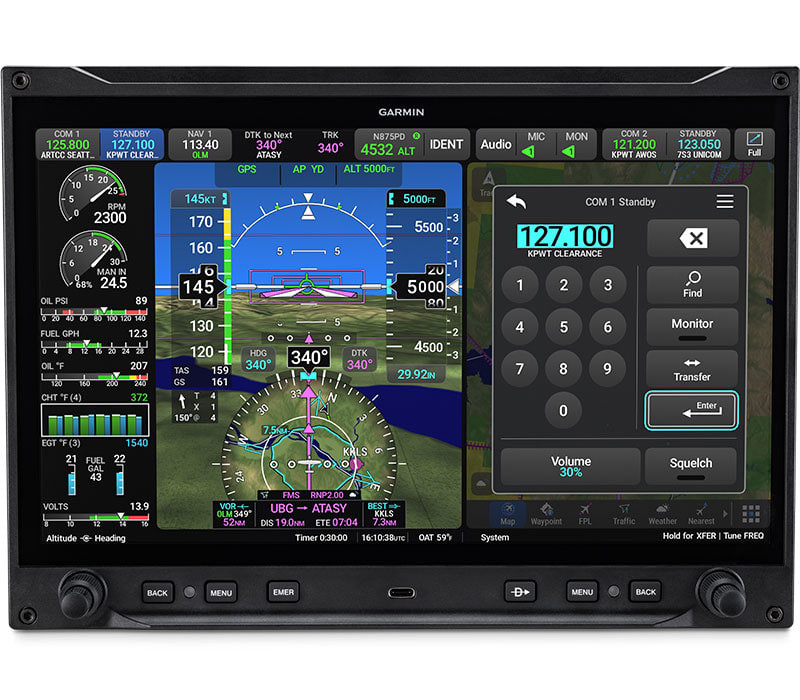

VHF COMM TRANSCEIVER
The 2,280-channel-capable VHF COMM radio offers 10 watts of transmit power plus pilot-selectable 25 kHz or 8.33 kHz channel spacing. Simply tap the standby position to enter or find your frequency, then tap the active frequency to switch.

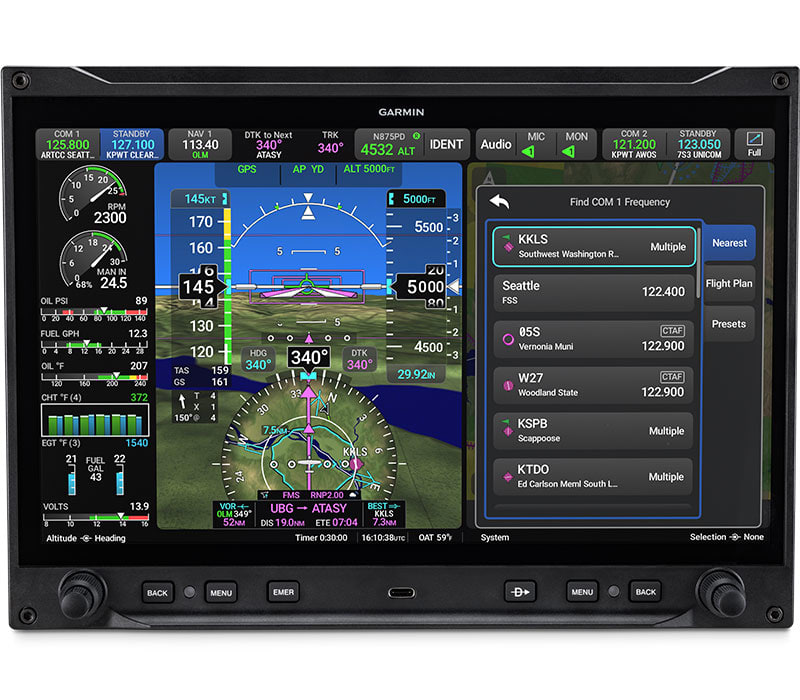

FIND A FREQUENCY

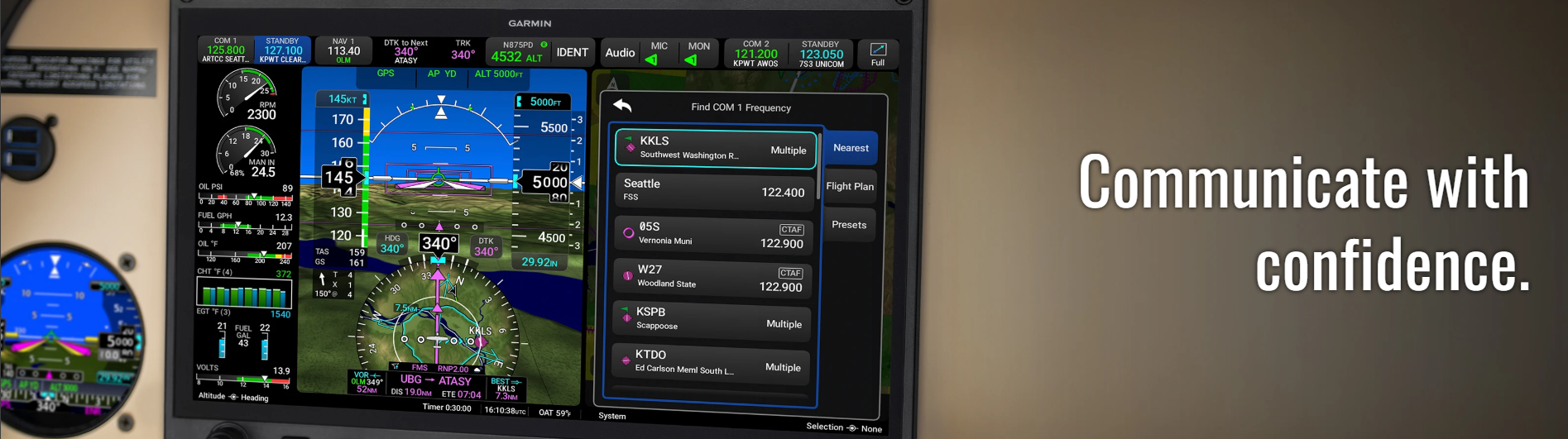

Enter an airport identifier into your AXIS flight display to look up frequencies for that location (tower, ground, ATIS, clearance delivery and more). Then, send the selected frequency to the standby position on the GTR 205R radio.

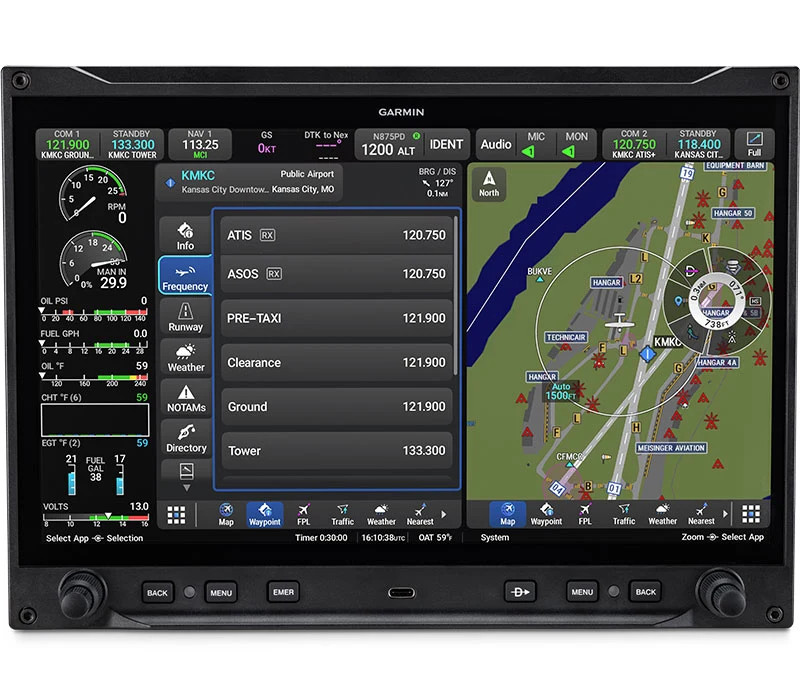

FREQUENCY ID
The GPS on your AXIS flight display enables frequency ID to show your tuned frequency’s identifier and type, including tower, ATIS, center and more. So you know who you’re talking to.

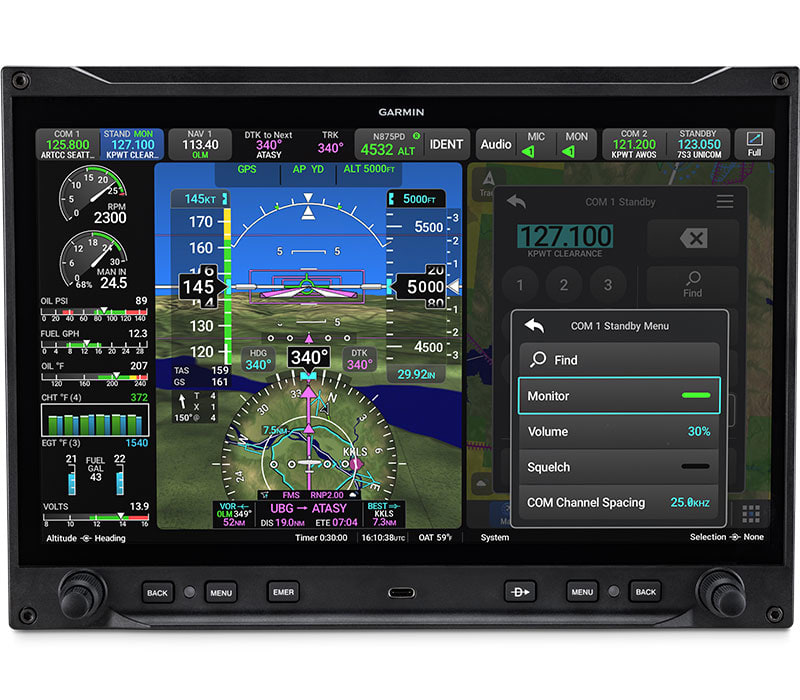

STANDBY COMM MONITORING
Listen to a standby frequency, such as ATIS, without leaving your active channel.

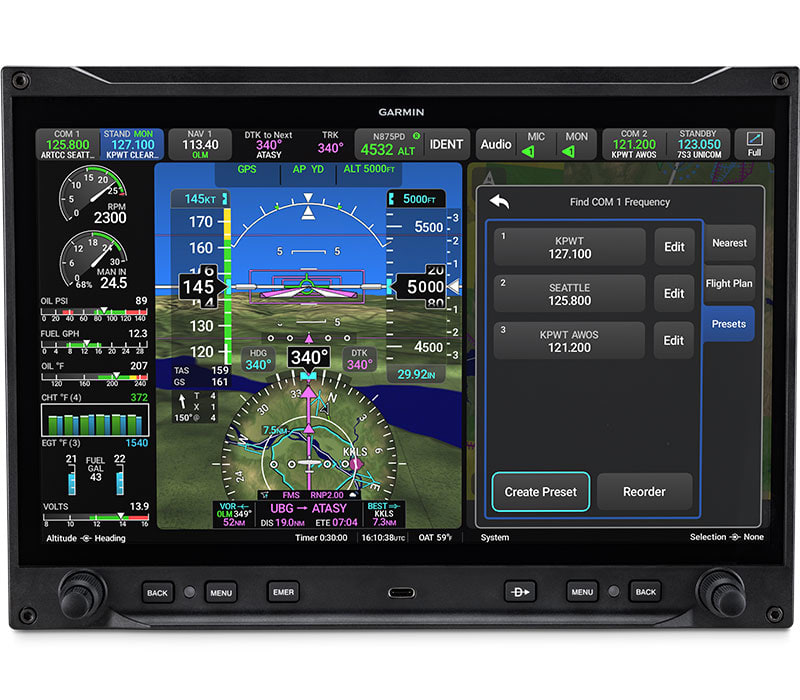

INSTANT RECALL
With frequency memory and recall, you can quickly tune your most frequently or recently used frequencies.
TWO-PLACE INTERCOM
Communicate clearly with your passenger via the built-in intercom. The pilot-isolate feature allows you to focus on COMM radio communications or lets your passenger listen to music without radio interruptions.
AUTO SQUELCH TECHNOLOGY
Auto squelch allows GTR 205R to automatically sense noise levels in the cockpit and adjust the mic squelch for easy intercom use regardless of the cockpit noise level.
3D AUDIO PROCESSING
With your stereo headset, hear each audio source as if it’s coming from a unique location — so it’s easier to differentiate between sources.
EQ SETTINGS
Music settings allow you to select enhanced bass boost levels as well as equalizer effects that include rock, classical and pop audio profiles.
AUXILIARY INPUTS
The GTR 205R radio is capable of up to 4 AUX inputs, including 2 channels for stereo audio plus mono audio alerts and more.
Performance:
- Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing Frequency range: 118.000 to 136.992 MHz
- Transmit power: 10 watts
- Input voltage range: 9 to 33 VDC
- Operating temperature range: -20 to +55 C
Physical:
- Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
- Weight: 2.0 lbs (1 kg), unit only; 2.6 lbs (1.4 kg), with mounting rack and connectors
- Depth: 10.32" (26.21 cm) behind panel, including mounting rack and connectors

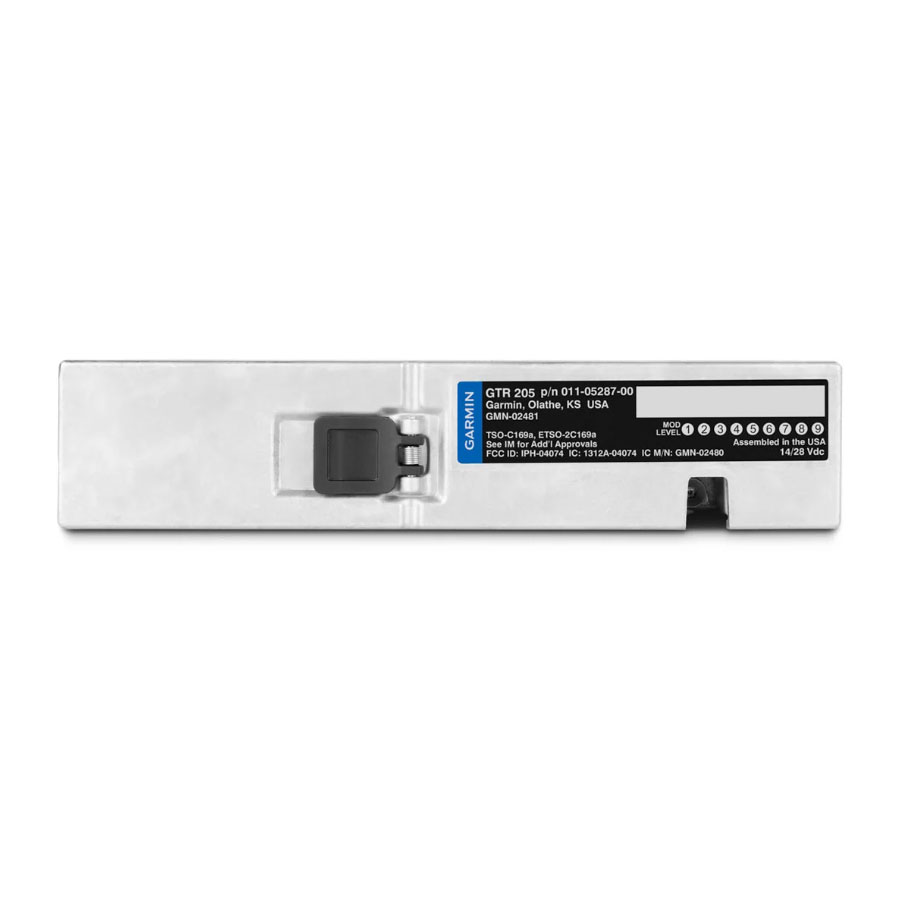

- GTR 205R
- Installation rack
- Connector kit
