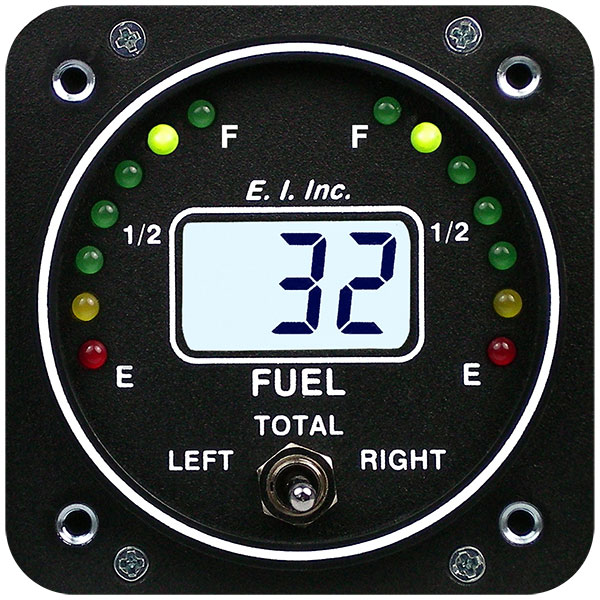

The FL-2 offers pilots digital fuel levels, with unprecedented accuracy, for dual fuel tanks. Not only does the FL-2 display each tank digitally, it also provides 90′ graphical arcs for immediate, quick reference of each tank’s level. The FL-2 can be ordered to work with resistive probes (FL-2R-12 or FL-2R-24, depending on 12 or 24 volts), capacitive probes (FL-2CA) or 0-5 volt output, (such as with some Skysports probes (FL-2V). Please be sure to specify which model you need when you order your FL-2.
The FL-2 is not STC’d for installation in a certified aircraft.
- Programmable Fuel Slosh Stabilization
- Warnings: 1/4 Tank Warning (Yellow LED) and 1/8 Tank Low Fuel Warning (Red LED)
- Specifications: 2.5” x 2.5” x 3.65” Deep, 2 1/4” Flush Mount
- Weight: 10 oz.
- Viewable in direct sunlight
- Backlit
- Power Requirements: 7.5 to 35 volts; Typical: 0.1 amps @ 12 Volts
- FL-2 Instrument
- Wire Harness
- Operating & Installation Instructions
