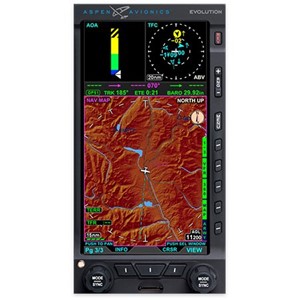

The Evolution 500 MFD (Multi-function Display) MAX provides the same great MFD features as the 1000 MFD MAX at a lower price by eliminating the duplicate sensor set and the ability to serve as a primary flight display backup. It's a perfect solution for the pilot who wants a more affordable glass panel expansion. It's the perfect combination when considering adding that second (or third) display to round out out your glass cockpit six-pack replacement.
- Vibrant colors with the latest aviation glass
- Higher reliability and faster refresh rates with the lates generation processors
- Chart and countdown timers
- Height above ground level (AGL) on navigation map and terrain maps
- METAR flags on navigation maps
- Section-style moving maps with hazard awareness overlays
- Customizable screen layouts
- Charts and geo-referenced airport diagrams
- Built-in backup battery
General Specifications:
- Overall Dimensions: 3.50” W x 7.00”H x 4.15”D
- Weight: 2.9 lbs. with mounting bracket
- Display Type: 6.0” Diagonal TFT Active Matrix LCD
- Display Resolution: 400x760
- Display Backlight: High Intensity White LED
- Display Colors: 32,768
Operational Specifications:
- Operating Temp: -20°C to +55°C
- Storage Temp: -55°C to +85°C
- Max Operating Altitude (unpress.): 35,000 ft.
- Cooling: Integral Fan
- Max Humidity: 95% at 50°C
- Input Voltage: +8 to +32 Volts DC
- Max Current: 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc
I/O Specifications:
- ARINC 429 Inputs: 5 Low Speed
- ARINC 429 Outputs: 1 Low Speed
- RS-232 Inputs: 5
- RS-232 Outputs: 3
- Pitot / Static: Quick Connect
- Certification Specifications: FAA and EASA Technical Standard Orders, TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113
- Software: RTCA DO-178B Level C
- Environmental: RTCA DO-160E
Each MFD500 MAX System includes display, configuration module, SD Card, installation kit and pilot document kit.
The standard kit includes the following:
- 925-00106-001 MFD500 MAX System
- 910-00001-013 Display Assembly, EFD500 MFD MAX - Internal Battery
- 903-00004-001 Installation Kit, EFD500 Display Assembly
- 430-00006-001 Micro SD Card W/Americas Database, w/charts - 16GB
- 920-00004-005 Configuration Module, EFD500 MFD
- 990-00005-001 Pilot Document Kit, MFD
