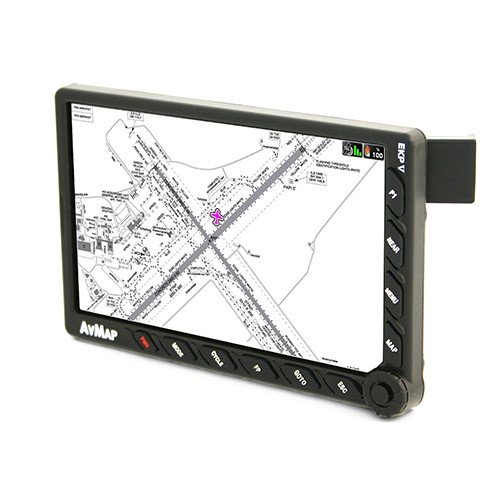

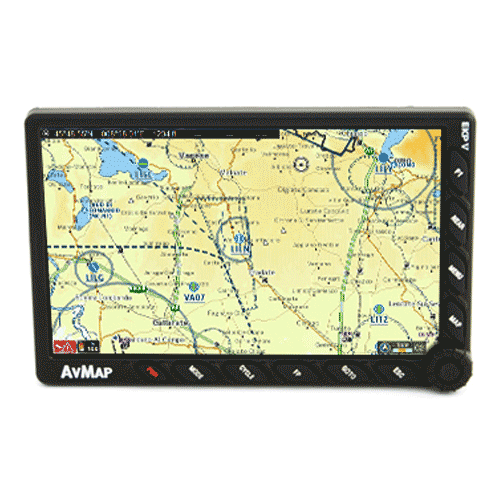

AvMap presents EKP V the next step in the evolution of aeronautical GPS, redefining the role of the GPS inside the cockpit.

Fully Portable

A brilliant 7” display, with built-in battery and GPS, only 0.8” thick. EKP V is slim and light, yet very powerful: with built in u-blox 5 GPS receiver, built-in battery and speakers.

Offering full Connectivity

Thanks to the special Docking Station, you can connect EKP V to several on-board devices at the same time (autopilot, XM WX, CAS, EIS, EFIS etc.) so that the large 7” LCD becomes multifunctional and capable to display different flight info.

Fully Customizable

Easily change the layout choosing what to see and where to display it: maps, taws, weather, vertical profile on map, nav data, HSI, EFIS. Set different PROFILES for different aircrafts with different settings for taws, selective display and even different hard keys configurations.

User Friendly

The new practical keyboard includes a configurable key, a progressive jostick and a smart wheel selector. Ease of use is ensured by the new graphic interface and the full qwerty virtual keyboard.

  • Horizontal / Vertical view
  • Night Vision
  • Vertical profile on map
  • Flight plan vertical profile: you can set the waypoints altitude
  • Full flight planning capability (up to 15 flight plans of up to 100 legs each)
  • Editable aircraft checklist
  • Full simulator functions
  • Fully customizable display: choose what to see and where! TAWS, weather, vertical profile, nav data, HIS, EFIS (GPS based).
  • Integration with other onboard devices: EFIS, autopilot, external antenna, WXXM, CAS
  • TAWS: Terrain Awareness and Warning System available worldwide
  • Crossed Airspace Predictor and Advisor
  • Safe Route predictor and advisor
  • Full qwerty virtual keyboard
  • Customizable aircraft PROFILES; set a profile for each aicraft with different
  • TAWS settings, selective display etc
  • Selective display
  • Compatible with AvMap INCAS BB or other Collision Avoidance Systems
  • Compatible with XM Satellite Weather (service avilable in North America only)
  • Save waypoints and tracks and view them in Google Earth
  • Keyboard with 10 keys with F1 configurable key
  • Progressive Joystick + smart wheel selector

  • Dimensions: 4.3” x 6.8” x 0.8”
  • Weight: 14 Oz
  • Display size: 7” (16:9) 4.75” x 7” x 1.5”
  • Display type: Color LCD TFT
  • Display resolution: 800 x 480 pixels
  • GPS receiver: built-in u-blox 5 high sensitivity with WAAS position accuracy
  • RAM: 256 MB
  • Memory Support: Micro SD preloaded with software and maps
  • Black Box function: last 10 minutes flight data record
  • Power supply: external 10/35 V DC with cable adapter
  • Battery: removable, rechargeable lithium-Ion
  • Consumption: max 10 Watt
  • USB OTG master / slave
