The Avionics Networks Pilot Kit is a self-contained, aviation-grade, carry-on system designed to bring plug-and-play in-flight connectivity to general aviation and rotorcraft platforms.
Speed/Bandwidth
The observed bandwidth ranges from 5 Mbps (worst case) to 157 Mbps (best case) for both upload and download. Actual performance will vary depending on atmospheric conditions, antenna orientation, and the size and clarity of the window through which the system operates.
Power is supplied via:
- USB-C 100W cable (True Blue Power or equivalent)
- 12V cigarette lighter adapter
Optional custom hardwire kits may be available upon request.
- The lightweight and compact design is optimized for carry-on deployment and quick removal.
Weight
- Starlink Mini Antenna: ~1.1 kg (2.4 lbs)
- Mounting System + Bracket + Restraint: < 550 g (1.2 lbs)
- Total System (including cables and case): ~3.0–3.5 kg (6.6–7.7 lbs)
Minimum Power Requirement
- Input: 12–28V DC
- Draw: 20W during normal operation
- Peak: 60W (typical max)

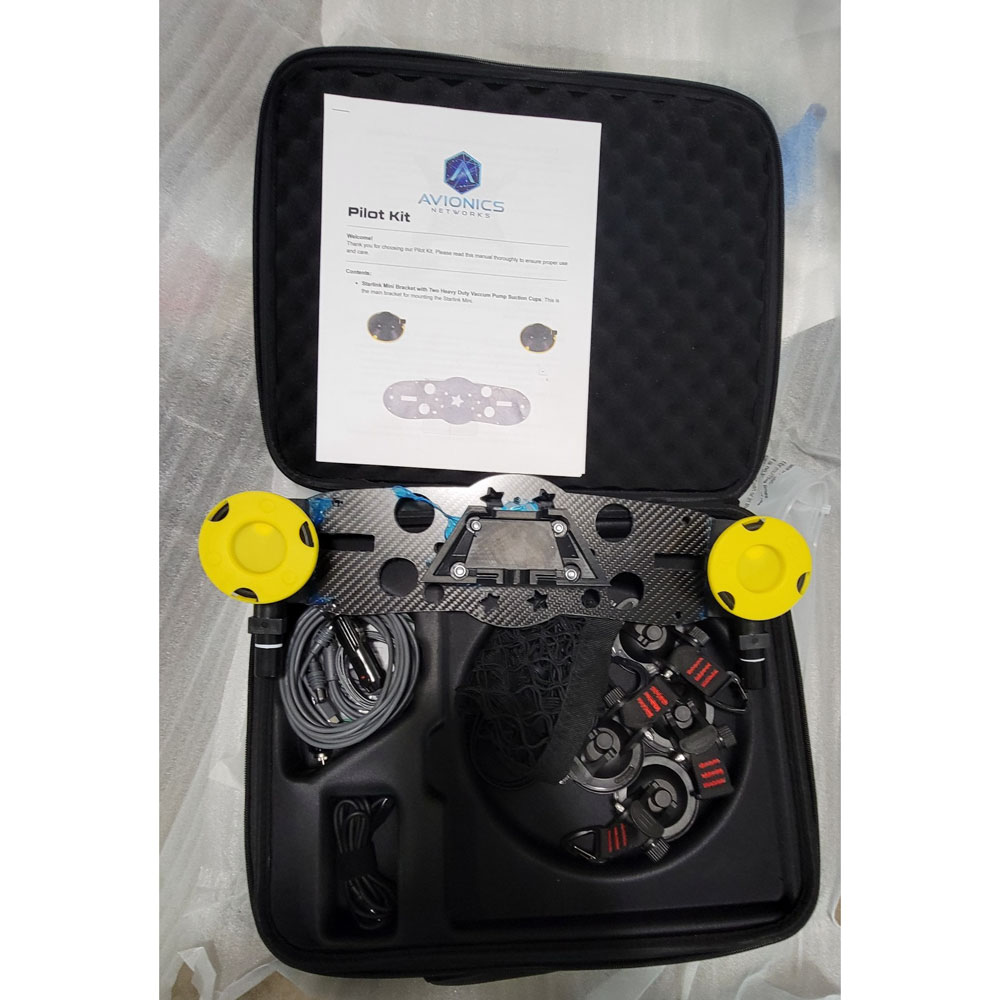

- Proprietary carbon fiber or aerospace aluminum mounting bracket
- Starlink Mini antenna (optional, depending on SKU)
- Heavy-duty vibration-absorbing suction system or optional aircraft-specific brackets
- USB-C 100W power cable
- 12V cigarette lighter adapter
- Safety net restraint system
- Ruggedized carry-on case
- Technical support for Starlink activation and setup
