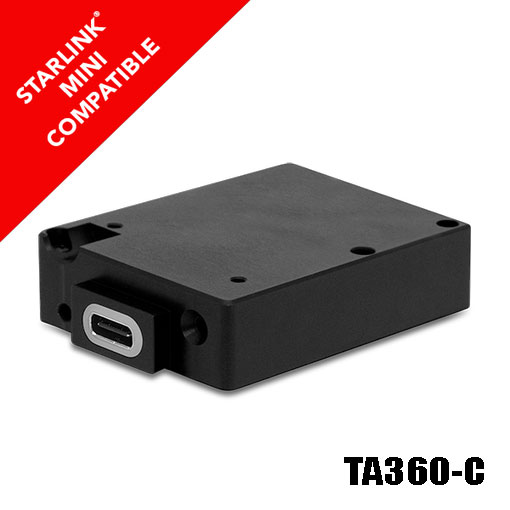

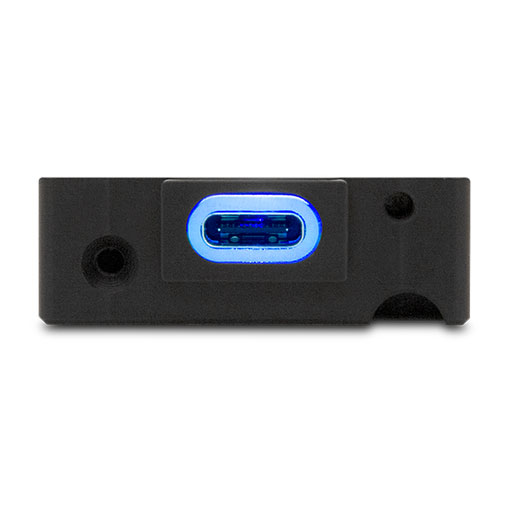

Upgrade your aircraft with the only TSO-certified Starlink® Mini compatible USB chargers*. TA360 MAX Power USB Chargers are the most powerful in aviation, delivering up to 100 watts per port to your Starlink® Mini system, EFB, laptop, tablet or smartphone. MAX Chargers feature cutting-edge Power Delivery (PD) Technology and are easy to install in your cabin, cockpit or galley. They are a drop-in replacement for True Blue Power TA102 and TA202 Series charging ports.
- Provides 5.0 amps
- 22 – 32 VDC input voltage
- Delivers up to 100 watts of power per PD port
- Single, USB-C PD connector
- Compatible with USB-C PD and traditional USB-C devices
- Short circuit, power surges, overload and over temperature protection
- In-seat, cabin, cockpit and galley applications
- Designed and built in Wichita, Kansas, USA
- Limited lifetime warranty
- Input Voltage: 22 – 32 VDC
- Input Power: 100 W per port (maximum)
- Output Voltage: USB-C PD; 5 – 20 VDC per port (variable)
- Output Power: USB-C PD; 100 W per port (maximum)
- Output Current: 5.0 amps per port
- USB Connector: Single USB-C PD configuration
- Weight: 1.0 ounces (28 grams)
- Dimensions: 1.5"W x 0.52"H x 2.0"D
- Mounting: Front or rear; faceplates and adapter plates (optional)
- Installation: In-seat, cabin, cockpit and galley
- Case: Anodized aluminum, black
- Certification: FAA TSO C71, EASA ETSO C71, RTCA DO-160G
- Mating Connector Kit P/N 9017960 included
