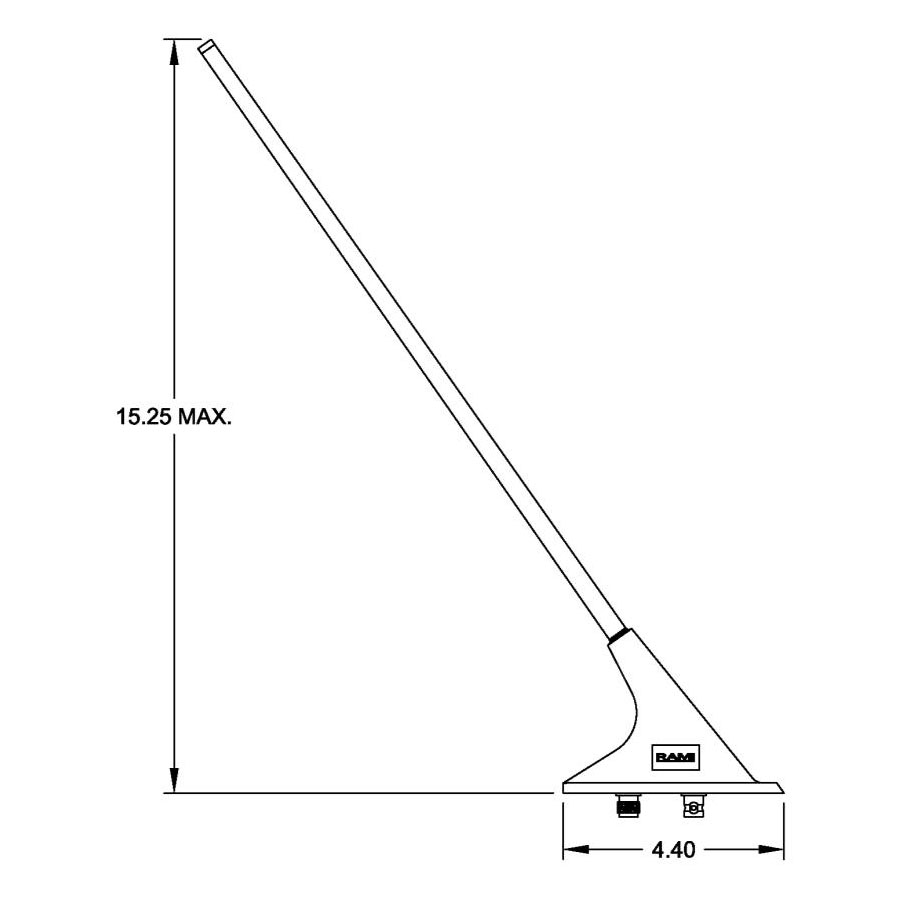

This ELT antenna is intended for use with an ELT (Emergency Locator Transmitter) for general aviation. It is a passive three frequency fiberglass rod whip antenna, designed for low speed aircraft (up to 350 knots).
- 121.5, 243 & 406 MHz frequencies
- Vertical polarization
- Omnidirectional pattern
- 50 Ω impedance
- BNC & TNC connectors
- Weight: 0.39 lbs
- Frequency: 121.5, 243 & 406 MHz
- Impedance: 50 Ω
- VSWR: 2.0:1 @ 121.5 MHz; 2.5:1 @ 243 MHz; 1.5:1 @ 406 MHz
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: BNC Female, TNC Female
- RF Power Handling: 10 Watts CW
