Cutting-Edge Technology Without the Cutting
AV-30 fits in your existing 3” panel slot seamlessly. By mounting from behind, it preserves the “round dial” look, and eliminates the need for cutting or replacing your panel.
Customizable Display
- Primary Attitude
- Primary Slip
- Primary Direction indication
- Probeless Angle of Attack
- Indicated Airspeed (KTS/MPH)
- Altitude / Vertical Trend / Alerter
- +8 / -8 G-Meter
- OAT / TAS / Density Altitude
- Bus Voltage
- GPS Navigational Data Overlay

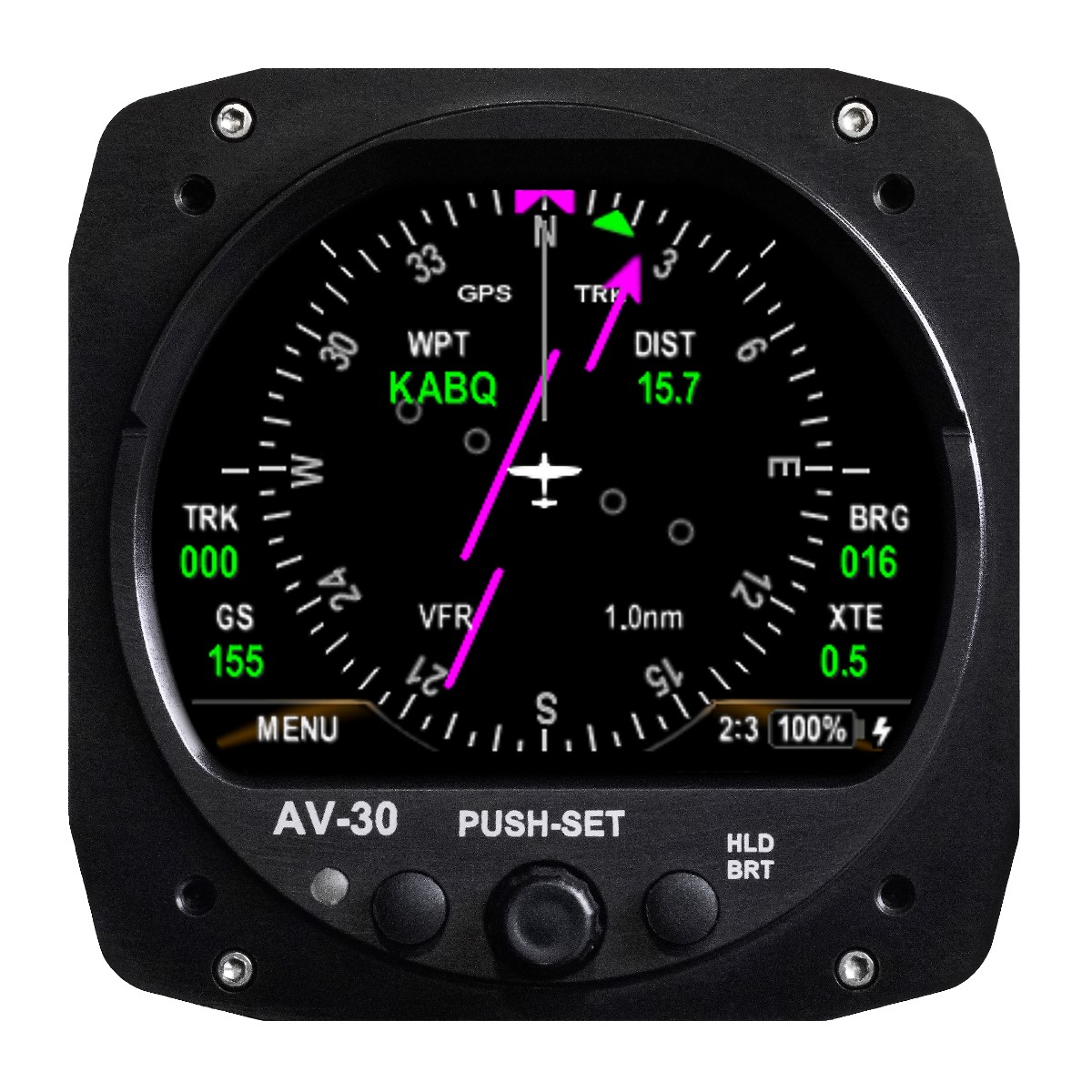

- GPS HSI / 360 Rose / Arc Map Mode
- Customizable Colors, Fonts, and Layout
- Audio Alerts (AoA, G, Roll Limits)
Avoid Stalls
The AV-30 alerts you visually and aurally if you approach a dangerous AoA. AoA is calculated by comparing the aircraft’s pitch, flight path, and G-loading.
Live Traffic on AV-30

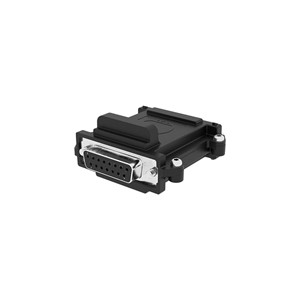

Plug-in AV-Link to your AV-30 serial port, connect the AV-Link to your ADS-B receiver via Wi-Fi, and that's it.
- Primary Attitude
- Primary Slip
- Primary Direction Indication
- Probeless Angle Of Attack
- Indicated Airspeed (KTS/MPH)
- Altitude / Vertical Trend / Alerter
- +8 / -8 G-Meter

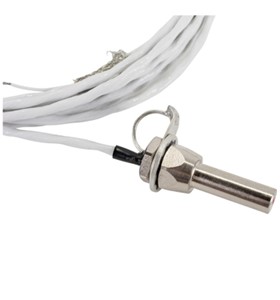

- OAT / TAS / Density Altitude (requires OAT probe)
- Bus Voltage
- GPS Navigational Data Overlay
- GPS HSI / 360 Rose / Arc Map Mode
- Customizable Colors, Fonts, and Layout
- Audio Alerts (AoA, G, Roll Limits)
- 2.5 Hrs Typical Internal Battery Operation
- When paired with AV-Link WiFi Module - live ADS-B Traffic from a Supported Receiver and Wireless Software Updates

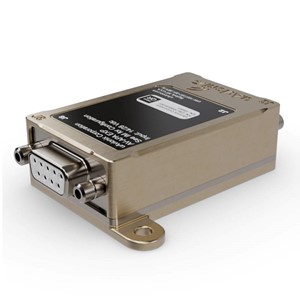

- Interface to S-TEC legacy auto pilots (Requires AV-APA)
- Heading hold for legacy S-TEC auto pilots, (Requires AV-APA), and digital auto pilots
- Follow GPS tracks from Portable or IFR GPS for legacy S-TEC auto pilots, (Requires AV-APA), and digital auto pilots
- Supported modes for legacy S-TEC auto pilots (Requires AV-APA), and digital auto pilots
- GPS Desired Track
- GPS Track Hold
- GPS Bearing
- GPS Steering*
- Supported Autopilots: S-TEC 20/30/40/50 (Requires AV-APA), Trutrak Digital, Aerocruze 100 Digital, Trio Digital
- Input Voltage Nominal: +10 to +32 VDC
- Input Voltage Max: +60 VDC
- Input Power Nominal: 6 Watts (0.5 Amps @ 12VDC)
- Input Power Max: 12 Watts (1.0 Amps @ 12VDC)
- Required Circuit Breaker: 2 Amp
- Operation on Battery: 2.5 Hours Typical, 30 Minutes Minimum Under All Temperature Conditions

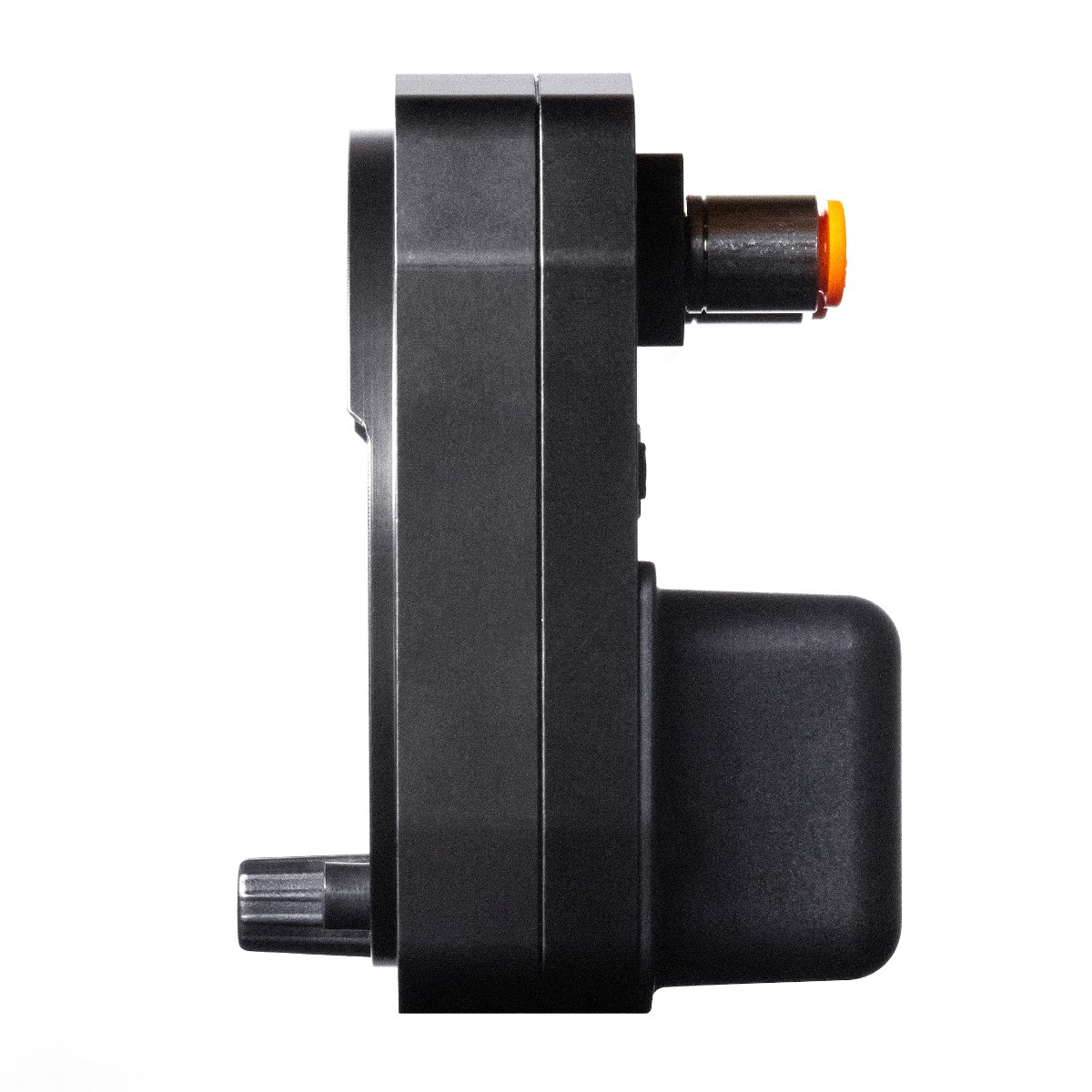

Physical Attributes
- Mounting Configuration: 3 1/8” Round Instrument Hole
- Dimensions without Connector: 3.38 x 3.38 x 3.5 Inches
- Weight: 13.5 oz

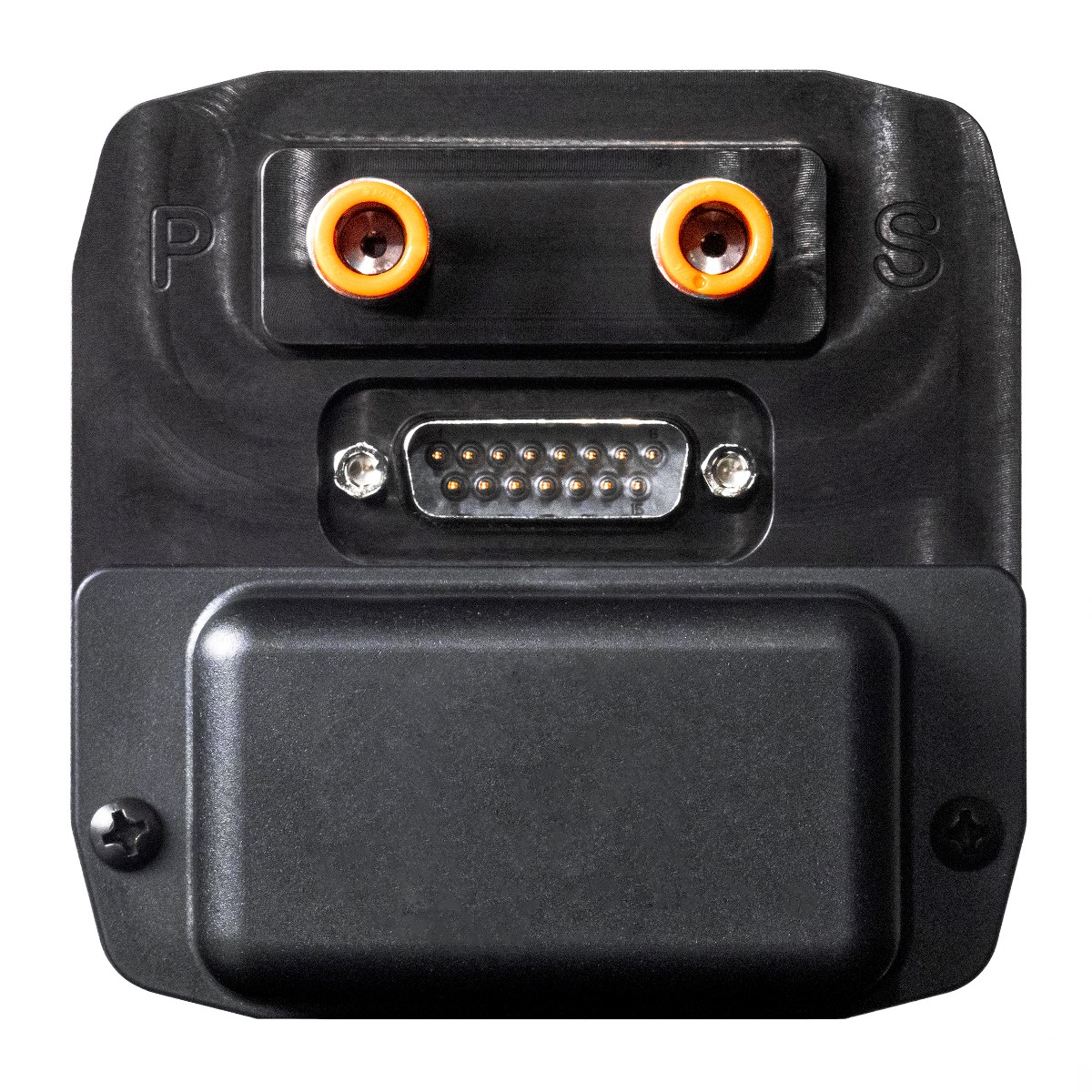

- Electrical Connector: 15 Pin Male D-Sub
- Pneumatic Connectors: 1/4" OD Quick Connect
- Mounting: (4X) #6-32 Machine Screws
- Case Material: Billet Aluminum
Environmental
- Operating Temp.: -20°C to +55°C
- Storage Temp. (48 Hrs): -30°C to +80°C
- Humidity (48 Hrs): 90% RH
Display
- Diagonal Display Size: 3" Circular
- Display Contrast Ratio (Typical): 500
- Display Brightness (Typical): 1000 cd/m2
- Display Viewing Angle Left/Right: 60°
- Display Viewing Angle Up/Down: 45°/10°
- Display Backlight Lifetime (Typical): 50,000 Hrs
