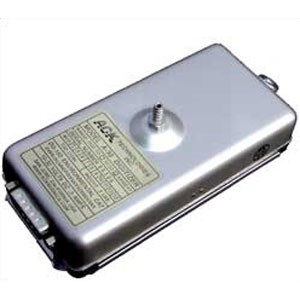

MOD 5: -950 to 30,750 feet w/ gray code Output.

  • Latest solid state electronics for high reliability
  • The smallest, lightest, highest quality encoder available
  • Quick and easy installation
  • Compatible with most transponders in use today
  • Code compatible with all classes of Mode S transponders
  • FAA TSO-C88a Approved

  • Size: 6" x 2.65" x 1.7" (152mm x 67.5mm x 43mm)
  • Weight: 7.1 oz (204 grams)
  • Approvals: FAA TSO C-88a German LBA 10.221/4
  • Range: A-30.5 -950 to 30,750
  • Accuracy: Typical ± 20 feet maximum ± 50 feet
  • Operating voltage: 10 to 32 volts DC
  • Operating current: 150 MA (.15 Amps)
  • Operating temperature: -4 to 131° fahrenheit (-20 to +55° centigrade)
  • DO-160B Environmental categories: C4BA/JKLMNOPS/XXXXXXZZBBBXXXX
  • Compatibility 4096 code transponders: Yes
  • Mode S compatibility: Yes/All classes

  • Quick release mounting tray
  • 4 foot harness
  • 4 foot pitot-static line
  • Installation Hardware
  • Installation manual
