Introducing Axis, A New Generation of Flight Displays

Garmin is pleased to announce AXIS™, an all-new family of flight displays, designed from the ground up to offer a highly integrated and flexible cockpit display solution. AXIS brings Garmin’s latest avionics technology to certified piston-powered single and twin¹ engine aircraft via an expansive AML STC covering hundreds of models, as well as experimental and LSA aircraft. In an industry-first, AXIS flight displays come in a variety of models that can include a built-in IFR GPS, NAV/COMM radio, and audio panel capability – creating an integrated solution that enhances the user experience, reduces aircraft weight, and simplifies installation. Also compatible with many of the same navigators, radios, modules and sensors as Garmin’s popular G3X Touch™ flight displays, AXIS features an easy upgrade path, including leveraging the same panel cutouts and mounting points.

A Next-Level Flight Display System

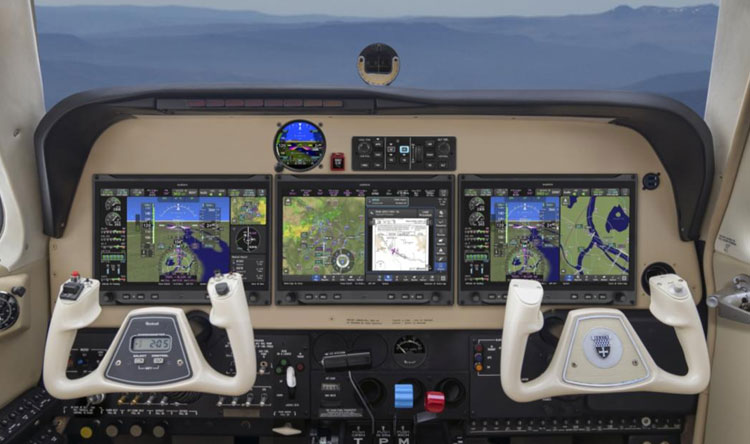

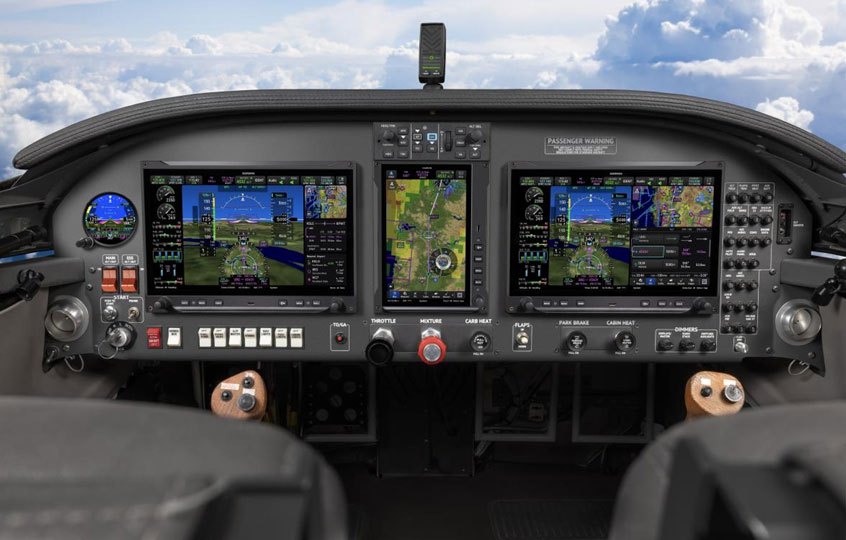

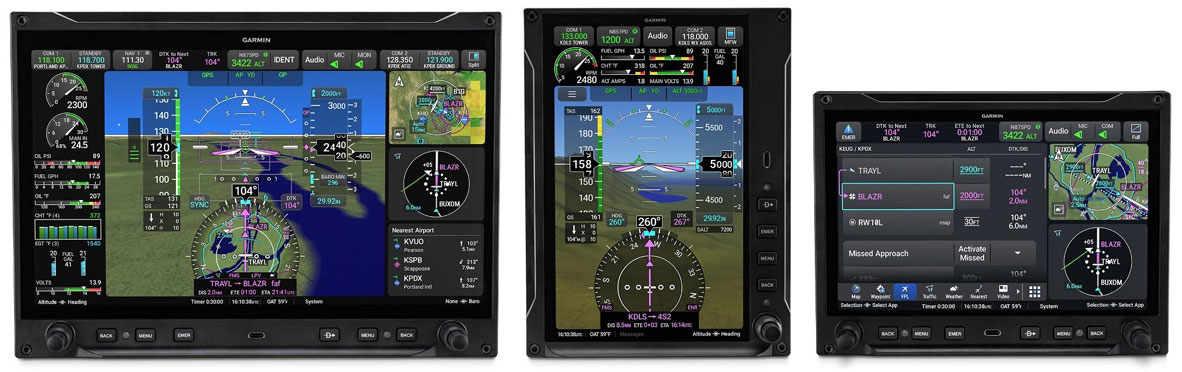

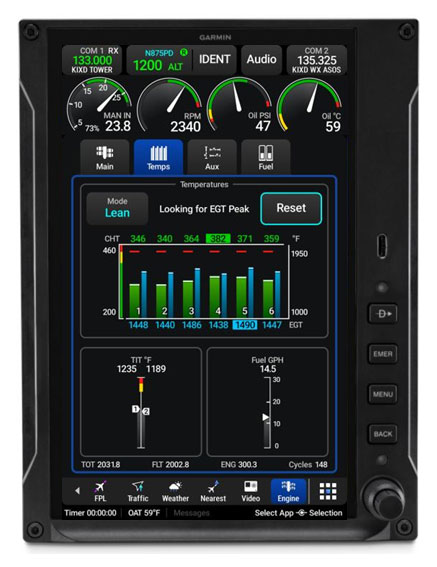

The AXIS family of flight displays features three display sizes — 11.6-inch landscape, 8-inch portrait¹ and 8-inch landscape¹— that include highly responsive touchscreen displays as well as physical controls for quick access to key functions. Each display can be configured as either a primary flight display (PFD) or multi-function display (MFD), with engine indication system (EIS) information available as part of either configuration. Pilots can maximize their situational awareness with full-screen or split-screen options, leveraging a familiar yet modernized user interface. The flight displays are configurable for both experimental and certified aircraft and provide incredible flexibility for installation across many aircraft types.

First-of-its-Kind Integration

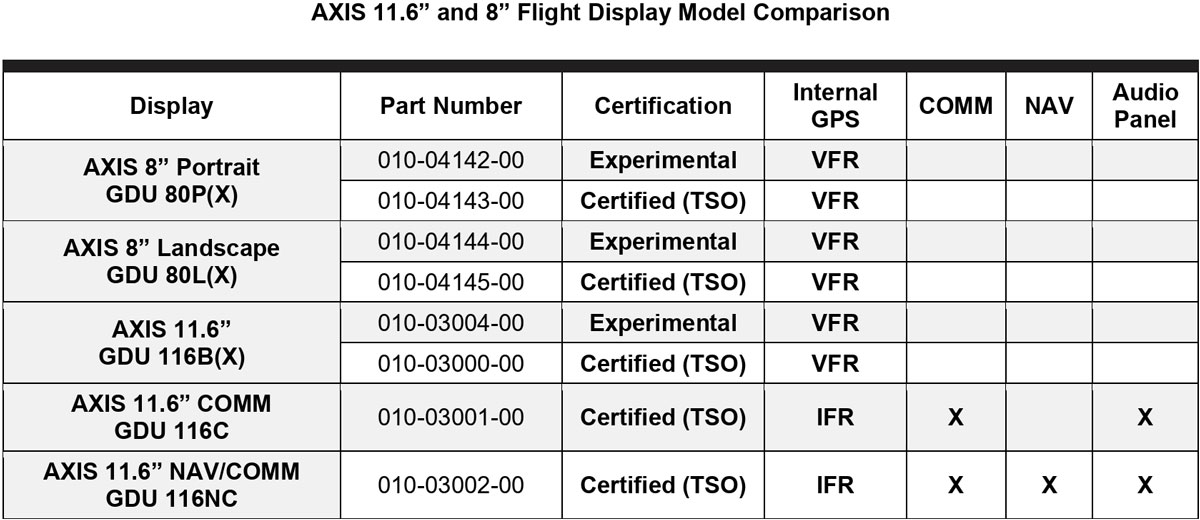

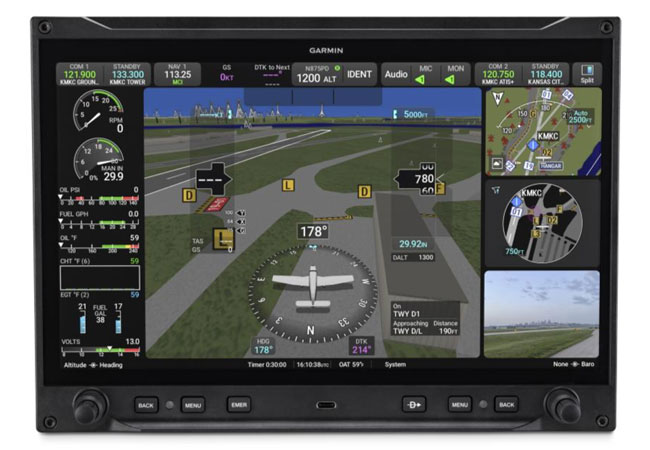

AXIS 11.6-inch displays are optionally available with a TSO certified IFR GPS, COMM radio, NAV radio and audio panel all built into a single display. This combined capability from a single display creates a highly integrated panel experience and enables a simpler and more cost-effective installation. The VHF COMM radio offers 10 watts of transmit power, supports 8.33khz frequency tuning and standby COMM monitoring, allowing pilots to monitor a standby frequency while tuned to the active ATC frequency. Pilots can access the flight plan across displays and easily load waypoints or VORs, holds, GPS and ILS procedures and more. The built-in 4-place intercom audio panel includes dual-comm switching with support for one external radio, comm playback and Bluetooth capability for music and phone calls. Available in three certified (TSO) variants, the base version offers a PFD/MFD, while the GPS/COMM and GPS/NAV/COMM models include an IFR GPS and integrated audio panel. Experimental and LSA aircraft can leverage both certified and non-TSO versions of the 11.6-inch displays.

Additionally, 3D SafeTaxi® provides pilots with a three-dimensional, exocentric view of the airport environment directly on their PFD, reducing potential confusion by giving a clear, localized picture of taxiways, runways, hangars and surrounding buildings. The MFD features dynamic mapping, ADS-B traffic², weather², waypoint information (including terminal charts) and expanded EIS. Additionally, an HDMI video input on each display allows for live-camera video monitoring.

Innovative Safety Enhancing Tools

AXIS supports many of Garmin’s award-winning safety enhancing technologies. A dedicated emergency button is located on the display bezel, allowing pilots to quickly access certain emergency procedure options if needed. Smart Glide™ – a Garmin Autonomí™ technology – helps pilots in loss of engine power emergencies by efficiently navigating to an airport in range and, if the aircraft is equipped with either a GFC™ 500 or GFC 600¹, the system can autoengage to fly the aircraft enroute. Terminal safety solutions include award-winning Runway Occupancy Awareness (ROA), a solution that uses ADS-B traffic to alert the crew of potential runway incursions caused by nearby airborne aircraft, taxiing aircraft and ground vehicles. Additionally, optional SurfaceWatch™ runway monitoring technology provides general situational awareness in airport environments as well as visual and aural cues to help prevent pilots from taking off or landing on a taxiway.

Stay Connected

Advanced connectivity options can keep pilots more connected than ever before. Built-in Wi-Fi and Bluetooth allow pilots to connect with Garmin Pilot in-flight as well as share GPS, traffic, weather, flight plans and more. PlaneSync, powered by the GDL 60 datalink¹, will support automatic database downloads³, remote aircraft status⁴ as well as automatic flight log uploading. A built-in USB-C data port supports data transfer capabilities like downloading databases and offloading flight logs. The USB-C port will also support device charging up to 27W. Additionally, Database Concierge allows pilots to download updates to their Garmin Pilot app and wirelessly transfer to their compatible avionics via compatible mobile device.

Team X Simplifies Installations

Team X – the experimental aircraft team at Garmin – played an important role throughout the development of AXIS. Composed of engineers, pilots and aircraft builders, Team X understands the factors that can influence an experimental aircraft build. To that end, AXIS features a streamlined, easy upgrade path from G3X Touch that utilizes most existing sensors, LRUs and similar panel cutouts and existing mounting holes. Simplified wiring, configuration and additional built-in I/O make AXIS an even faster and more scalable system. Team X can provide experimental aircraft builders with support throughout AXIS upgrades.

Available Now for Certified and Experimental Aircraft

The AXIS 11.6-inch flight displays have achieved FAA/EASA Technical Standard Order (TSO) and are available to order now. Shipments will begin immediately upon FAA STC completion, expected in July. The 8-inch displays are expected to be available in early 2027. FAA Supplemental Type Certificate (STC) approval is available for hundreds of models of certified Part 23 Class I/II piston singles and twins¹. STC approvals with other civil aviation authorities are expected in the near future. For more information, visit Garmin.com/AXIS.

Introducing the GTR 205R Remote Mount COM Radio

Garmin is also pleased to announce the new GTR 205R Remote Mount COM Radio. Building on our popular GTR 205 and GNC 215 series of COM and NAV/COM radios, the 2,280-channel radio offers standard 10 watts of transmit power plus pilot-selectable 25 kHz or 8.33 kHz channel spacing. Intended for installation into certified aircraft and controlled remotely through the AXIS Flight Display, the GTR 205R is available now.

The Future of G3X Touch

G3X Touch will continue to be available for sale. Customers who desire the G3X Touch flight display can continue to purchase and install with confidence. Additionally, customers looking for fleet commonality or require a 7” portrait or landscape form factor in the near term can continue to purchase G3X Touch.

Future Capabilities

Anticipated in the first quarter of 2027, select product integrations and additional functionality will be incorporated in the AXIS flight display system. These enhancements will allow for additional AML model coverage, hardware variations, Garmin product compatibility, and features. These planned additions include:

• AXIS 8” Portrait and Landscape display availability and certification
• GDL 60 and PlaneSync support
• Twin engine EIS installation approval for certified aircraft
• GFC 600 autopilot compatibility with Smart Rudder Bias
• Twin engine installations with GFC 500
• Checklists
• SiriusXM support

¹ Certified Twin EIS, 8-inch displays, GDL 60 and GFC 600 compatibility coming soon.
² Compatible datalink required; sold separately.
³ Active PlaneSync and database subscriptions required for automatic database updates. Active PlaneSync subscription plan required for flight log uploading. Features are available on-ground only and require GDL 60 to have active LTE or Wi-Fi connectivity; signal strength and other factors may apply. See Garmin.com/PlaneSyncCoverage for LTE coverage details.
⁴ Remote aircraft status requires active PlaneSync subscription. User’s smart device must have internet connectivity. Feature is available on-ground only and requires GDL 60 to have LTE connectivity; signal strength and other factors may apply. See Garmin.com/PlaneSyncCoverage for coverage details.
