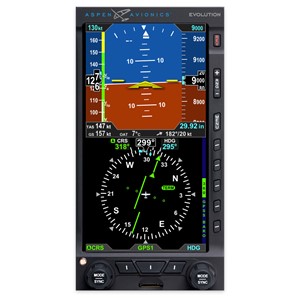

When introduced in 2018, the Evolution E5 EFI combined an attitude indicator plus DG/CDI into a single display. After receiving feedback from operators and installers, Aspen responded with this new software release for those who prefer a more traditional HSI. Aircraft owners who already own Aspen’s Evolution E5 can update their current display.
To add even more capability and utility to the E5 EFI, Aspen has also developed the following new optional software features which are available for only $495:
- True Air Speed (TAS)
- Outside Air Temperature (OAT)
- Wind direction and speed>
- WAAS GPS mode annunciations
- Backup attitude indicator not required
- Consolidates traditional attitude indicator and directional gyro (DG) into a single display
- Autopilot compatibility interfaces to the new TruTrak Vizion Autopilot
- Compatible with most legacy autopilots
- Includes Global Positioning System (GPSS) Steering, air data computer and attitude heading reference system (ADAHRS)
- Large, 6.0" diagonal, 400 x 760 pixel TFT Active Matrix LCD screen with bolder/brighter resolution
- Rechargeable lithium-ion external backup battery with up to two hours of battery life
- Works with your panel’s existing avionics
- Unique form-fit design slides easily into existing panel cutouts
- Provides a path for removal of vacuum instruments (*In most circumstances. Actual vacuum instrument removal will vary by aircraft.)
PFD Upgrades
Easy and affordable Evolution E5 Non-TSO STC to full TSO Evolution 1000 Pro upgrade
General Specifications
- Overall Dimensions: 3.50” W x 7.00”H x 4.15”D
- Weight: 2.9 lbs. with mounting bracket
- Display Type: 6.0" Diagonal TFT Active Matrix LCD
- Display Resolution: 400x760
- Display Backlight: High Intensity White LED
- Display Colors: 32,768
Operational Specifications
- Operating Temp: -20°C to +55°C
- Storage Temp: -55°C to +85°C
- Max Operating Altitude (unpress.): 35,000 ft.
- Cooling: Integral Fan
- Max Humidity: 95% at 50°C
- Input Voltage: +9 to +32 Volts DC
- Max Current: 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc
I/O Specifications
- ARINC 429 Inputs: 5 Low Speed
- ARINC 429 Outputs: 1 Low Speed
- RS-232 Inputs: 5
- RS-232 Outputs: 3
- Pitot / Static: Quick Connect
Certification Specifications
- Software
- RTCA DO-178B Level C
Environmental
- RTCA DO-160E
