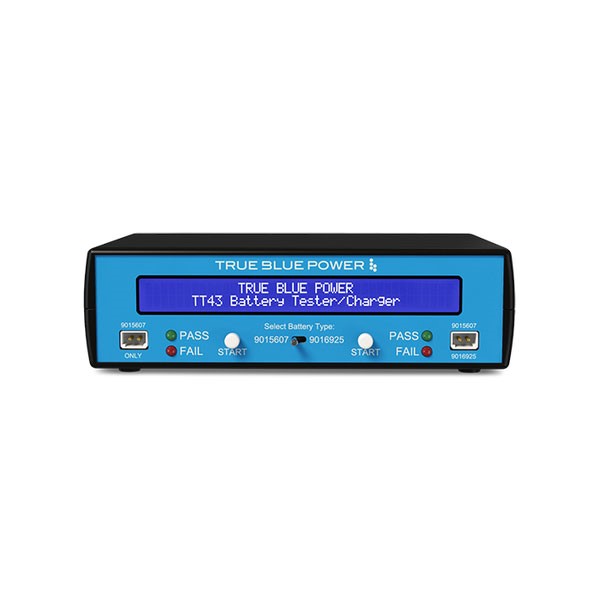

The TT43 Aircraft Battery Tester / Charger performs automatic capacity testing and recharges batteries in five hours or less. It is designed to test and charge Mid-Continent Instruments and Avionics 4300 Series Lifesaver® Gyro and TS420 Series Emergency Power Supply’s removable batteries.
- Tests and charges all Mid-Continent lead-acid battery packs: 4300 Series (0.5Ah battery), TS420 (0.5Ah battery), TS420-1 (2.5Ah battery)
- Alphanumeric dot matrix LCD display provides dynamic test status and measurements
- Test/Charge one or two batteries simultaneously in less than 5 hours
- Microprocessor control adjusts test to accurately compensate for acceptable battery variation
- Bright LEDs provide quick reference pass/fail results
- Can float charge batteries indefinitely to maintain an always-ready state
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
- National Stock Number (NSN): 6130-01-641-8265
- Power Supply: Wall-outlet AC Adapter included
- Battery Type: Switch allows for selection of 0.5Ah or 2.5Ah battery
- Battery Detection: Load sensing recognizes batteries when connected to the tester
- Protection: Short-circuit protection and time out for failed batteries
