The TN70A WAAS GPS receiver and antenna kit provides an affordable solution for adding a certified FAA TSO C145 WAAS GPS receiver to an existing ADS-B Out installation. The TN70A is compatible with the Trig TT22 transponder — making installation simple and ADS-B compliant. The TN70A can be installed as a discrete GPS unit while leaving the existing panel equipment in place.
- Interfaces with Trig TT22 transponder to provide ADS-B Out
- Meets TSO-C145 — compliant for 2020 ADS-B
- Completes a 2020 ADS-B Out solution
- GPS receiver certified to TSO-C199 (TABS)
- Meets position requirements of FAR 91.227 for experimental and light-sport aircraft
- Enhances visibility and safety
- Collision avoidance (uses non zero quality indicators)
- Enables live tracking of aircraft
- Triggers traffic information services (TIS-B only available in U.S.)
- Low cost and lightweight
- Compatible with Trig transponders
- Weight: 1.06 lb
- Dimensions: 1.6" x 4.13" x 6.5"
- Type: GNSSU/GPS, SBAS/WAAS
- Supply Voltage: 9 VDC – 32 VDC
- Typical Current Consumption (at 14V): 0.2A (typical), 0.3A (maximum)
- Operating Temperature: -55°C to 70°C
- Operating Height: 110,000 ft
- Certification: TSO-C145c, Beta 1 Receiver
- Compliance: DO-229D, DO-178B level C, DO-254 level C D0-160F

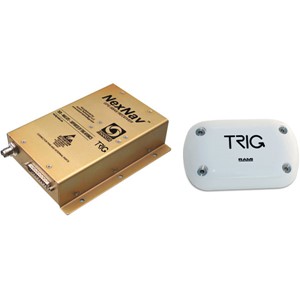

- TN70A WAAS GPS receiver
- TA70 WAAS GPS antenna
- Installation kit
Note: The TN70A installation instructions are online only.
