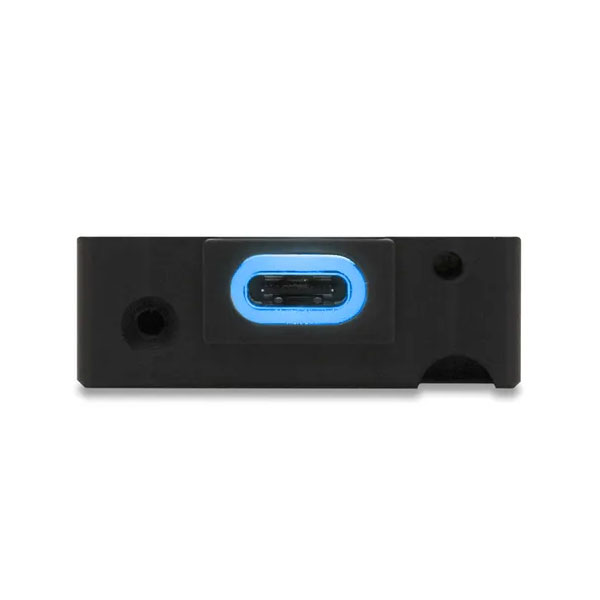

Single USB-C, 45W, 3A per port, 12–32 VDC in, Rear connector, Lighted

  • 45 W max output power per port
  • Provides 3 amps of power to USB-C electronic devices
  • 12 – 32 VDC input voltage
  • Single USB-A connectors
  • 3.3 – 20 VDC output voltage @ 3.0 A per port
  • Power Delivery 3.0, Programmable Power Supply 3.0, Battery Charging 1.2

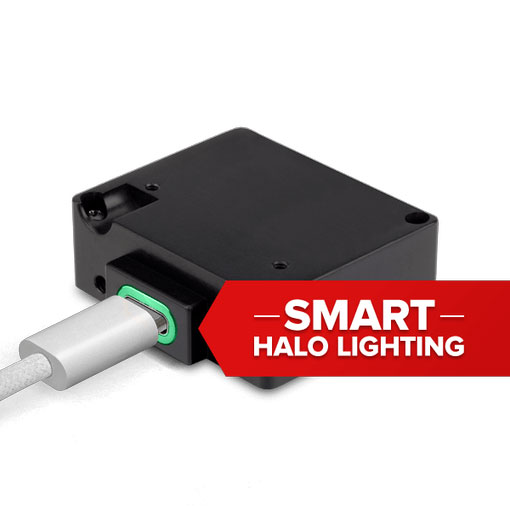

  • Manual lighting control, Colored status indications: power, charging, fault
  • Short circuit, power surge, overload and over temperature protection
  • In-seat, cabin, cockpit and galley applications
  • Designed and built in Wichita, Kansas, USA
  • Limited lifetime warranty

  • Output Power: 45 W max per port
  • Output Voltage: 3.3 – 20 VDC @ 3.0 A per port
  • Output Current: 3.0 amps per port
  • Input Power: 52 W max per port
  • Input Voltage: 12 – 32 VDC
  • USB Connector: Single USB-C
  • Power Input: Rear
  • Weight: 0.9 ounces (26 grams)
  • Dimensions: 1.5"W x 0.52"H x 1.25"D
  • Installation: In-seat, cabin, cockpit and galley
  • Case: Anodized aluminum, black
  • Certification: FAA TSO C71 pending, EASA ETSO C71 pending, RTCA DO-160G pending

Included:

  • Mating Connector Kit: MCI P/N 9017960

Optional:

  • Mounting: Front or rear; faceplates and adapter plates
