• USB-C; 45 W max output power per port, USB-A; 36 W max output power per port
• Simultaneously provides 3 amps of power per charging port to USB-A and USB-C electronic devices
• 12 – 32 VDC input voltage

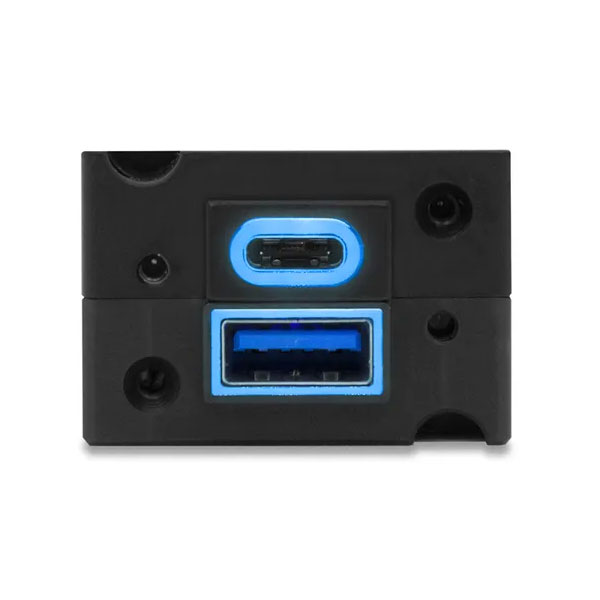

• Dual USB-A / USB-C connectors
• USB-C; 3.3 – 20 VDC output voltage @ up to 3.0 A per port
• USB-A; 3.6 – 12 VDC output voltage @ 3.0 A per port
• USB-C; Power Delivery 3.0, Programmable Power Supply 3.0, Battery Charging 1.2
• USB-A; Qualcomm® Quick Charge™ 3.0, Battery Charging 1.2

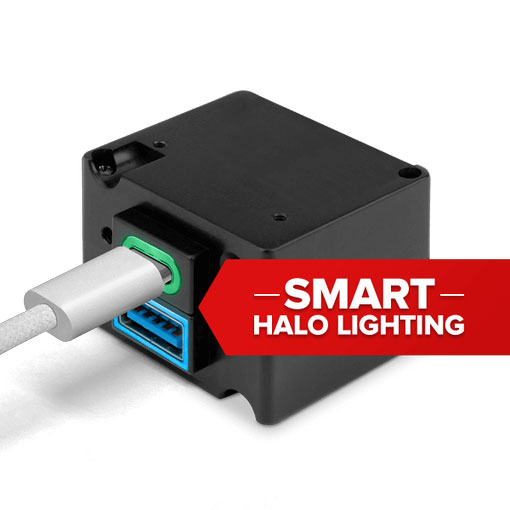

• Manual lighting control, Colored status indications: power, charging, fault
• Charge one or two devices at full power
• Short circuit, power surge, overload and over temperature protection
• In-seat, cabin, cockpit and galley applications
• Designed and built in Wichita, Kansas, USA
• Limited lifetime warranty

• Output Power: USB-C; 45 W max per port; USB-A; 36 W max per port
• Output Voltage: USB-C; 3.3 – 20 VDC @ up to 3.0 A per port; USB-A; 3.6 – 12 VDC @ 3.0 A per port
• Output Current: 3.0 amps per port
• Input Power: 52 W max per port
• Input Voltage: 12 – 32 VDC
• USB Connector: Dual USB-A/USB-C
• Power Input: Rear
• Weight: 1.8 ounces (52 grams)
• Dimensions: 1.5"W x 1.03"H x 1.25"D
• Installation: In-seat, cabin, cockpit and galley
• Case: Anodized aluminum, black
• Certification: FAA TSO C71 pending, EASA ETSO C71 pending, RTCA DO-160G pending

Included:

• Mating Connector Kit: MCI P/N 9017960

Optional:

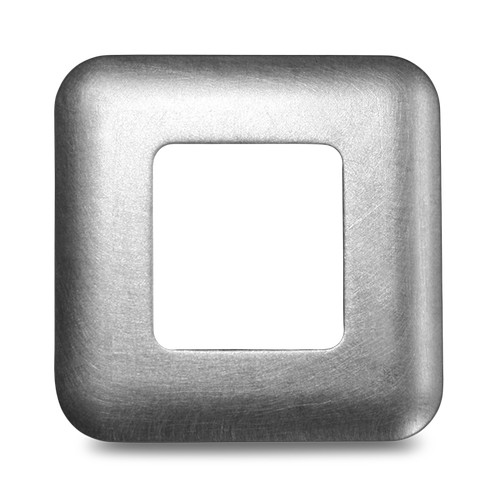

• Mounting: Front or rear; faceplates and adapter plates
