The RCA8310-3 Digital Turn Coordinator is the latest addition to the RC Allen Digital Lineup. It is a digital replacement for mechanical turn coordinators or mechanical turn and bank instruments. It is designed to be intuitive to use, and look and react the same as a mechanical gyro instrument.
Because the RCA8310-3 has no mechanical gyroscope, it is much more stable and reliable than mechanical gyro instruments. It can be set to output all necessary signals for legacy autopilot applications. Optional features, such as Internal Battery Back-up (recommended) and NVIS compatibility are also available. The autopilot output signals can be disabled if not required.

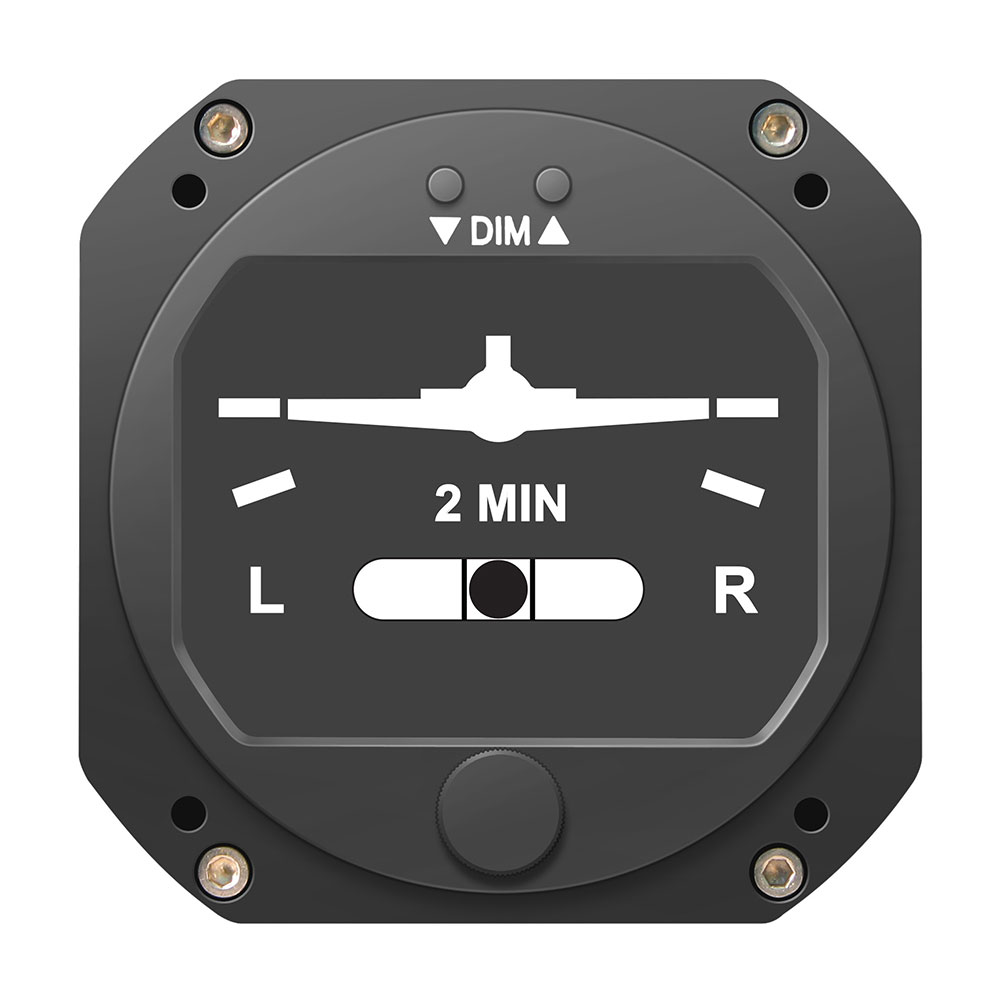

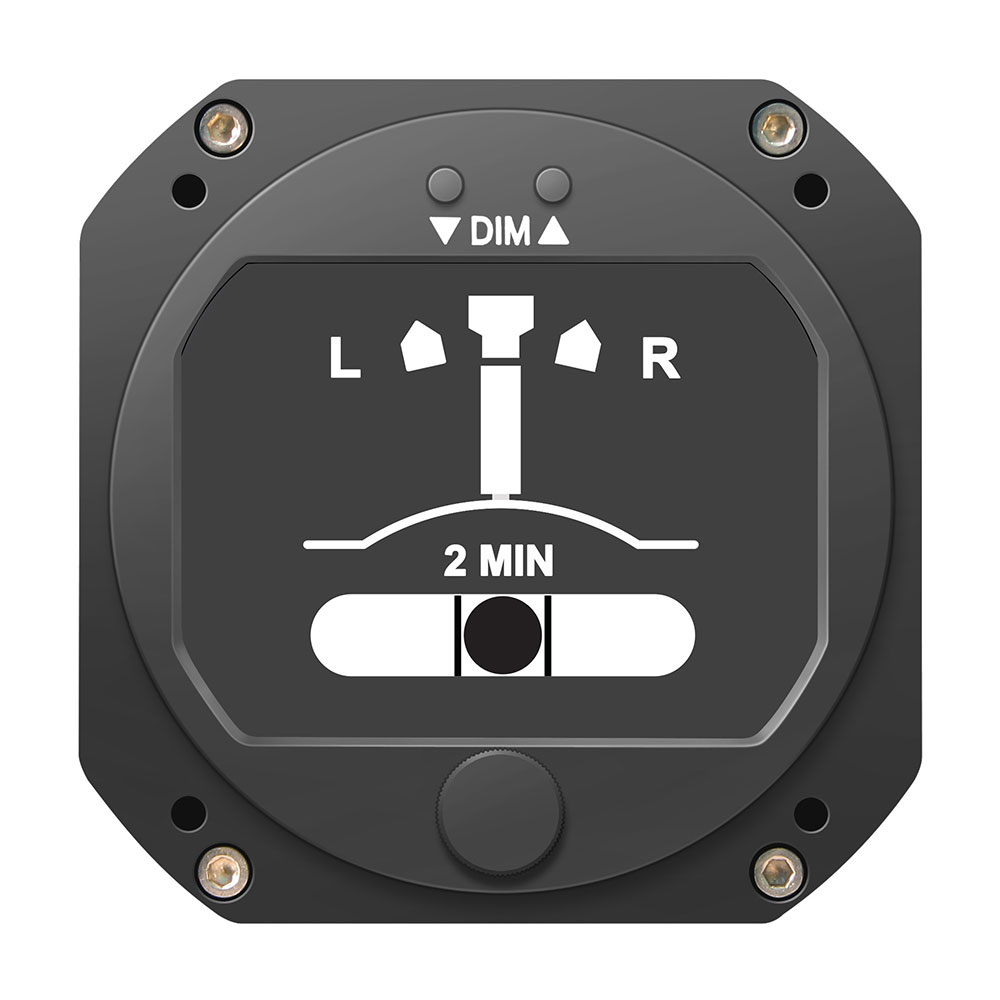

The RCA8310-3 comes standard with a variety of customizations allowing you to select between three classictraditional looks: 1) Turn Coordinator 2) Turn and Bank (with doghouse indexes) and 3) Turn and Bank (without doughouse indexes). Each configuration displays a ball type inclinometer (slip indicator) to show slip and skid for coordinated turn.
- WORKS WITH LEGACY AUTOPILOT SYSTEMS
- INTERNAL BATTERY BACKUP
- ADJUSTABLE BRIGHTNESS
- MULTI-VOLT OPERATION (9 TO 32 VOLTS)
- FITS STANDARD PANEL CUTOUT
- ALL DIGITAL - NO MOVING PARTS
- TOTALLY SELF-CONTAINED
- BLACK ANODIZED BEZEL
- FULLY FAA CERTIFIED
- Electrical: 9 – 32 VDC
- Weight: 6.75 oz
- Display Resolution: 320 x 240 pixels, LED backlight color LCD
- Battery Backup: Rechargeable LiPo Battery
- Battery life: Up to 3 hours
- FAA Specification Performance: TSO-C113b, TSO-C3e
- Meets or Exceeds: AS8034C and AS8004
- RCA8310-3 Electric Digital Turn Coordinator
- DB-15 mating connector and mounting screws
- Publication 1401-8
- FAA Form 8130-3
- Manufacturers C.O.C.
