Dual Pointer Autopilot with Heading Bug. 400 HZ, 5K, Auto-pilot mating connector: Amphenol part number 126-223 or Winchester part number M5SH9C. Autopilot output is compatible with S-TEC and Century Autopilots.

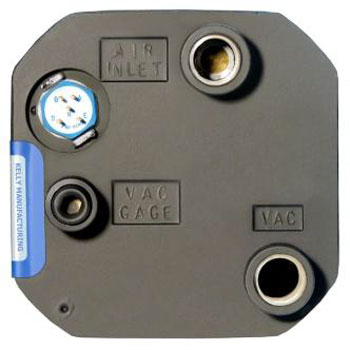

- A 1/4 -18 NPTF nylon tube slip fitting is recommended for vacuum hose installation.
- A 1/8 - 27 NPTF nylon tube slip fitting is recommended for vacuum gage installation.
Autopilot pin-out:
D: HDG SIG INPUT
B: HDG SIG INPUT COMMON
A: HDG
SIG OUTPUT
E: HDG SIG OUTPUT COMMON
H: SPARE
- Dimensions: 7.4”L x 3.4”W x3.4”H
- Weight 3.0 lbs.
Meets or exceeds all requirements of FAA TSO C5c and Aeronautical Standard AS397.
