The MicroDim control unit is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At just over an ounce the device is very light and produces a negligible amount of heat so that heavy heat sinks are not needed.
Model 9100-001-J OPT LL-11 uses ring connectors with 7.5A max current per circuit and 11mm long bushing.
- Dual channel MicroDim PWM dimmer with ring terminals
- Optimized for incandescent lighting on both channels
- 6mm bushing for panel thickness of 2.2mm or less
- Works excellent with all post lights, wedge lights, map lights, glare shield lighting, and cabin lights
- Hundreds of DC lighting control applications in aircraft, marine, rail, trucking, and others
- RTCA/DO-160G Section 21 RFE Qualified
- Comes with MaxDim unit, installation instructions, ring terminals, placard, installation template, and knobs
- Made in the USA
- One year limited warranty
- Weight: 1.31 oz

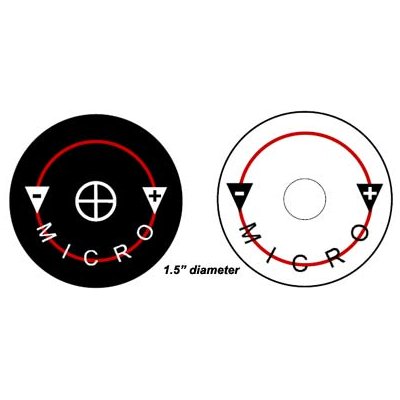

- Dimensions (Panel label): 1.6 in. diameter
- Dimensions (Control unit): 0.90 x 3.06 x 0.90 in.
- Capacity: 37.5 Watts @5 VDC each channel, 90 Watts @12 VDC each channel, 210 Watts @28 VDC each channel, 262 Watts @35 VDC each channel
- Voltage range: 12 to 35 VDC
- Max current: 7.5 A
- Controlled output: 0 to 12/35 VDC, 0 to 7.5 A
- Potentiometer rotation: 270º
- Rotational life: 500k turns
- Operating temperature: -30°C to +65°C
- Approvals: FAA PMA STC SA01800SE, RTCA/DO-160E Tested/Qualified
- MicroDim PWM unit
- Installation instructions
- Color coded terminals
- Reference panel label
- STC printout for your logs
- Installation template
- Knob
- All hardware needed for the install
- Allen wrenches for tightening terminal connections and knob set screws
