Simple to install and equipped for a multitude of applications, the MaxDim controller is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained dual-circuit controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At less than an ounce the device is very light and it produces a negligible amount of heat so that heavy heat sinks are not needed.

  • Weight: 0.58 oz (16.6g) Voltage Range: 12VDC to 35VDC
  • Max Current: 10 A per channel two channels
  • Controlled Output: 12-35 VDC, 0 to 10 A
  • Two channels
  • Capacity: 180 Watts @12 VDC each channel, 360 Watts @24 VDC each channel, 420 Watts @28 VDC each channel, 525 Watts @35 VDC each channel
  • Install with Standard Supplied solderless ring lug terminal
  • Potentiometer Rotation: 270 degrees Rotational Life: 500K Turns
  • Internal temperature Protect: +85 degrees C
  • Storage Temperature: -40 degrees C to +100 degrees C
  • Maximum Internal Temperature: @15A +15 degrees C
  • Enclosure Material: Bayer FR 110 Resin Meets UL 94
  • Flame Rating: V-2 (0.03in) V-0 (0.059in) 5VB (0.098in) 5VA (0.13in)
  • STC & PMA
  • Conforms to RTCA/DO-160E SEC 21: RFE (EMI)

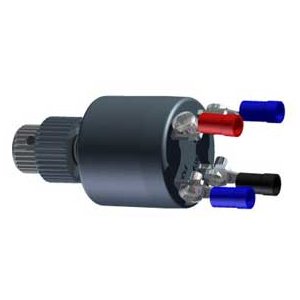

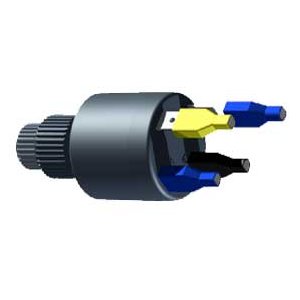

  • MaxDim Duo unit
  • Installation instructions
  • Color coded terminals

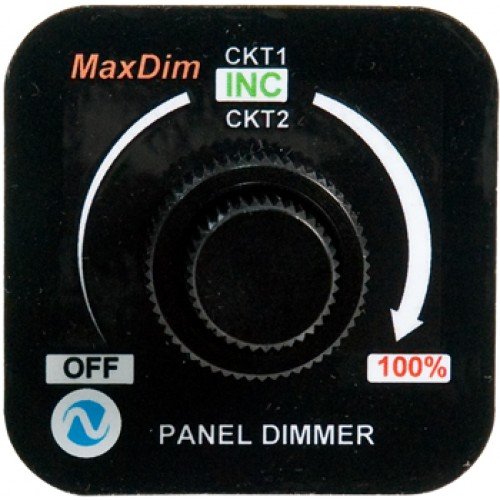

  • Reference panel label
  • STC printout for your logs
  • Installation template
  • Knobs
