• 100405-000: EGT, 1.00-2.25” Hose Clamp (qty: 4)
• 100404-000: CHT, Adjustable Bayonet, 3/8-24 UNF (qty: 4)
• 100434-000: Manifold Pressure, 0 – 60” Hg, 1/8” hose
• 101693-000: Oil Pressure Kavlico, 1/8-27 NPT, 150 PSI
• 100409-001: Oil Temperature, 5/8-18 UNF, 100-240°F

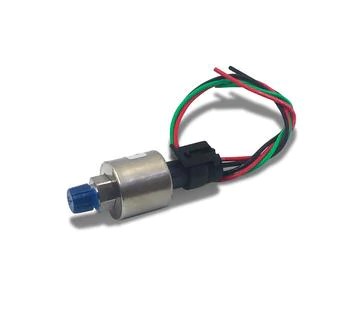

• 101690-000: Carbureted Fuel Pressure-Kavlico, 1/8-27 NPT, 15 PSI
• 100468-000: Carburetor Air Temperature, ¼-28 UNF, -50° to 150°F
• 100412-000: Amps Shunt, 0-60 Amps
• 100399-001: EGT/CHT, 4 cylinder, 6’ long harness
• 100399-000: Engine Sensor Main Wire Harness, 6‘ long

NOTE: Some Continental O-200 engines are not ported for the bayonet CHT probes sold by Dynon. Spark plug ring terminal CHTs probes can be used alternatively. Note that Dynon does not carry a ring terminal CHT probe sized for the O-200.
