%HP/FF/OAT/MAP/RPM/Oil Temp & oil pressure + USB

Available Functions: RPM, MAP, 4-6 EGT, 4-6 CHT, TIT (two), Oil Temp, Oil Pressure, OAT, Volts, CARB Temp, CDT, IAT, %HP, EGT SPAN, GPH, USD, REM, REQ, MPG, USB Data

With the EDM 830, it is now possible to have substantially more diagnostic information available to you in a timely and usable manner.

  • Improved engine efficiency
  • Reduced maintenance costs
  • Greater fuel economy
  • Reduced operating costs
  • Smoother engine operation
  • Proper engine temperatures
  • Longer spark plug life
  • Reduced engine vibration

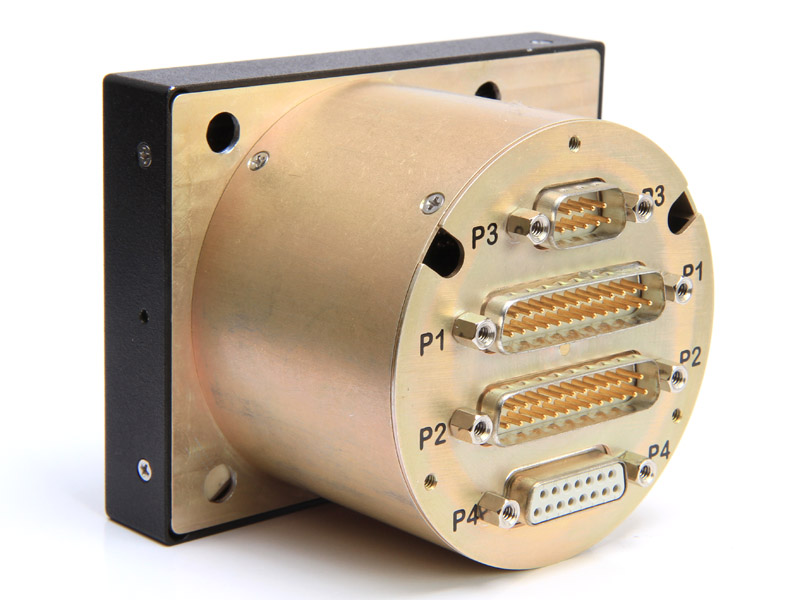

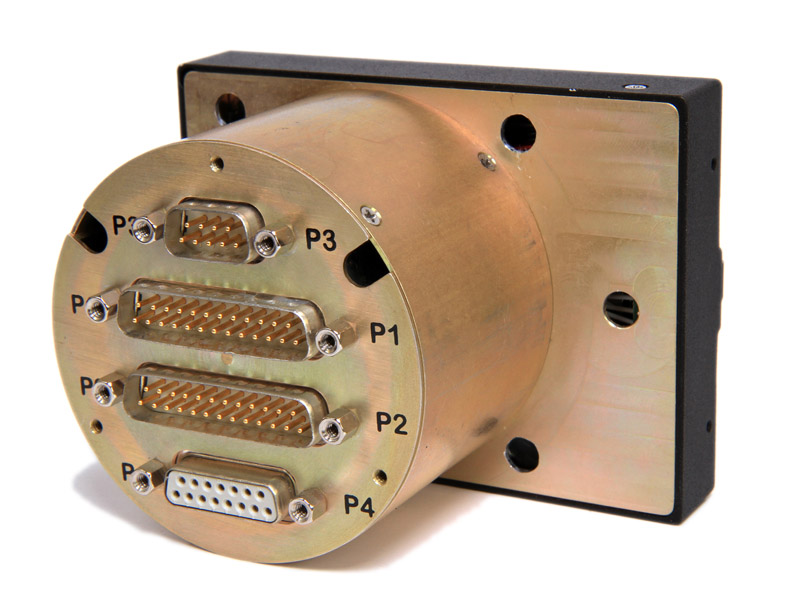

  • Fits a standard 3.1" hole
  • Housing off center
  • Rotates 90 degrees 4 times
  • Fits the standard JPI harness
  • EDM-700/800 upgradable
  • LeanFind (tm) Performs ROP and LOP, automatically finds the first and last cylinder to peak
  • Shock cooling checked on all cylinders with an alarm on the cylinder with the highest cooling rate
  • Voltage, for alternator failure, monitored for over and under voltage with alarms
  • Pilot Programmable Hi & Lo alarm limits. ALL programming from front panel
  • All EDM’s TSO’d for quality
  • 3 year warranty (Electronics)
  • 1 year warranty (Probes)
  • Quick response probes, fastest accurate readings, harness and hardware
  • Data Memory, reading once every 2 to 255 seconds. To be down loaded to USB stick
  • EZPlot-1 program for downloading data and plotting data
  • USB down load port built in with memory stick
  • Full color TFT screen

  • Dimensions: 4"H x 3"W x 2"D

  • EGT probes
  • CHT probes
  • Volts
  • Shock cooling
  • LOP/ROP JPI Exclusive Leaning Mode
  • Fuel Flow (USED, Remaining, GPH, Endurance, GPS destination)
  • RPM
  • MAP
  • Oil Temperature
  • Oil Pressure
  • OAT
  • %HP (Requires: OAT, RPM, MAP, & FF)
  • Power connector
  • All required Harness
  • EZTrends
  • Data recording-100 hrs. Download USB
  • 1 GB memory stick
  • Selectable Positions for Linear gauges

Optional functions:

  • CDT
  • IAT
  • CARB Temperature
  • TIT

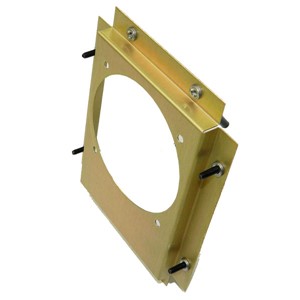

Accessories
