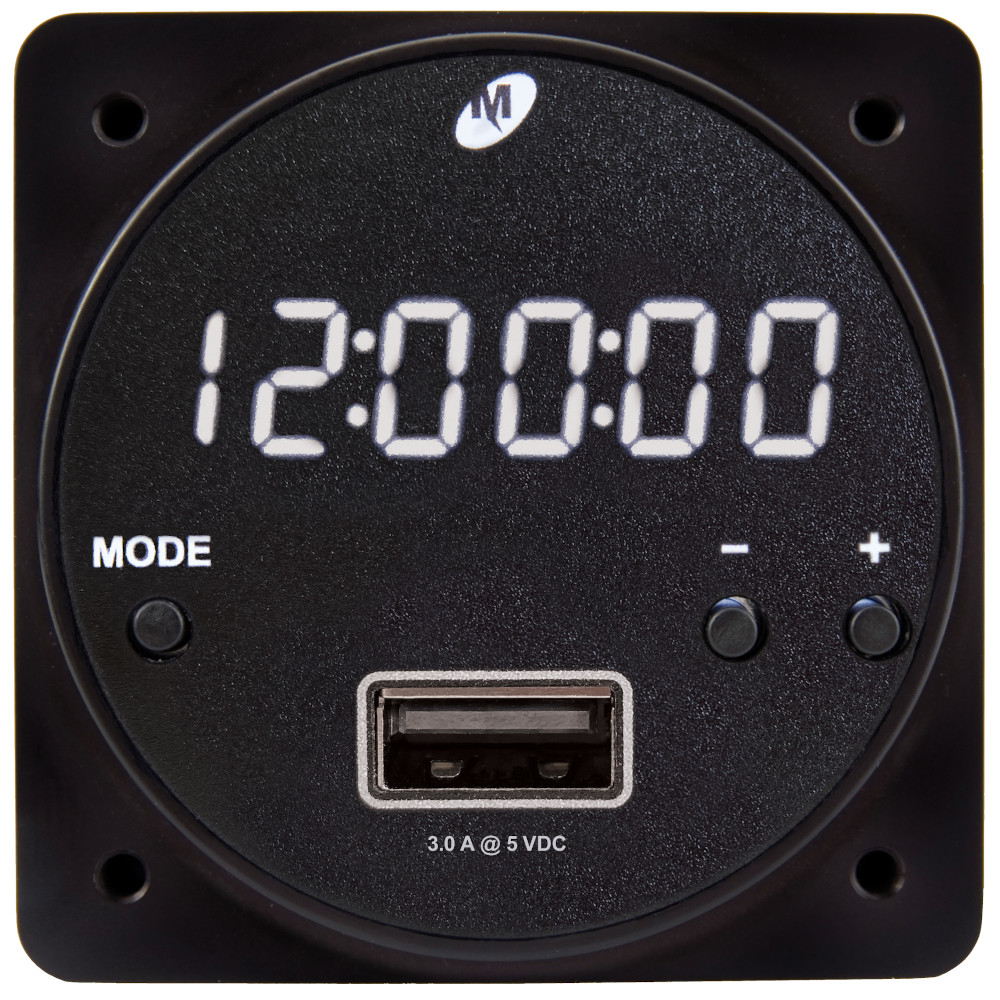

2", Digital, Local Time, UTC/Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT, Secondary Air Temp, Single USB-A, 15 W/3A out, 10-32 VDC
- Six-digit, seven-segment LED clock
- Eight modes: Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT and Secondary Air Temp
- Clock settings include 12- or 24-hour mode and seconds On or Off
- External lighting control and built-in photocell for automatic dimming
- Internal, field-replaceable battery maintains time and Flight Timer memory, without aircraft power
- Compact, 2-inch size fits standard panel cutout
- 15 watts / 3 amps USB power
- Compatible with Apple, Android and other USB devices
- Protects itself and the charging device from short circuit, power surges and over-current potential
- Designed and built in Wichita, Kansas, USA
- 2-year limited warranty
- Power Input: 10–32 VDC; 36 W maximum, 2.6A @ 14 VDC; 3.0A @ 28 VDC
- USB Power Output: 5 - 20 VDC (variable); 75 W, 6.0A
- Clock Accuracy: ±0.5 seconds in 24 hours, ± 3 minutes per year
- Weight: 5.0 oz (0.3 lbs)
- Modes: Local Time, UTC / Zulu Time, Flight Timer, Countdown Timer, Stopwatch, Volts, OAT and Secondary Air Temp
- Operating Temp: -40ºC to 70ºC (-40ºF to 158ºF)
- Altitude: 55,000 feet
- Mounting: Rear-panel mounted, (4) #6 screws
- Dimensions: 2.39 x 2.39 x 1.22 inches
- Connector Kit: MCIA P/N 9018178-1
- Case: Anodized aluminum black
- Certification: FAA TSO certified to C71, EASA ETSO certified to C71, RTCA DO-160G qualified
