“Retro-Fit” Your Cockpit with a Digital Upgrade
Upgrade your legacy vacuum driven instruments to digital precision attitude and directional gyro customizable displays.
Cutting-Edge Technology Without the Cutting

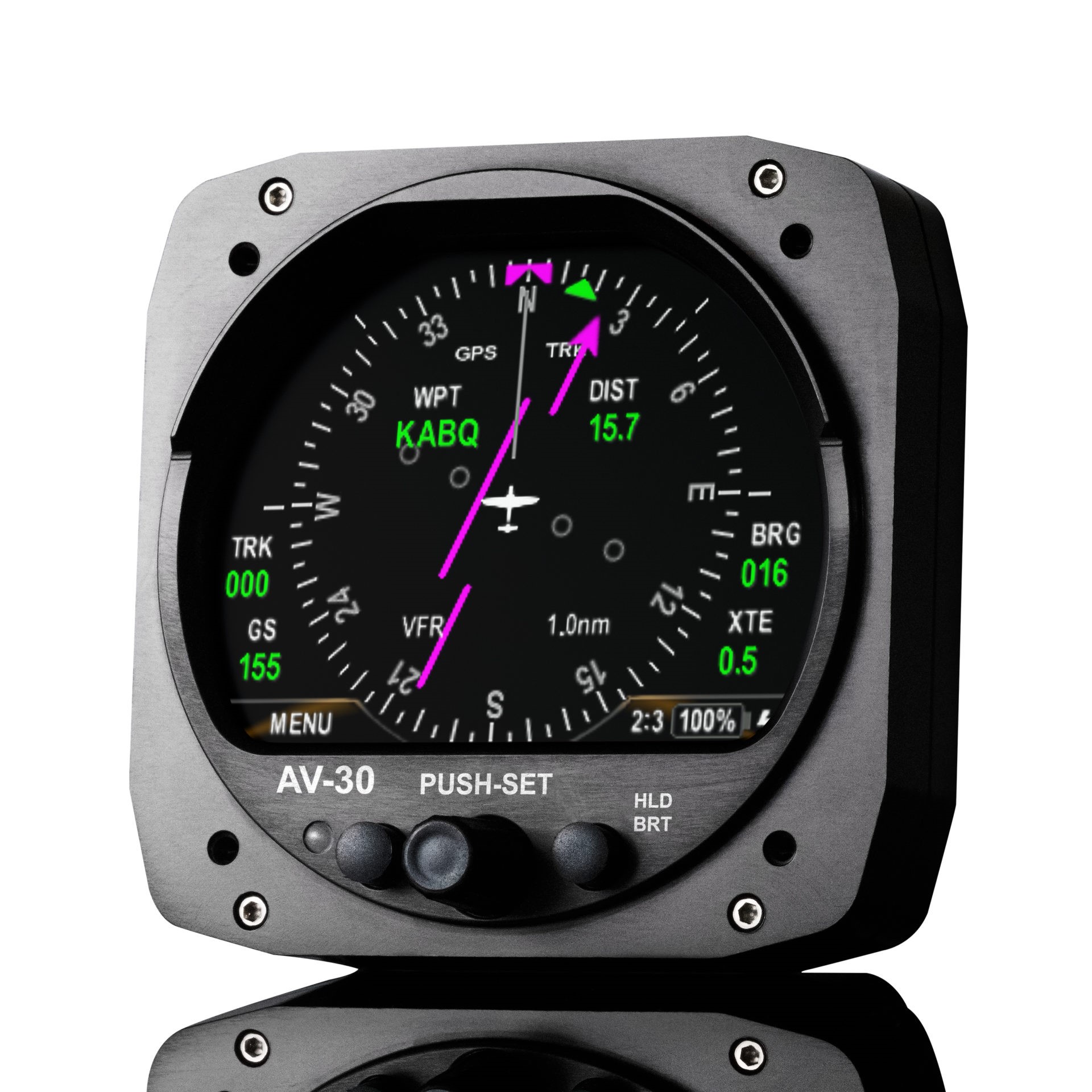

AV-30 fits in your existing 3” panel slot seamlessly. By mounting from behind, it preserves the “round dial” look, and eliminates the need for cutting or replacing your panel.
Customizable Display

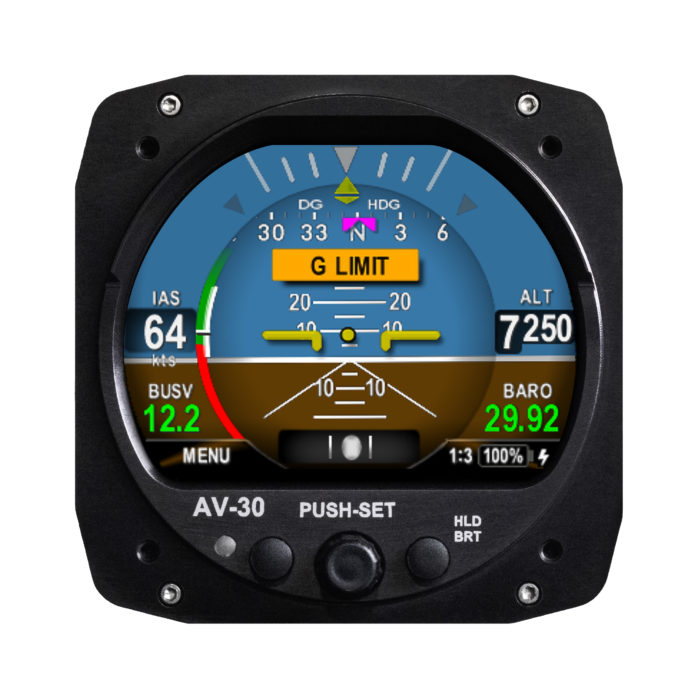

- Primary Attitude
- Primary Slip
- Primary Direction indication
- Probeless Angle of Attack
- Indicated Airspeed (KTS/MPH)
- Altitude / Vertical Trend / Alerter
- +8 / -8 G-Meter
- OAT / TAS / Density Altitude
- Bus Voltage
- GPS Navigational Data Overlay

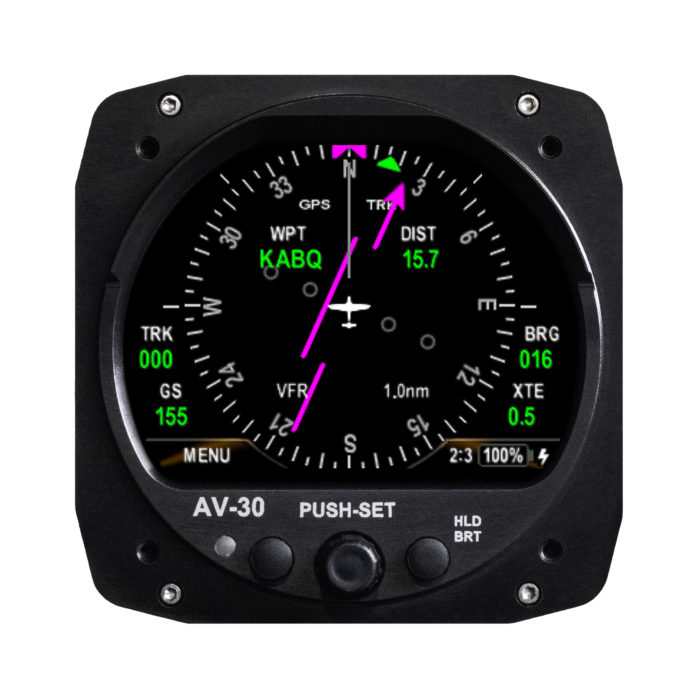

- GPS HSI / 360 Rose / Arc Map Mode
- Customizable Colors, Fonts, and Layout
- Audio Alerts (AoA, G, Roll Limits)
- 2 Hr Typical Internal Battery Operation
Avoid Stalls
The AV-30 alerts you visually and aurally if you approach a dangerous AoA. AoA is calculated by comparing the aircraft’s pitch, flight path, and G-loading.
Stay On Course
Coming in 2020, the APA-MINI Autopilot Adapter will interface heading bug to legacy STEC autopilots. Future autopilot adaptations are planned.
- Input Power Nominal: 6 Watts (0.5 Amps @ 12VDC)
- Input Power Max: 12 Watts (1.0 Amps @ 12VDC)
- Required Circuit Breaker: 2 Amp
- Operation on Battery: 2 Hours Typ @ 20°C / 30 Minutes Min @ -20C
Physical Attributes
- Mounting Configuration: 3 1/8” Round Instrument Hole
- Dimensions wo/Connector: 3.38 x 3.38 x 1.6 Inches
- Weight: 0.50 Lbs.

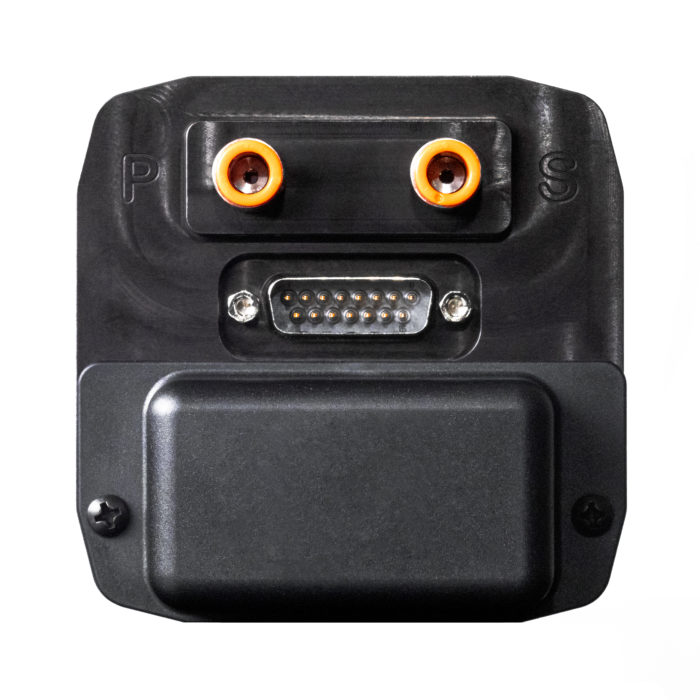

- Electrical Connector: 15 Pin Male D-Sub

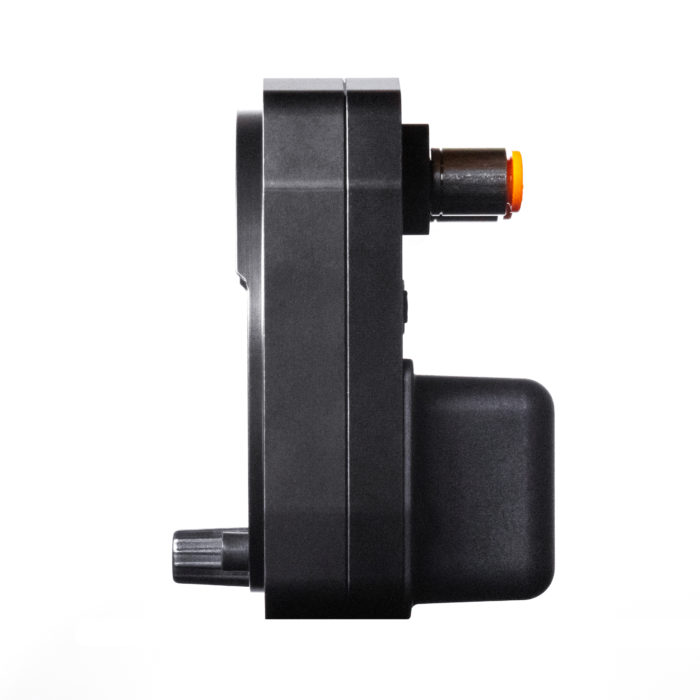

- Pneumatic Connectors: 1/4” OD Quick Connect
- Mounting: (4X) #6-32 Machine Screws
- Case Material: Billet Aluminum
Environmental
- Operating Temp: -20°C to +55°C
- Storage Temp (48 Hrs): -30°C to +80°C
- Humidity (48 Hrs): 90% RH
Display
- Diagonal Size: 3” Circular
- Contrast Ratio (Typical): 500
- Brightness (Typical): 1000 cd/m2
- Viewing Angle Left/Right: 60°
- Viewing Angle Up: 45°
- Viewing Angle Down: 10°
- Backlight Lifetime (Typical): 50,000 Hrs
- AV-30E EXP
- Includes misc hardware (15 Pin D-Sub connector, screws, pins)
