TCW Technologies provides engineered solutions to the experimental aviation community that improve the overall flying and operating experience in experimental aircraft.

IBBS (3AH)

Integrated Backup Battery System for Experimental Aircraft (3 amp-hour capacity) TCW Technologies Part #: IBBS-12V-3AH
From $245.00

The Integrated Back-up Battery System, IBBS, is an electronic system that combines a Lithium-Iron-Phosphate (Li-Fe-PO4) battery pack, a charger and switching logic in one convenient package. The IBBS provides an engineered solution to enable an endurance bus for critical loads found in aircraft.

View More

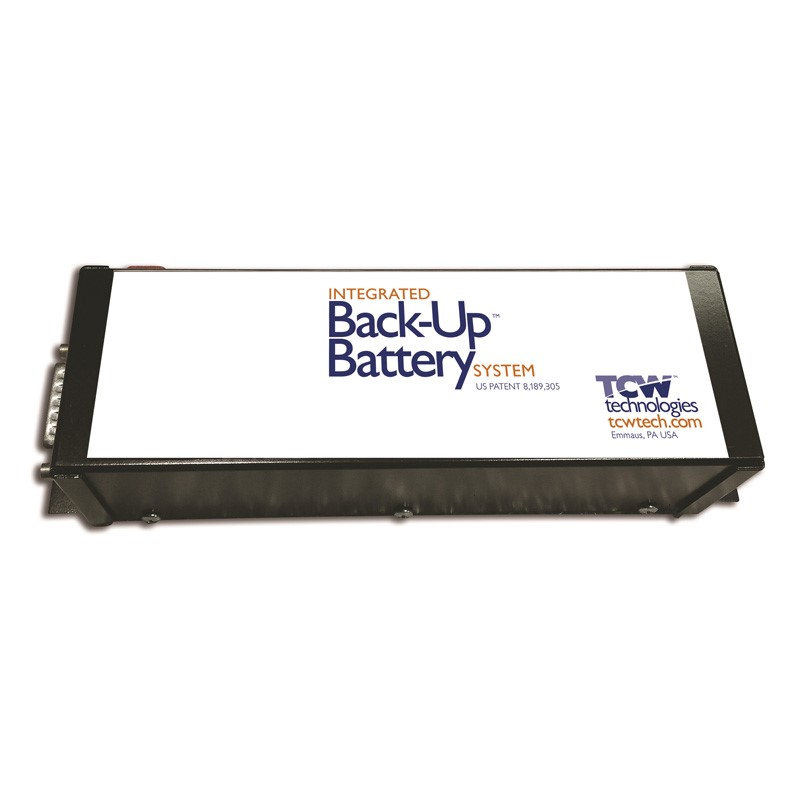

IBBS (6AH)

Integrated Backup Battery System for Experimental Aircraft (6 amp-hour capacity) TCW Technologies Part #: IBBS-12V-6AH
$405.00

The Integrated Back-up Battery System, IBBS, is an electronic system that combines a Lithium-Iron-Phosphate (Li-Fe-PO4) battery pack, a charger and switching logic in one convenient package. The IBBS provides an engineered solution to enable an endurance bus for critical loads found in aircraft.

View More

IBBS (3AH), TSO

Integrated Backup Battery System for Certified Aircraft (3 amp-hour capacity) TCW Technologies Part #: IBBS-12/24V-3AH-CRT-V
From $990.00

View More

IBBS (6AH), TSO

Integrated Backup Battery System for Certified Aircraft (6 amp-hour capacity) TCW Technologies Part #: IBBS-12V-6AH-CRT-V
From $1,275.00

The Integrated Back-up Battery System, IBBS, is an electronic system that combines a Lithium-Iron-Phosphate (Li-Fe-PO4) battery pack, a charger and switching logic in one convenient package. The IBBS provides an engineered solution to enable an endurance bus for critical loads found in aircraft.

View More

Intelligent Flap Controller

Electronic Controller TCW Technologies Part #: IFC-10
From $240.00

The Intelligent Flap Controller (IFC) is an electronic controller designed specifically to operate DC motor actuators, particularly the Van’s Aircraft series of Flap Actuators used in RV type experimental aircraft. IFC provides flap positioning presets that are accessed by a quick tap of the flap switch. IFC is very simple to wire and requires NO flap position sensor. It is fully compatible with Safety-Trim servo controllers.

View More

Safety-Trim

Intelligent Servo Controller TCW Technologies Part #: ST-x-12V
From $169.00

Designed for standard electric trim servos, the Safety-Trim Intelligent Servo Controller (Safety-Trim) is an electronic speed control system for experimental aircraft. Safety-Trim provides the directional switching function as well as the adjustable speed control function needed to drive electric trim motors with a time limited operation of the trim servo motors that reduce the possibility of run-away trim and failure to operate conditions.

View More

Airspeed Switch

Accessory/Option for TCW Safety-Trim TCW Technologies Part #: ASW-x
$49.00

Airspeed switch for use with Safety-Trim, Intelligent Flap Controller and SmartStart control module.

View More

Safety-Trim Wiring Harness

Optional Wiring Harness for TCW Safety-Trim TCW Technologies Part #: ST-x-HARN
From $69.00

Aircraft grade wiring harness for Safety-Trim. The wiring harness is 8ft long, color coded and utilizes mil-spec wire and connector terminations. The wiring harness includes the recommended ON/OFF/Reverse switch.

View More

IFC-10 Wiring Harness

Optional Wiring Harness for TCW Intelligent Flap Controller TCW Technologies Part #: IFC-HARN
$60.00

Aircraft grade wiring harness for Intelligent Flap Controller. The wiring harness is 8 ft. long, color coded, and utilizes Mil-spec wire and connector terminations.

View More

IBBS AC Plug-in Charger

Battery Charger TCW Technologies Part #: IBBS-CHRGR-LiFe
From $95.00

A Ground based charger for the IBBS 12V and 24V models. The AC plug-in charger provides convenient way to fast charge the IBBS system. It is great for winter storage of the IBBS system and ground recharging anytime. 100-240 VAC input, IBBS compatible dsub connector on output.

View More

IBBS Connector

IBBS Mating CPC Connector for Field Wiring TCW Technologies Part #: IBBS-Dsub
$19.00

Mating dsub connector field wiring. Compatible with the Integrated Battery Back-up System, Safety-Trim Intelligent Servo Controller, and Intelligent Flap Controller products.

View More

IBBS Harness

Wiring harness with CPC Connector TCW Technologies Part #: IBBS-Harn-LiFe
$85.00

10’ premade color-coded wiring harness with mating dsub connector for IBBS units.

View More
