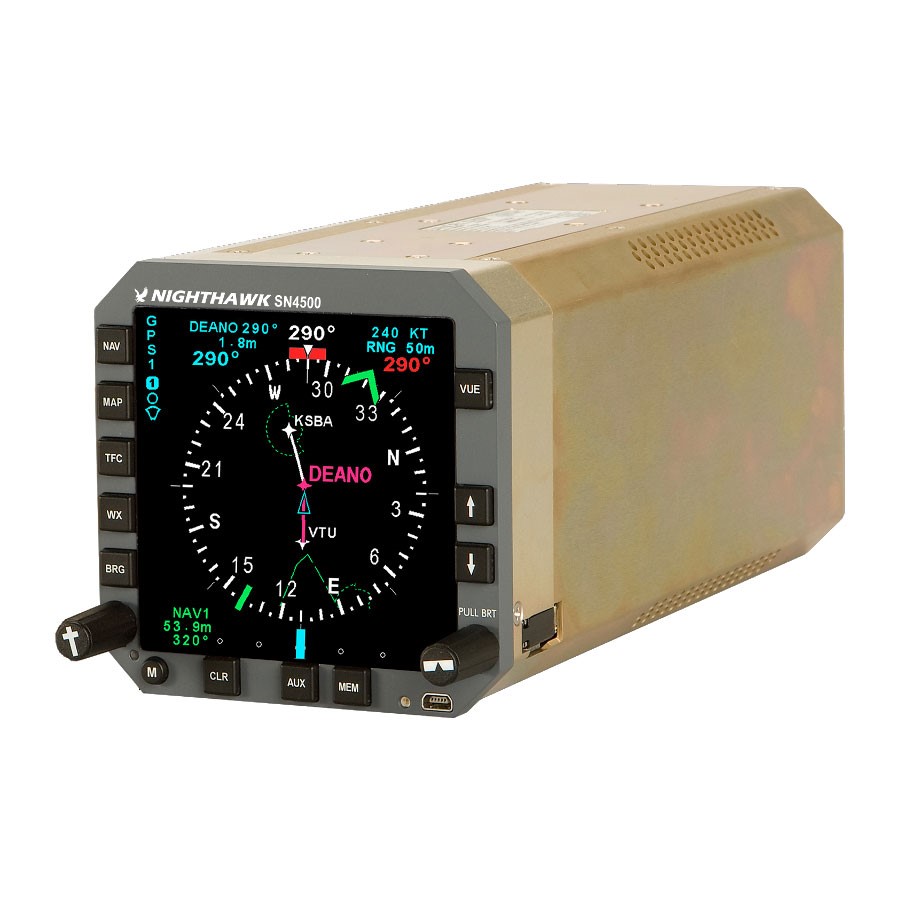

The SN4500 4×4 Primary Navigation Display upgrades your cockpit with the bright, wide-angle display technology found in the latest generation of aircraft. Boasting a high- reliability LED backlight, the SN4500’s display outperforms CRT and LCD screens, yielding unprecedented readability and ease of use. Simplifying navigation, the SN4500 also enhances safety with its standard Stormscope® and traffic. Available with night vision option and TACAN support as well.
- Full-color moving map NAV
- 180º vertical and horizontal readability in sunlight
- GPSS/Roll Steering and Reversionary Attitude software options are standard with every unit.
- Full-color moving map supporting GPS- or FMS-supplied waypoints, heading, bearing pointers for VOR and ADF, DME display and marker beacons
- Traffic display of TAS/TCAD/TCAS/ADS-B In with compatible equipment.
- Internal Jeppesen NavData™ database
- One-touch toggle between 360-degree compass and 70-degree ARC view
- Auto-slew function simplifies waypoint sequencing and Direct-To GPS navigation
- One-touch declutter
- FAA approved for primary flight display
- Designed for turbine-powered fixed-wing aircraft and helicopters
- NVIS option available
Included:
- 90169-PG - Pilot’s Guide
- 84014-B - Configuration Module
- 90169-ADB-XX - Regional Airnav Database for General Aviation/Military (Specify region: Americas, Europe/Africa, or Asia/Pacific)
- or 90169-ADB121-XX - Regional Airnav Database for Airline/Air Cargo (Specify region: Americas, Europe/Africa, or Asia/Pacific)
- 90143-RLS - Roll Steering Key
- 88114 - USB Upload cable
Not Included:
- 90169-IK - Installation kit w/installation manual
- 90169-TFC - TCAS/TAS Display Option
- 90169-WSI - WSI Datalink Weather Display Option
- 90169-ATT - Reversionary Attitude Display Option
- 90169-TCN - TACAN Display Option
