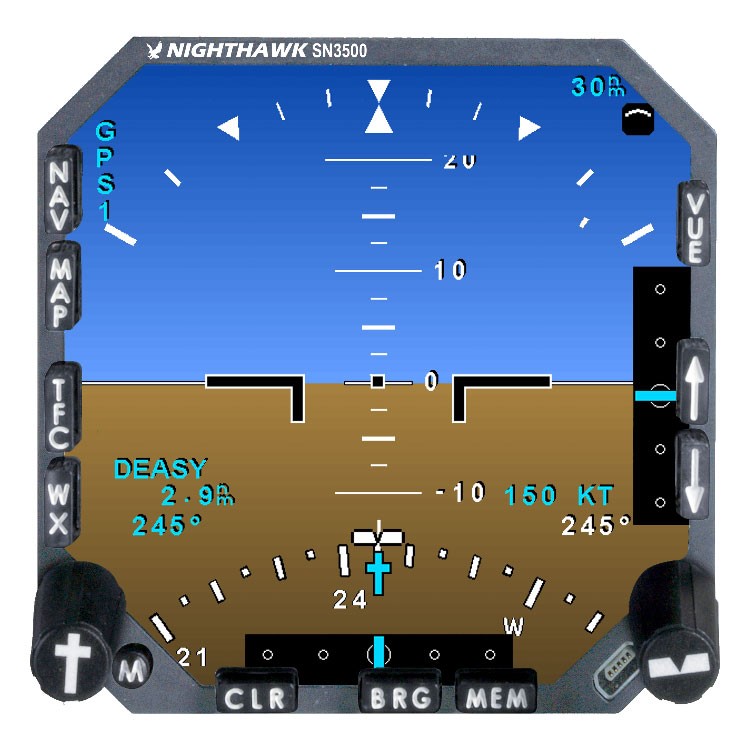

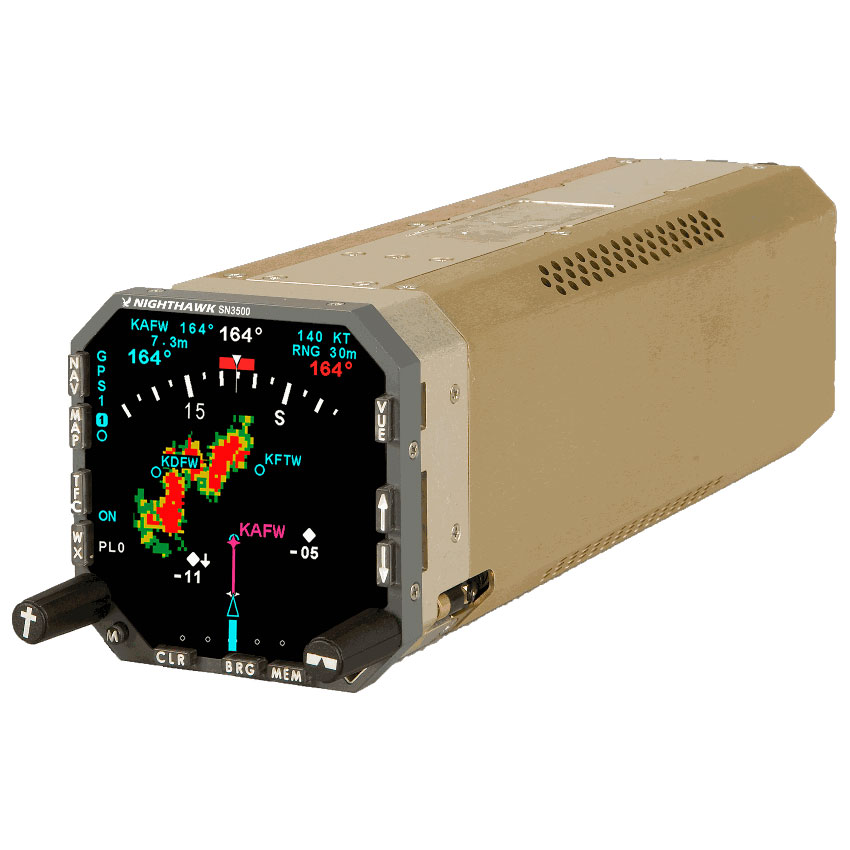

Fully TSO'd, the compact 3-ATI turbine-class SN3500 EHSI features the same bright, wide-angle display technology found in the latest generation of aircraft, and provides true 180-degree viewability in both the horizontal and vertical axes. Boasting a high-reliability backlight, the SN3500's oversized display outperforms CRT and LCD screens in terms of brightness and contrast, yielding unprecedented readability and ease of use. An expandable system, the SN3500 can be upgraded with datalink weather alerting capabilities for added functionality.
Other key features of the easy-to-install, panel-mounted SN3500 include SandelSmart™ I/O, which automatically accepts inputs from digital and analog aircraft sensors; expandability for Stormscope®, WSI weather and TCAS/TAS traffic interfaces; multiple HSI navigation modes; and a powerful, easy-to-use interface.
- Full-color moving map Nav
- Sunlight-readable display with full 360-degree viewing angle
- TSO'd and STC approved for use as a primary heading and Nav display
- Real-Time Map Technology™ for instantaneous tracking
- Rugged, vibration-resistant system certified for fixed-wing and helicopter operations
- Upgradeable EHSI with traffic and datalink weather options
- High reliability with analog and digital interface flexibility
- Inputs for GPS waypoints, DG, VOR, ADF, DME, marker beacons and Stormscope®
- Internal Jeppesen NavData™ database supplements IFR flight plans
- Drop-in 3-ATI size with 4-in. equivalent screen
Included:
- 90143-PG - Pilot’s Guide
- 90143-ADB-XX - Regional Airnav Database for General Aviation/Military (Specify region: Americas, Europe/Africa, or Asia/Pacific)
- or 90143-ADB121-XX - Regional Airnav Database for Airline/Air Cargo (Specify region: Americas, Europe/Africa, or Asia/Pacific)
- 90143-RLS - Roll Steering Key
- 88114 - USB Upload cable
- 90143-IK - Installation kit w/installation manual
- 90143-TFC - TCAS/TAS Display Option
- 90143-WSI - WSI Datalink Weather Display Option
- 90143-ATT - Reversionary Attitude Display Option
- 90143-TCN - TACAN Display Option
